Description
Designed for use with the Restrap Switch Rack. Buy additional axles to allow you to swap the Switch Rack quickly between bikes.
Which axle do you need?
All Switch Racks come with an axle supplied. This is designed to replace the one current axle. It is compatible with 142mm and 148mm (boost) spacing and comes supplied with spacers to tune fit.
It is imperative to use the correct thread pitch for your frame
To determine the correct thread pitch, remove your current axle. Many have the thread pitch printed on the axle. It will be either 1mm, 1.5mm or 1.75mm
If it is not printed on the axle, you will need a ruler. Count Restrap's ten threads from the end of the axle and measure the distance. If it is 1cm, you have a 1mm thread pitch. 1.5cm = 1.5mm thread pitch, 1.75cm = 1.75mm.
If you are still unsure, check with your frame manufacturer directly.
Fitting the Switch axle:
Remove your bike’s current thru-axle
Fit the Restrap Switch thru-axle using a 6mm allen key. Use as many 3mm washers as necessary to centralise the top bar over the rear wheel
Use the supplied axle cone spacer for compatible frames
Features:

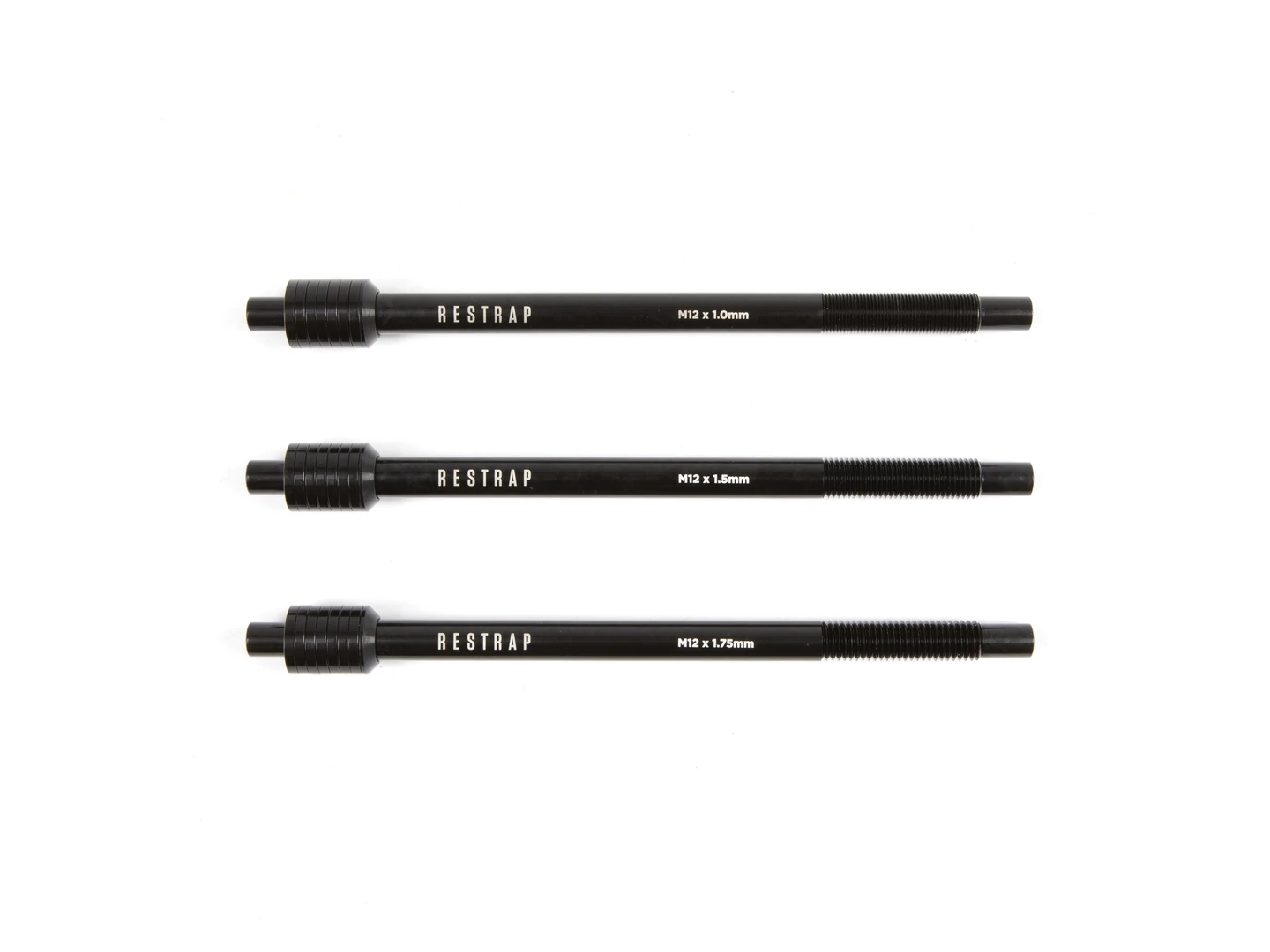

High Grade 7075-T6 aluminium axles in 1mm, 1.5mm and 1.75mm thread pitch options
Compatibility:
Only compatible with bikes with a 12mm diameter thru-axle
Note that spare axles do not ship with rack bolts
IMPORTANT – ensure axle thread pitch matches your bike. Do not attempt to fit without the correct thread pitch.
