Description

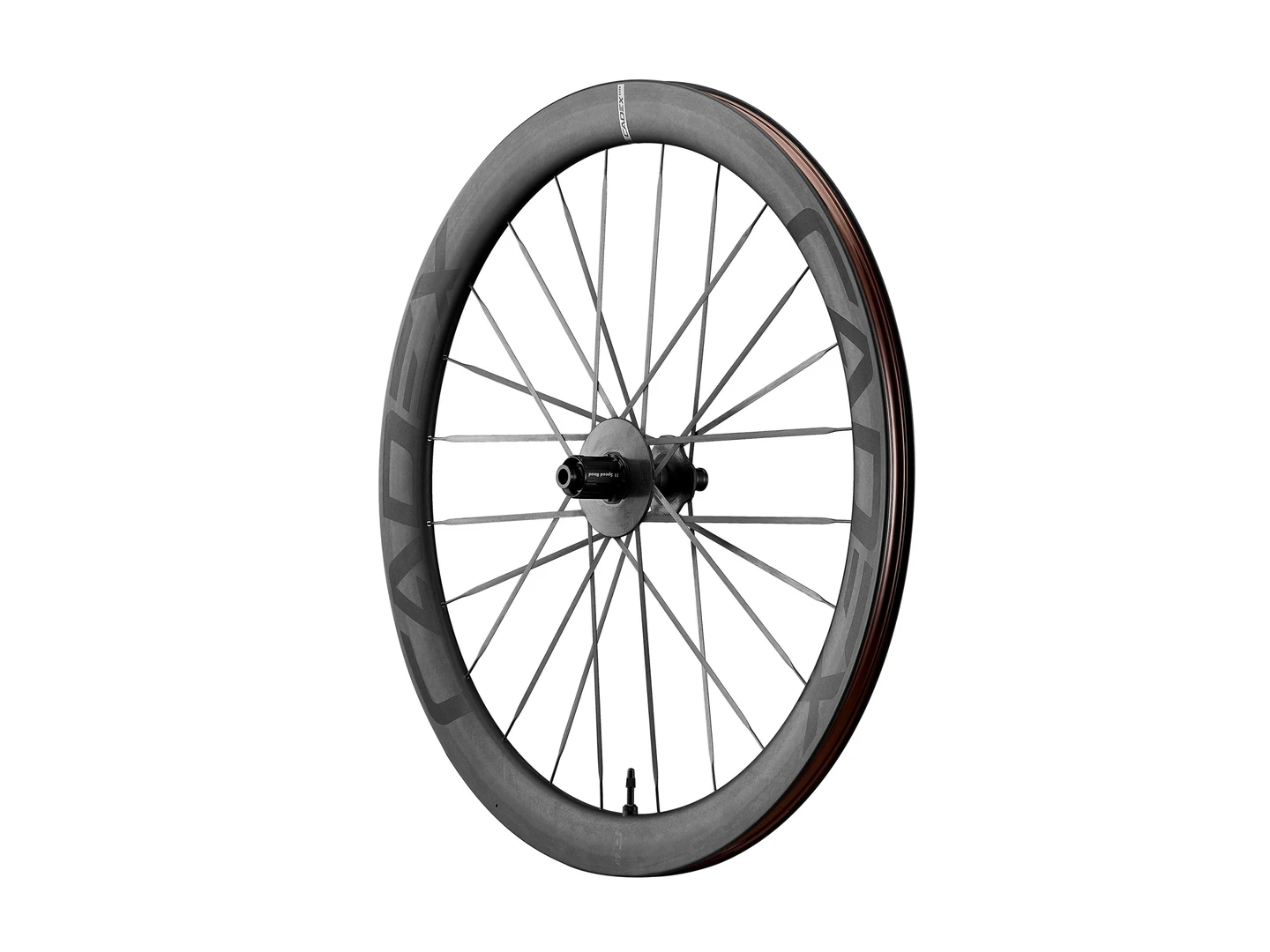

Max 50 represents the ultimate expression of CADEX performance engineering, combining exceptional aerodynamic efficiency, high stiffness, and ultralight weight. The integrated CADEX Max hub and spoke system is paired with Super Aero carbon spokes to transfer power efficiently and cut through the air with minimal drag as Dynamic Balanced Lacing delivers precise handling and an exceptionally responsive ride feel. The system is completed by a refined hookless rim design and precision-reinforced carbon lay-up that enhance efficiency, durability, and control. At just 1290g, the Max 50 doesn’t simply go faster—it raises the standard for real-world racing performance.
FEATURES:
50mm Aero Rim Profile - A deep 50mm rim profile maximizes aerodynamic efficiency,reducing drag for sustained high-speed performance in race conditions.
Integrated Max Hub And Spoke Technology - A one-piece hub, flange, spoke, and rimstructure forms a fully integrated system that minimizes drag, smooths airflow, andmaximizes real-world efficiency at speed.
Precision Reinforced Carbon Layup - High-tensile fibers are strategically placed onlywhere needed to create a strong, torsionally stiff structure while minimizing overallweight.
CADEX Super Aero Carbon Spokes - High-tensile integrated carbon spokes with hiddennipples and independent internal tensioning minimize lateral flex for efficient accelerationand responsive climbing.
Dynamic Balanced Lacing (DBL) - A wider bracing angle and balanced spoke tensionunder pedaling load result in a stiffer wheel with outstanding power transfer andhandling precision.
22.4mm Inner Width - A wide 22.4mm internal rim creates a more efficient tire profilewith an increased contact patch, improving sidewall support and confident handling atspeed.
CADEX R3-C48 Aero Hub - An aerodynamic hub design with a 48-tooth ratchet deliversfast, direct engagement for immediate power transfer during accelerations and surges.
Ratchet Wave Spring System - A wave spring design ensures consistent, balancedratchet engagement, resulting in smoother operation and improved rolling efficiency.
CADEX Hookless Rim Technology - An optimized carbon layup and hookless rim designreduce weight while improving durability and tire stability under high-speed loads.
In-Mold Carbon Graphics - CADEX logos are integrated directly into the carbon surfacefor a clean, premium finish with no decals, no added weight, and no risk of fading.
SPECIFICATIONS
Rim Material: Carbon
Rim Type: Hookless
Tubeless: CADEX Tubeless System (rim tape and valves included)
Suggested Tire Size: 700 x 25C - 700 x 32C
Rim Height: 50mm
Rim Outer Width: 30mm
Rim Inner Width 22.4mm
ETRTO: 622-22
Front Hub: CADEX R3 , Centerlock, One-piece integrated hub and spokes
Rear Hub: CADEX R3-C48, Ratchet Driver, Centerlock, One-piece integrated hub and spokes
Bearing: Ceramic
Front Axle: 100x12 Thru Axle
Rear Axle: 142x12 Thru Axle
Spokes (Front): Super Aero Carbon Spoke
Lacing (Front): DBL, 16H
Spokes (Rear): Super Aero carbon
Lacing (Rear): DBL, 24H
Nipple: Integrated titanium
Warranty: 2 years incident / 5 years warranty
Weight without Valve and Tape: (Pair) 1250g
Weight with Valve and Tape: (Pair) 1290g
Hub Compatibility: Shimano / SRAM XDR
2-YEAR WARRANTY
When you buy a new CADEX wheel through an authorized CADEX retailer, it comes with a 2-year warranty from the date of purchase. Any damage to CADEX WheelSystems caused by using non-CADEX recommended brake pads or tyres is not covered.
5-YEAR INCIDENT REPLACEMENT PROGRAM
Register your new CADEX product on the CADEX website within 8 weeks of the purchase date, and you'll be enrolled in their 5-year, 50% discount incident replacement program. If the product gets damaged, you can return it and purchase a new replacement at a 50% discount (based on the price of the original product). If the same model is no longer available, a CADEX product from the most recent lineup can be purchased with a 50% discount. (In this case there may be additional costs to make the replacement compatible for which CADEX is not responsible). This program is limited to the original owner of the product, and the customer is responsible for shipping costs.
