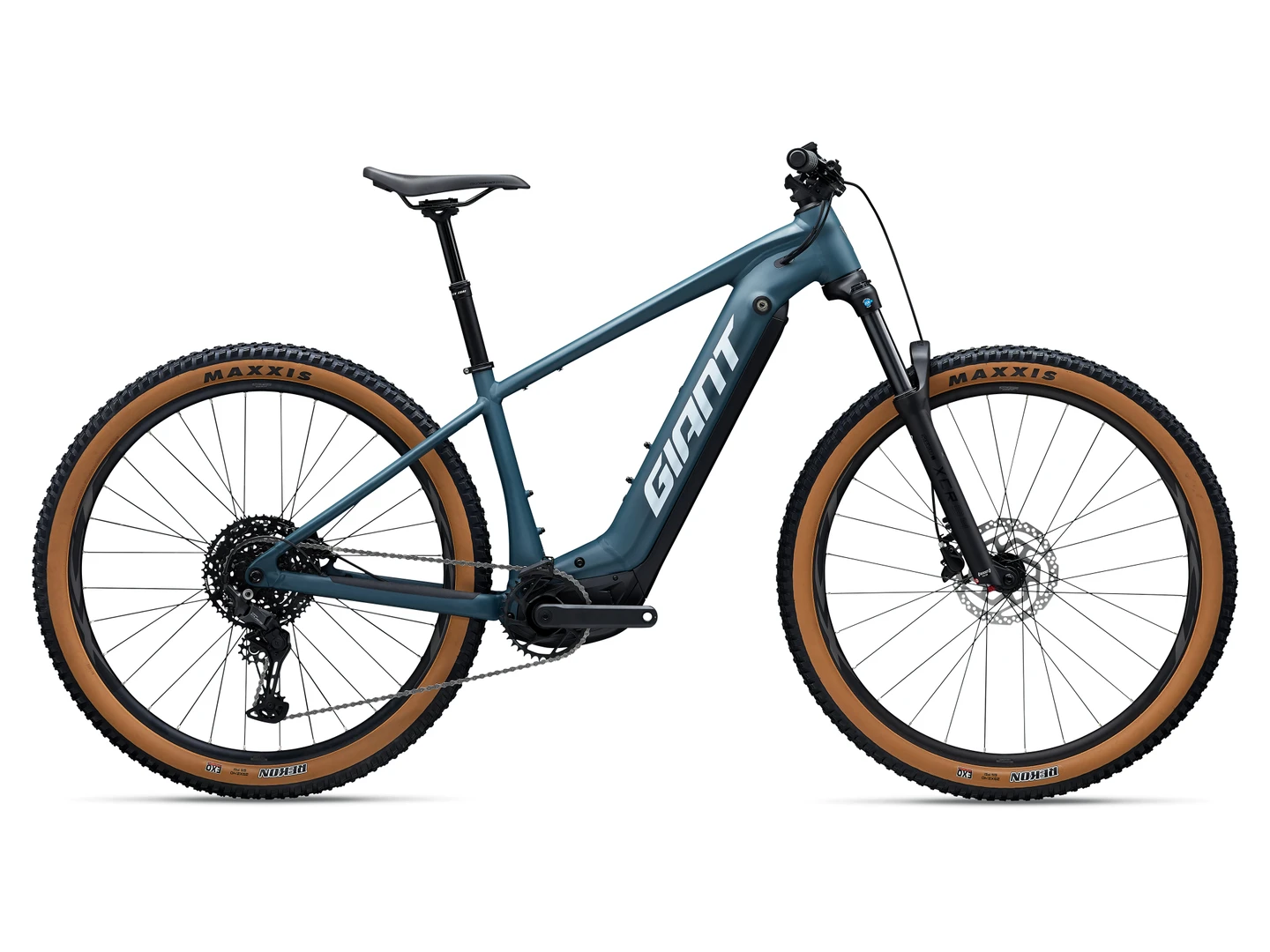

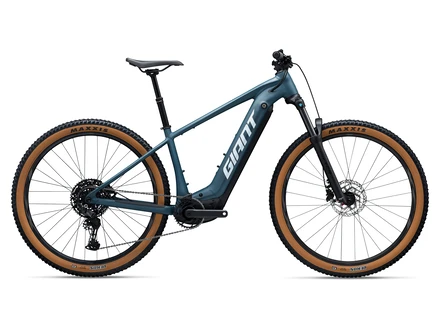

Giant Fathom E+

Trail Electric Bicycle

Web Price: £2,999.00

60 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Select a size:

Stock StatusDelivery

ETA - March

In Stock3-5 Working Days

Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Take control of the trail with this fun new hardtail e-bike. now you can climb with greater ease and ride farther-the perfect formula for a great day on the trail.

Smooth power delivery - The new SyncDrive Sport motor delivers smooth, instantaneous power with 85Nm of torque to help riders climb steep hills and extend their trail riding capabilities.

Balanced, confident handling - Lightweight aluminium frame with trail-friendly geometry, 120mm of front suspension travel, and stable 29-inch wheels with tubeless tires puts you in control even in the toughest off-road terrain.

Long lasting battery - Integrated EnergyPak Smart with 750Wh of capacity is easy to charge up to 80 percent in 2.5 hours with our 4A Fast Charger.

Ride Further, With Confidence. - When you choose a Giant E-bike, you’re not just buying a bike but investing in every ride to come. Giant believe that should come with lasting peace of mind.. That’s why their 5 year battery warranty is built around you, giving you confidence today and security for the future. Register your Giant E-bike within 30 days of purchase to activate your warranty and access exclusive ownership benefits.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

Specification

Year	2026
Colour	Deep Lake
Frame	ALUXX aluminum, Overdrive 1.125" - 1.8" head tube, 148x12mm Thru-axle, integrated KSA40 kickstand mount
Fork	SR Suntour XCR34 2CR coil boost 130mm travel 15x110mm AH axle
Rear Shock	-
Motor	Giant SyncDrive Pro 2 85Nm PedalPlus 6-Sensor technology
Control System	Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
Battery	Giant EnergyPak Smart 750Wh
Display	Giant RideControl Dash 2, high-angle visibility, full color LCD display
Charger	Giant EnergyPak smart charger 4A
Shifters	Shimano Cues
Rear Mech	Shimano Cues 10-speed
Front Mech	N/A
Bottom Bracket
Chainset	Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms
Cassette	Shimano Cues11-48T 10-speed
Chain	Shimano Linkglide CN-LG500
Brakes	Shimano MT200, hydraulic disc,180mm [F/R]
Pedals	Anti-slip Platform
Rims	Giant XCT 29 Tubeless Ready 25mm e-bike optimized
Hubs	eTracker boost alloy 6-bolt disc 15x110mm[F] 12x148mm[R]
Spokes	Stainless steel
Tyres	Maxxis Rekon 29x2.4", EXO, 60TPI
Handlebar	Giant Connect TR Riser 31.8x750mm [S], 780mm [M-XXL]
Stem	Giant Contact
Grips
Seatpost	Giant Contact Switch Core dropper seatpost, 100mm travel
Saddle	Giant Ergo Contact Trail, ESG
Headset
Extras	HMI 2.0 including E locking and Apple Find My

We are an authorised Giant dealer and supply this Giant Fathom E+ with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
S	5'1"-5'5"	1.62-1.72
M	5'7"-5'11"	1.69-1.79
L	5'10"-6'1"	1.76-1.86
XL	6'0"-6'4"	1.83-1.93

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	S	M	L	XL	XXL
Seat Tube C-T mm A	380	420	460	495	530
Horiz. Top Tube mm B	590	610	630	650	670
Seat Angle C	75.0°	75.0°	75.0°	75.0°	75.0°
Head Angle D	66.0°	66.0°	66.0°	66.0°	66.0°
Head Tube mm E	110	120	130	140	150
Chainstay mm F	470	470	470	470	470
BB Offset mm G	65	65	65	65	65
Standover mm I	730	757	750	773	776
Wheelbase mm J	1197	1219	1241	1262	1284
Reach mm K	416	434	451	469	486
Stack mm L	647	656	665	675	684
Fork Rake mm M	51	51	51	51	51
Fork Trail mm N	113.4	113.4	113.4	113.4	113.4
Stem Length mm	40	40	50	50	50
Bar Width mm	750	780	780	780	780
Crank length mm	165	165	165	165	165
Wheel size	29"	29"	29"	29"	29"
