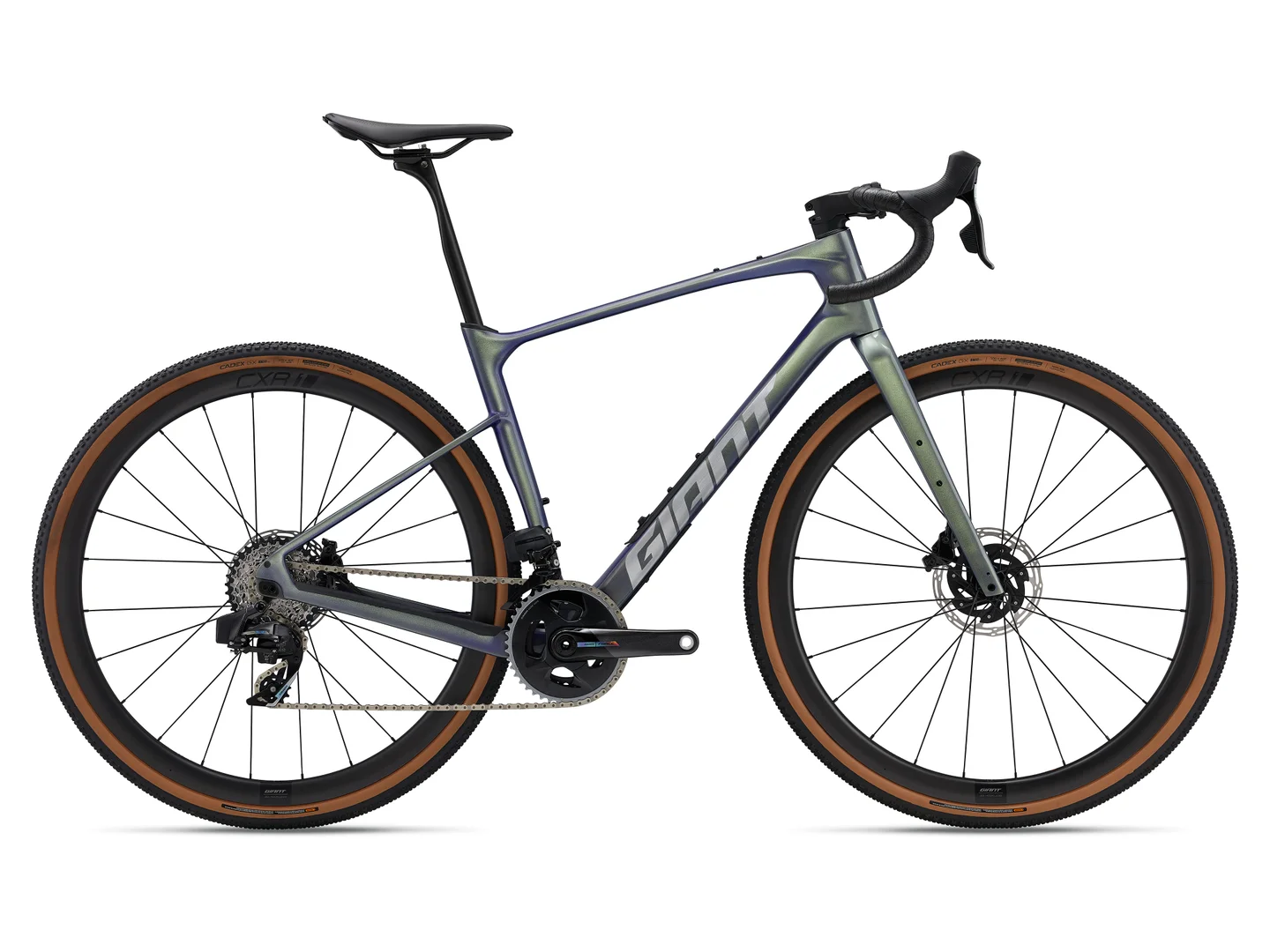

Giant Revolt Advanced Pro 0 SAD

gravel Bicycle

SALE

SRP £5599 Save 12% Web Price: £4,900.00

IMPORTANT - This model has a defect or a non-standard specification. Please check the product description.

Select a size:

StatusDelivery

In Stock3-5 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Scratch & Dent bikes (SAD) are new bicycles with minor defects.

This bicycle has a cosmetic defect:

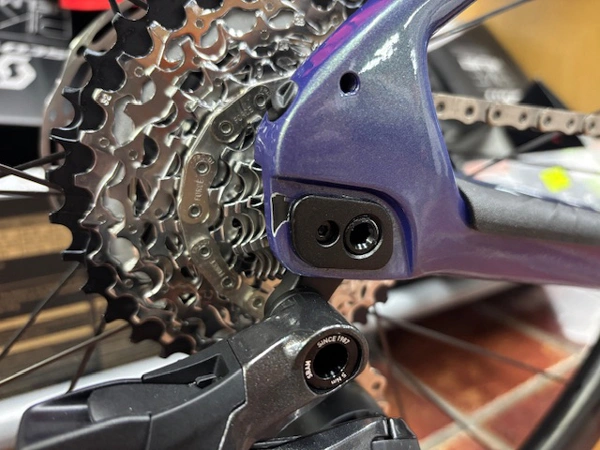

Paint chip by dropout

This bike comes complete with a full manufacturer's warranty except for any faults related to the advertised defect.

*Please note maximum recommended tyre width in this configuration is 45mm due to SRAM AXS front derailleur.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals.

Specification

Year	2025
Colour	Gloss Interstellar/Chrome
Frame	Advanced-grade composite
Fork	Advanced SL-grade composite
Rear Shock
Shifters	SRAM Force eTap AXS, 2x12
Rear Mech	SRAM Force eTap AXS
Front Mech	SRAM Force eTap AXS
Bottom Bracket	SRAM DUB, press fit
Chainset	SRAM Force D2 DUB, 30/43
Cassette	SRAM Force, 12-speed, 10x36
Chain	SRAM Force D1
Brakes	SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
Pedals	PEDALS NOT SUPPLIED
Wheelset	Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Tyres	CADEX GX, 700x40c, tubeless
Handlebar	Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem	Giant Contact AeroLight, -10 degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Grips	Stratus Lite 3.0
Seatpost	Giant D-Fuse SLR, composite
Saddle	Giant Grit SL
Headset
Extras	Tubeless prepared, in-frame storage bag

We are an authorised Giant dealer and supply this Giant Revolt Advanced Pro 0 SAD with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
S	5'3"-5'7"	1.59-1.71
M	5'7"-5'11"	1.69-1.81
ML	5'9"-6'1"	1.74-1.86
L	5'11"-6'3"	1.79-1.91
XL	6'3"-Above	1.89-Above

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Geometry - Short Chip Position

Frame Size	XS	S	M	M/L	L	XL
Seat Tube C-T mm A	430	450	470	490	510	530
Seat Tube C-T in	16.9	17.7	18.5	19.3	20.1	20.9
Horiz. Top Tube mm B	540	550	560	575	585	600
Seat Angle C	74	73.5	73.5	73	73	73
Head Angle D	70	71	71.5	72	72	72
Head Tube mm E	125	135	150	165	180	195
Chainstay mm F	425	425	425	425	425	425
BB Offset mm G	80	80	80	80	80	80
Standover mm I	724	740	757	774	791	807
Wheelbase mm J	1024	1020	1026	1031	1041	1056
Reach mm K	381	381	387	391	397	407
Stack mm L	556	570	586	602	616	630
Fork Rake mm M	50	50	50	50	50	50
Fork Trail mm N	78	72	68	65	65	65
Stem Length mm	50	60	70	80	80	90
Bar Width mm	420	420	440	440	460	460
Crank length mm	170	170	172.5	172.5	175	175
Wheel size	700C	700C	700C	700C	700C	700C

Geometry - Long Chip Position

Frame Size	XS	S	M	M/L	L	XL
Seat Tube C-T mm A	430	450	470	490	510	530
Seat Tube C-T in	16.9	17.7	18.5	19.3	20.1	20.9
Horiz. Top Tube mm B	540	550	560	575	585	600
Seat Angle C	74	73.5	73.5	73	73	73
Head Angle D	70	71	71.5	72	72	72
Head Tube mm E	125	135	150	165	180	195
Chainstay mm F	435	435	435	435	435	435
BB Offset mm G	81	81	81	81	81	81
Standover mm I	731	747	764	780	797	814
Wheelbase mm J	1034	1030	1036	1041	1051	1066
Reach mm K	381	381	387	391	397	407
Stack mm L	556	570	586	602	616	630
Fork Rake mm M	50	50	50	50	50	50
Fork Trail mm N	82	75	72	68	68	68
Stem Length mm	50	60	70	80	80	90
Bar Width mm	420	420	440	440	460	460
Crank length mm	170	170	172.5	172.5	175	175
Wheel size	700C	700C	700C	700C	700C	700C
