Large Giant Trance X Advanced E+ 1

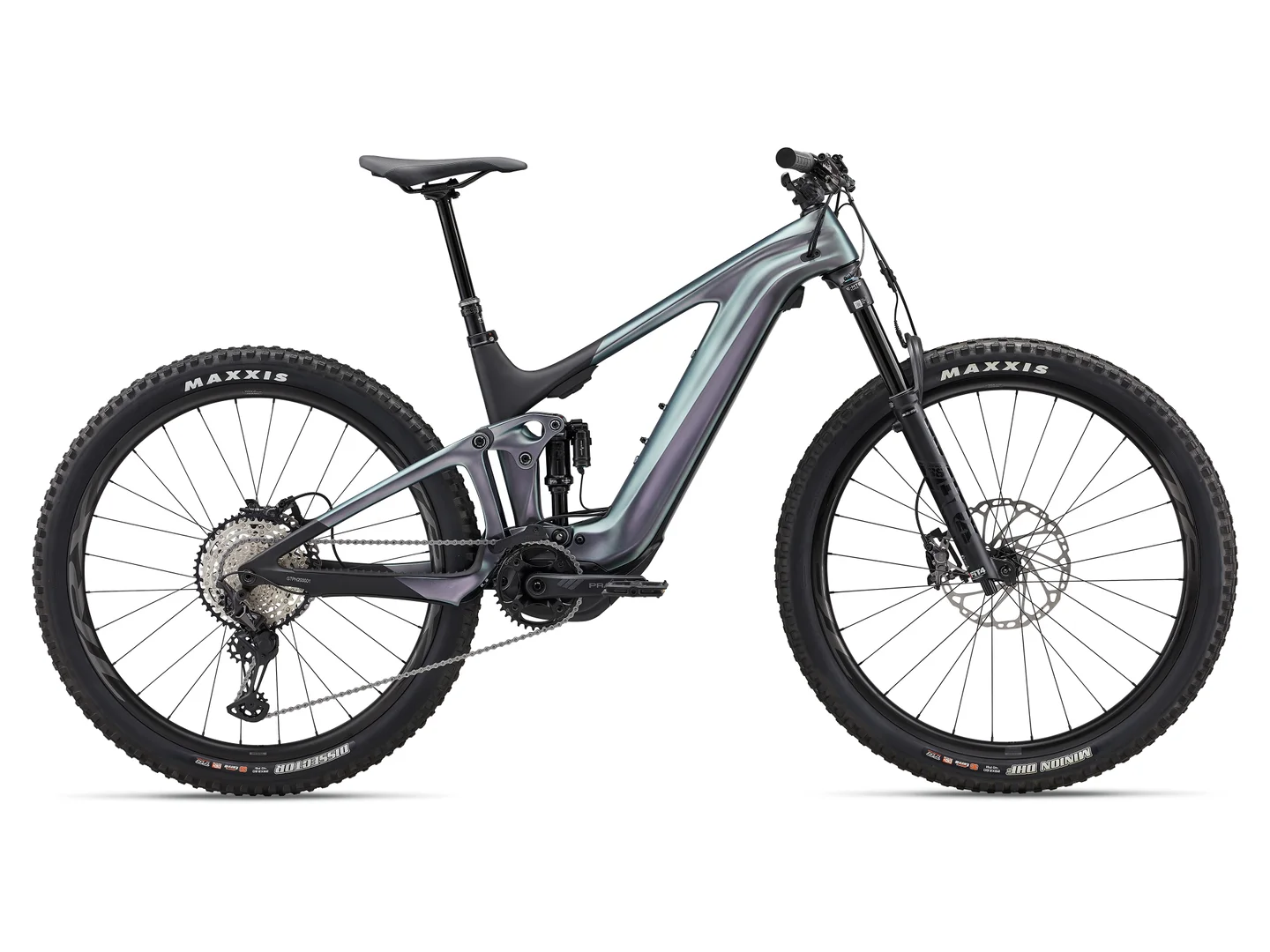

Giant Trance X Advanced E+ 1

Trail Electric Bicycle
Giant Trance X Advanced E+ 1
SALE
Click to Enlarge Image

SRP £7999 Save 30% Web Price: £5,599.00


Select a size:
Stock StatusDelivery
S
Sold Out
M
In Stock3-5 Working Days
L
In Supplier Warehouse5-7 Working Days
XL
Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.


Description

A new breed of trail bike that blends power, performance and flat-out fun. with its lightweight composite frame, plush suspension and new motor technology, you'll never want the ride to end.

Powerful and responsive - SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.

Adaptable to the terrain - Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

Clean cockpit - RideControl Go top tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

Important Note: This bicycle is supplied without pedals.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.


Specification

Year2023
FrameAdvanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
ForkFox 36 Performance Elite Live Valve E-Tuned, 29er, 150mm travel, 44mm offset, Fit4 damper, Kabolt-X 110, electronic adaptive suspension, e-bike integrated
Rear ShockFox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
MotorGiant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Control SystemGiant RideControl Ergo3, grip integrated remote
BatteryGiant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
DisplayGiant RideControl GO, frame integrated LED console Optional wireless ANT+ display
ShiftersShimano Deore XT
Rear MechShimano Deore XT, 12-speed, Shadow+
Front MechMRP HD2 co-moulded chain guide
Bottom Bracketn/a
ChainsetPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160mm, M/L: 165mm, XL:170mm)
CassetteShimano CS-M7100, 10-51T, 12-speed
ChainKMC e.12 Turbo, EcoProteq, e-bike optimised
BrakesShimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm
PedalsFlatpedal
Wheelsete-TRX Hookless Carbon Composite Clincher, 29", 30mm inner width
TyresMaxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
HandlebarGiant Contact SL 35, 35x780mm
StemGiant Contact SL 35
GripsGiant Tactal Pro-E, single lock-on
SeatpostTranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
SaddleGiant Romero, Neutral
Headset
ExtrasGiant EnergyPak 6A smart charger, 60% in 3:00h, Tubeless Setup

We are an authorised Giant dealer and supply this Giant Trance X Advanced E+ 1 with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here


Sizing

SizeRider Height (ft)Rider Height (m)
S5'4"-5'8"1.63-1.72
M5'7"-5'11"1.71-1.80
L5'10"-6'2"1.79-1.88
XL6'2"-Above1.87-Above
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Geometry key
Frame SizeS
L|H
M
L|H
L
L|H
XL
L|H
Seat Tube C-T mm A400425450475
Horiz. Top Tube mm B577 | 575607 | 605637 | 635667 | 665
Seat Angle C77.2° | 78.0°76.0° | 76.7°76.0° | 76.7°76.0° | 76.7°
Head Angle D65.7° | 66.5°65.8° | 66.5°65.8° | 66.5°65.8° | 66.5°
Head Tube mm E95100110120
Chainstay mm F473 | 473473 | 473473 | 473473 | 473
BB Offset mm G30 | 2030 | 2030 | 2030 | 20
Standover mm I740 | 746727 | 734718 | 726715 | 723
Wheelbase mm J1220 | 12211239 | 12371268 | 12691300 | 1301
Reach mm K439 | 447457 | 462482 | 489510 | 517
Stack mm L606 | 601611 | 605621 | 614630 | 624
Fork Rake mm M44444444
Fork Trail mm N117 | 122.4117 | 122.4117 | 122.4117 | 122.4
Stem Length mm40405050
Bar Width mm780780780780
Crank length mm160165165170
Wheel size29"29"29"29"
