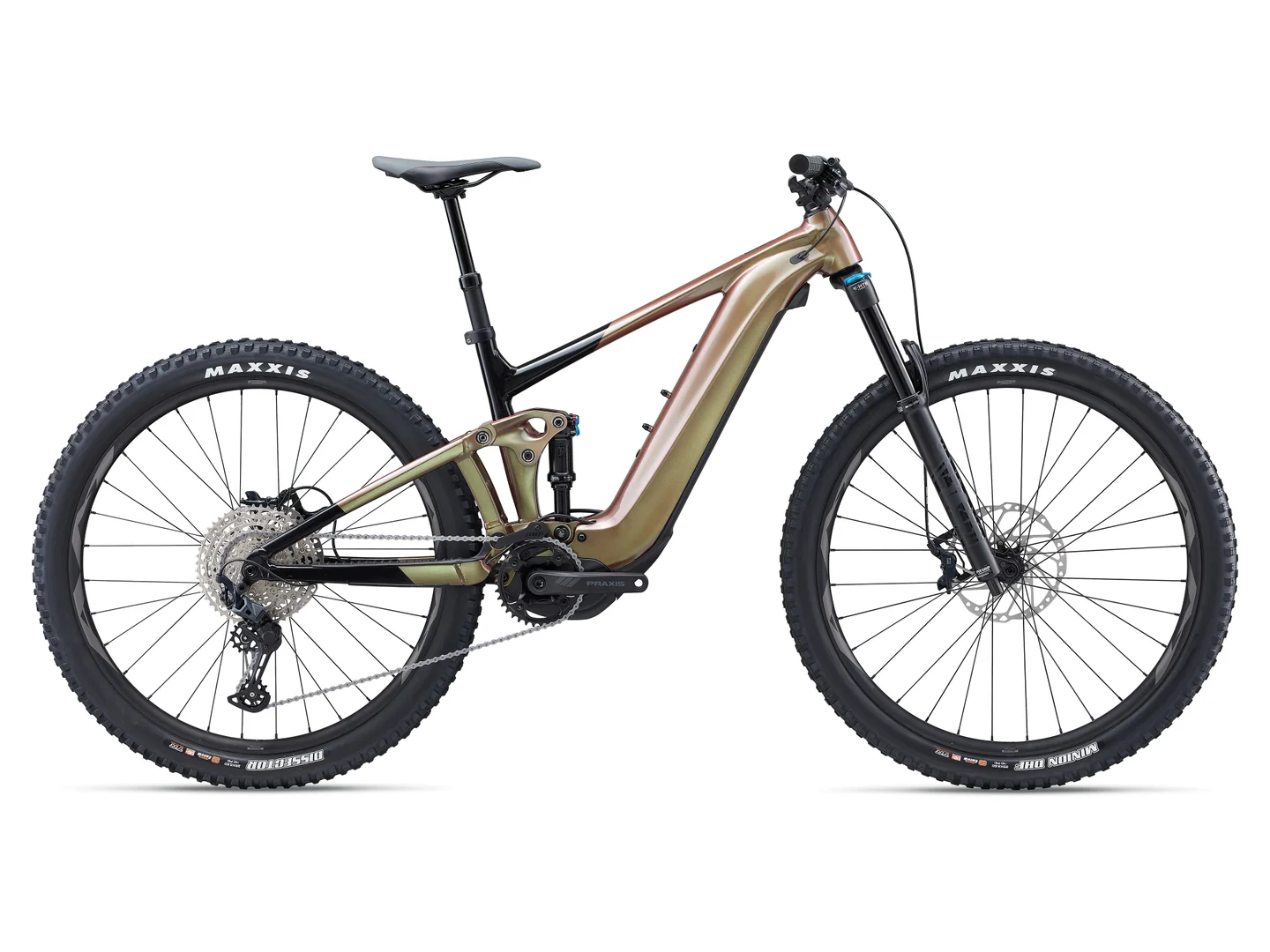

Large Giant Trance X E+ 2

Giant Trance X E+ 2

Trail Electric Bicycle
Giant Trance X E+ 2
SALE
Click to Enlarge Image

SRP £5499 Save 30% Web Price: £3,849.00


Select a size:
Stock StatusDelivery
S
In Supplier Warehouse5-7 Working Days
M
Call for Alternatives
L
Call for Alternatives
XL
In Supplier Warehouse5-7 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.


Description

Faster up the climbs, longer loops, more singletrack fun on any given day. free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding e-bike.

Smooth, powerful support - SyncDrive Pro motor delivers 85Nm of torque and tuneable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

Trail-riding control - Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.

Adaptable to the terrain - Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

Important Note: This bicycle is supplied without pedals.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.


Specification

Year2024
FrameALUXX SL-grade Aluminium, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
ForkFox 36 Float Rhythm E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Sweep adjust, Boost 110x15QR
Rear ShockFox Float Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
MotorGiant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
Control SystemGiant RideControl Ergo3, grip integrated remote. Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
BatteryGiant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
DisplayGiant RideControl GO, frame integrated LED console Optional wireless ANT+ display
ShiftersShimano SLX 1x12
Rear MechShimano SLX, 12-speed, Shadow+
Front MechMRP HD2 co-moulded chain guide
Bottom Bracketn/a
ChainsetPraxis Wave tm 36T Cold Forged 4130 premium steel chain ring 104BCD Praxis e-crank arm set (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T
CassetteShimano CS-M6100-12, 10-51T, 12-speed
ChainKMC e.12 Turbo, EcoProteq, e-bike optimised
BrakesShimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm
PedalsFlatpedal
WheelsetRims: Giant AM 29", Tubeless ready, 30mm inner width. Hubs: Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
TyresMaxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
HandlebarGiant Contact 35 Trail, 35x780mm
StemGiant Contact SL 35
GripsGiant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
SeatpostGiant Contact Switch, dropper, 30,9mm (S:125mm, M:150mm, L/XL:170mm)
SaddleGiant Romero
Headset
ExtrasGiant EnergyPak 6A smart charger, 60% in 3:00h. Tubeless kit (liquid, valves, levers, manual, tool)

We are an authorised Giant dealer and supply this Giant Trance X E+ 2 with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here


Sizing

SizeRider Height (ft)Rider Height (m)
S5'4"-5'8"1.63-1.72
M5'7"-5'11"1.71-1.80
L5'10"-6'2"1.79-1.88
XL6'2"-Above1.87-Above
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Geometry key

Geometry - Low BB Position

Frame SizeSMLXL
Seat Tube C-T mm A400425450475
Horiz. Top Tube mm B577610637667
Seat Angle C76.0°76.0°76.0°76.0°
Head Angle D65.7°65.8°65.8°65.8°
Head Tube mm E95100110120
Chainstay mm F473473473473
BB Offset mm G30303030
Standover mm I783775763775
Wheelbase mm J1205123912681300
Reach mm K439457482510
Stack mm L606611621630
Fork Rake mm M44444444
Fork Trail mm N117117117117
Stem Length mm40405050
Bar Width mm780780780780
Crank length mm160165165170
Wheel size29"29"29"29"

Geometry - High BB Position

Frame SizeSMLXL
Seat Tube C-T mm A400425450475
Horiz. Top Tube mm B575605635665
Seat Angle C76.7°76.7°76.7°76.7°
Head Angle D66.5°66.5°66.5°66.5°
Head Tube mm E95100110120
Chainstay mm F473473473473
BB Offset mm G20202020
Standover mm I789784770782
Wheelbase mm J1206123712691301
Reach mm K447462489517
Stack mm L601605614624
Fork Rake mm M44444444
Fork Trail mm N122.4122.4122.4122.4
Stem Length mm40405050
Bar Width mm780780780780
Crank length mm160165165170
Wheel size29"29"29"29"
