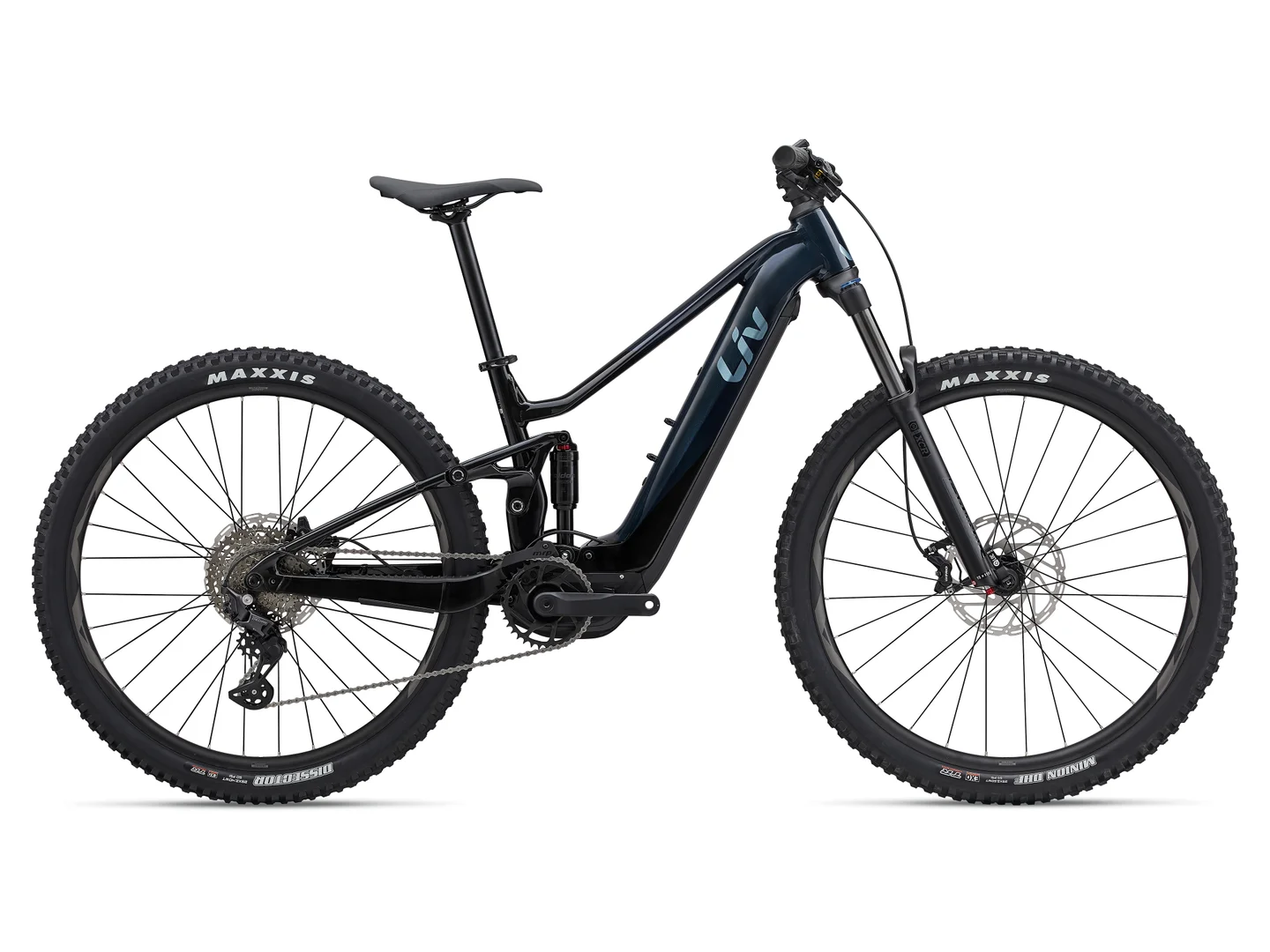

Liv Embolden E+ 2

Trail Electric Bicycle

SRP £3499 Save 24% Web Price: £2,625.00

From £91.95 per month | view details

Size Options & Purchase

Select a size:
Collect In Store*Delivery
S
ETA - NovemberETA - November
M
ETA - NovemberETA - November
L
Available*3-5 Working Days

*Collect In Store - if you would like to collect your bike in store, please use our Click & Collect payment method or call 0118 9821021 to reserve and ensure your bike is ready for your arrival.

ETAs are based on manufacturer's latest data.

Please note that we are unable to ship this Liv Embolden E+ 2 outside of the UK.

Important lead time information

Where delivery times are stated as an ETA month this is based on the latest information from the manufacturer. These dates should be treated as a guide and may be subject to change. Due to an increased strain in global supply chains, factory and shipping schedules can be easily disrupted.

Should you place a future order with us we will monitor the bike’s ETA and keep you informed of any changes.

For more detailed information please read here.

Description



Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.

Specification

Year
2023
Frame
ALUXX SL-grade aluminium, 1.5"~1.8" head tube,125mm travel FlexPoint suspension system, 'Boost' 148x12 UDH rear axle, EnergyPak Plus Range Extender Compatible
Fork
SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
Rear Shock
SR Suntour Raidon R, 190x45mm, custom tuned
Motor
SyncDrive Sport2, 75Nm, powered by Yamaha, PedalPlus 6-sensor technology
Control System
RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
Battery
EnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, EnergyPak Plus 250 range extender compatible"
Display
RideControl Dash, high-angle visibility, full color LCD display
Shifters
Shimano Deore LinkGlide
Rear Mech
Shimano Deore LinkGlide, 10-speed
Front Mech
MRP HD2 co-moulded chain guide
Bottom Bracket
n/a
Chainset
FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
Cassette
Shimano CS-LG400-10, 11-43T, 10-speed LinkGlide
Chain
Shimano, LinkGlide, CN-LG500
Brakes
Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
Pedals
Aluminium Platform
Wheelset
Rims: Giant AM 29" Tubeless ready, 30mm inner width, Hubs: Giant eTracker Boost, [F] 110x15 [R] 148x12mm
Tyres
"Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO, 60TPI [F] Maxxis Dissector 29X2.40"" Foldable WT, TLR, EXO, 60TPI [R]"
Handlebar
Giant Connect TR Riser 31.8x750mm (S), 780mm (M-L)
Stem
Giant Contact
Grips
Liv Tactal Pro Single Lock-On Grips
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Saddle
Liv sylvia E
Headset
Extras

Warranty

We are an authorised Liv dealer and supply this Liv Embolden E+ 2 with a LIFETIME manufacturer's warranty. Read Warranty Terms

Sizing

Size
Rider Height (ft)
Rider Height (m)
XS
5'0"-5'3"
1.50-1.60
S
5'2"-5'7"
1.58-1.69
M
5'5"-5'9"
1.64-1.75
L
5'7"-5'11"
1.70-1.81

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.

Geometry

Frame SizeSML
Seat Tube C-T mm395425455
Horiz. Top Tube mm575595615
Seat Angle76.5°76.0°76.0°
Head Angle66.0°66.0°66.0°
Head Tube mm105115125
Chainstay mm468468468
BB Offset mm404040
Standover mm710735760
Wheelbase mm119912151237
Reach mm426438455
Stack mm621630639
Fork Rake mm444444
Fork Trail mm121121121
Stem Length mm405060
Bar Width mm750780780
Crank length mm165165165
Wheel size29"29"29"
