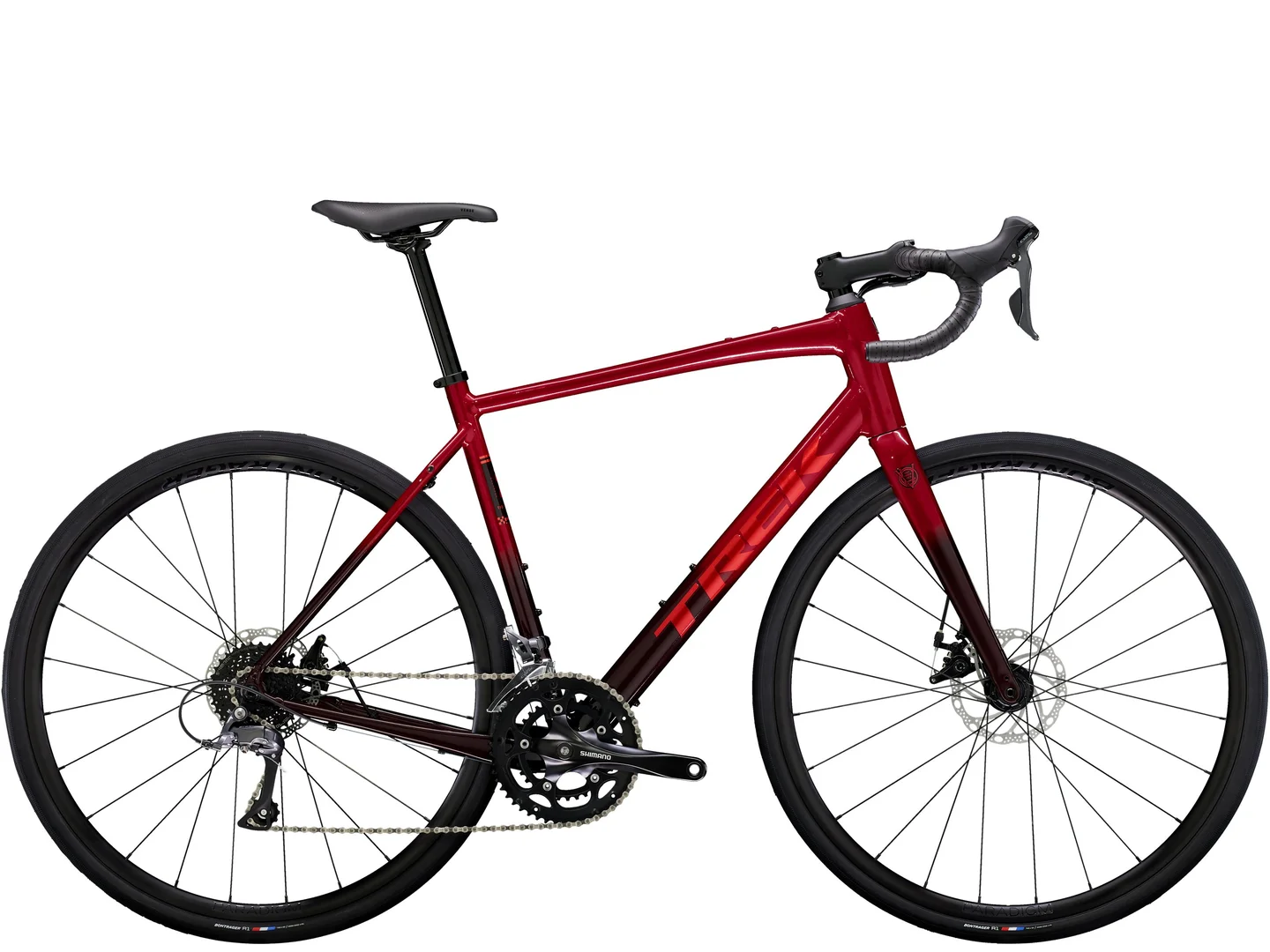

Trek Domane AL 2 Gen 4 Crimson SAD

Road Endurance Bicycle

SALE

SRP £1050 Save 10% Web Price: £945.00

IMPORTANT - This model has a defect or a non-standard specification. Please check the product description.

Select a size:

Stock StatusDelivery

In Stock3-5 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Scratch & Dent bikes (SAD) are new bicycles with minor defects.

This bicycle has a cosmetic defect:
Paint chip on non-drive side rear drop out

This bike comes complete with a full manufacturer's warranty except for any faults related to the advertised defect.

Important Note: This bicycle is supplied without pedals.

Specification

Year	Generation 4
Frame	100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
Fork	Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Rear Shock	N/A
Shifters	Shimano Tiagra 10-speed
Rear Mech	Shimano Tiagra 4700, long cage, 34T max cog
Front Mech	Shimano Tiagra 4700, 31.8 mm clamp
Bottom Bracket	Shimano RS501 BSA
Chainset	Shimano Tiagra 4700, 50/34
Cassette	Shimano 10-speed, 11-32T
Chain	Shimano Tiagra HG54, 10-speed
Brakes	Shimano Tiagra Hydraulic
Pedals	Not included
Wheelset	Rims:Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve, Hub F: Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle, Hub R: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Tyres	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Handlebar	Bontrager Comp VR-C, alloy, 31.8 mm
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Grips	Bontrager Supertack Perf tape
Seatpost	Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset
Saddle	Verse Short, steel rails, 145 mm width
Headset
Extras

We are an authorised Trek dealer and supply this Trek Domane AL 2 Gen 4 Crimson SAD with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
50	5'2"-5'5"	1.57-1.64
52	5'4"-5'7"	1.62-1.69
54	5'6"-5'9"	1.67-1.74
56	5'8"-5'11"	1.73-1.80
58	5'10"-6'1"	1.79-1.86
60	6'0"-6'3"	1.84-1.91
62	6'2"-6'5"	1.89-1.96

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	44 cm	49 cm	52 cm	54 cm	56 cm	58 cm	61 cm
Seat Tube C-T mm A	390	440	475	500	525	548	576
Seat Tube C-T in
Horiz. Top Tube mm B	507	516	530	542	554	567	586
Seat Angle C	74.6°	74.6°	74.2°	73.7°	73.3°	73.0°	72.7°
Head Angle D	70.3°	70.8°	71.3°	71.3°	71.9°	72.0°	72.1°
Head Tube mm E	95	123	145	160	175	195	235
Chainstay mm F	420	425	420	420	420	425	425
BB Offset mm G	80	80	80	80	78	78	75
Standover mm I	657	717	735	754	776	796	842
Wheelbase mm J	983	1001	1003	1010	1018	1022	1038
Reach mm K	360	368	371	374	377	380	385
Stack mm L	510	540	561	575	591	611	646
Fork Rake mm M	53	53	53	53	48	48	48
Fork Trail mm N	66	66	59	59	61	60	63
Stem Length mm	70	80	90	90	100	100	110
Bar Width mm	380	380	400	420	420	440	440
Crank length mm	165	170	170	172.5	172.5	175	175
Wheel size	700c	700c	700c	700c	700c	700c	700c
