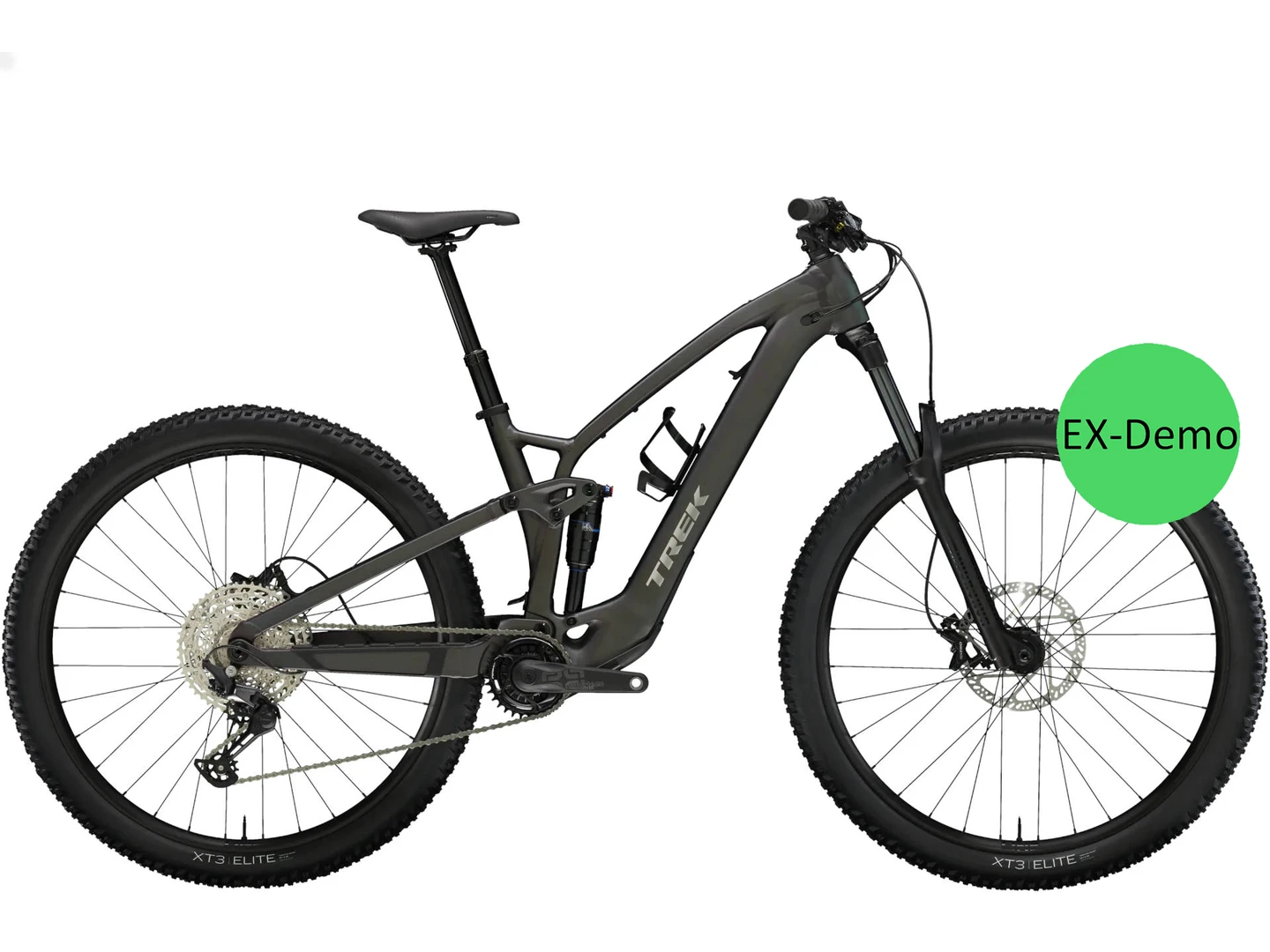

Trek Fuel EXe 5 M Ex Demo

Trail Electric Bicycle

SALE

SRP £4500 Save 44% Web Price: £2,500.00

IMPORTANT - This model has a defect or a non-standard specification. Please check the product description.

Select a size:

Stock StatusDelivery

In Stock3-5 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Scratch & Dent bikes (SAD) are new bicycles with minor defects.

This bicycle has a cosmetic defect:
Minor signs of use.

This bike comes with a six month warranty except for any faults related to the advertised defect.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

Important Note: This bicycle is supplied without pedals.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.

Specification

Year
Frame	Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork	RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel
Rear Shock	X-Fusion Pro 2, 2-position damper, 205 mm x 60 mm
Motor	TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power, 20 mph (25 km/h in Europe)
Control System	TQ LED display with Bluetooth & ANT+ connectivity
Battery	TQ 360Wh
Display	TQ LED display with Bluetooth & ANT+ connectivity
Shifters	Shimano Deore M6100, 12-speed
Rear Mech	Shimano Deore M6100, long cage
Front Mech
Bottom Bracket
Chainset	Ethirteen Espec, 32T alloy ring, 55 mm chainline
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100, 12-speed
Brakes	Tektro HD-M745 4-piston hydraulic disc
Pedals	0
Wheelset	Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Tyres	Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"
Handlebar	Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Stem	Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Grips	Bontrager XR Trail Comp, nylon lock-on
Seatpost	TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Saddle	Bontrager Arvada, steel rails, 138 mm width
Headset	FSA
Extras	Charger -TQ 4A charger

Sizing

Size	Rider Height (ft)	Rider Height (m)
S	5'0"-5'4"	1.53-1.62
M	5'3"-5'8"	1.61-1.72
ML	5'7"-5'10"	1.70-1.79
L	5'10"-6'2"	1.77-1.88
XL	6'1"-6'5"	1.86-1.96
XXL	6'5"-	1.95-1.03

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	S High	S Low	M High	M Low	L High	L Low	XL High	XL Low
Seat Tube C-T mm A	380	380	410	410	435	435	470	470
Horiz. Top Tube mm B	572	573	599	600	629	630	656	658
Seat Angle C	77.3°	76.8°	77.3°	76.8°	77.3°	76.8°	77.3°	76.8°
Head Angle D	65.3°	64.8°	65.3°	64.8°	65.3°	64.8°	65.3°	64.8°
Head Tube mm E	100	100	110	110	110	110	120	120
Chainstay mm F	438	440	438	440	438	440	438	440
BB Offset mm G	32	39	32	39	32	39	32	39
BB Height mm H	341	334	341	334	341	334	341	334
Standover mm I	732	726	733	727	739	733	759	753
Wheelbase mm J	1187	1188	1216	1217	1246	1247	1276	1276
Reach mm K	434	428	459	453	489	483	514	508
Stack mm L	616	620	625	629	625	629	634	638
Fork Rake mm M	44	44	44	44	44	44	44	44
Fork Trail mm N	124	127	124	127	124	127	124	127
Wheel size	29"	29"	29"	29"	29"	29"	29"	29"
