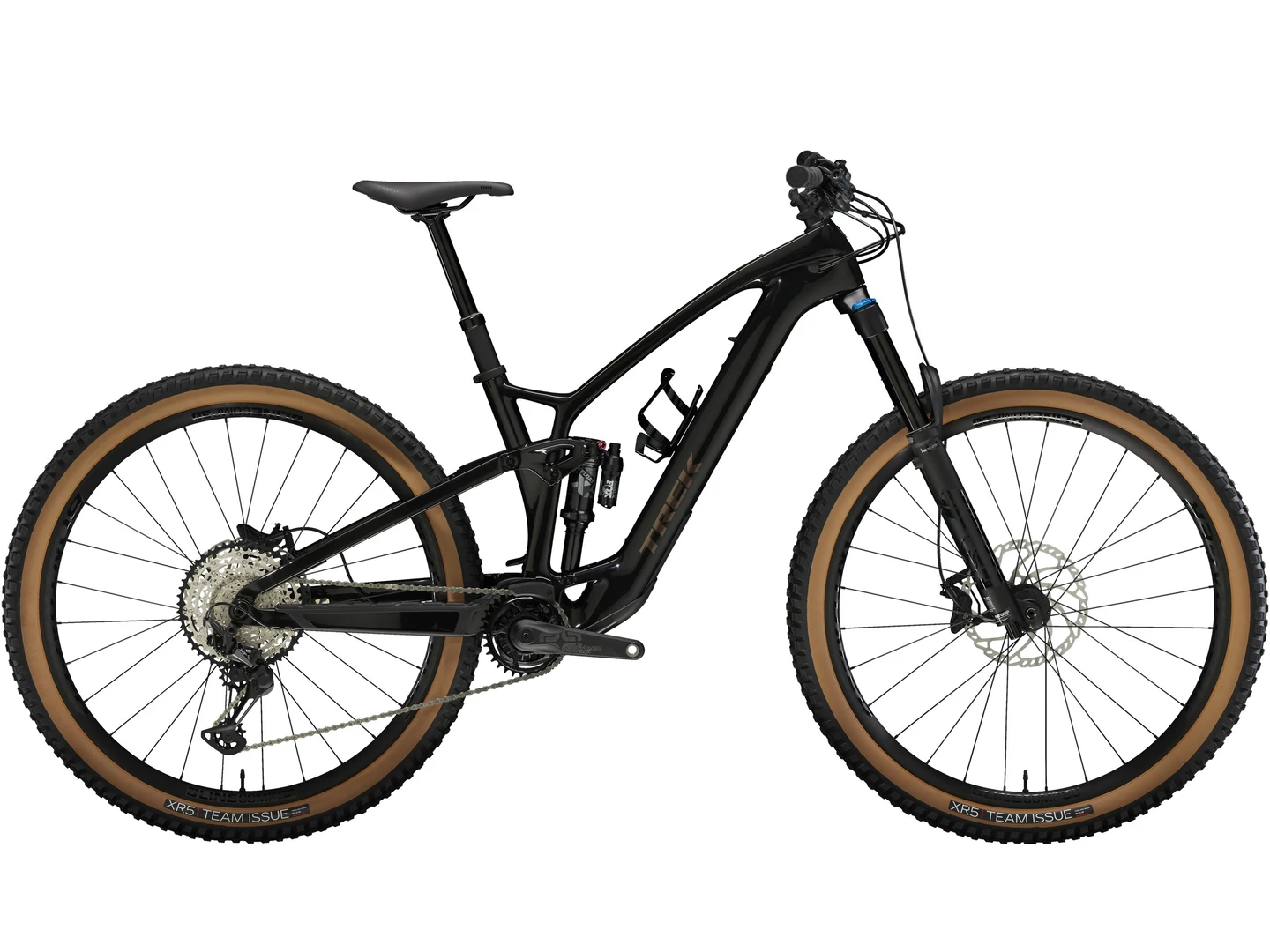

Trek Fuel EXe 9.7 Smoke

Trail Electric Bicycle

SALE

Web Price: £4,140.00

Select a size:

StatusDelivery

Call for Alternatives

In Stock3-5 Working Days

Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

The Trek Fuel EXe 9.7 redefines e-mountain biking with an entirely new motor that tucks away neatly for a ride that's light, lively and just as playful as a traditional mountain bike, with the added benefit of pedal-assist to help you crush climbs. An upgraded suspension package pairs with cherry-picked components for snappy shifting and precise modulation on the trail. All that, and a lightweight carbon chassis to keep your ride nimble and stiff with just the right amount of vibration-damping goodness for when the trail gets rowdy.

The Fuel Exe 9.7 is perfect if you want the feel of a playful trail bike, plus a little extra power on the climbs. You want upgrades where it counts the most, like a premium suspension package and the perfect blend of components. You don't want to lose out on the natural experience of mountain biking, and want a refined motor that quietly assists while you ride.

The Trek Fuel Exe 9.7 features an OCLV Mountain Carbon frame equipped with a fully encased 360Wh battery and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150 mm FOX Rhythm 36 fork with Float EVOL air spring and GRIP damper, and 140 mm FOX Performance Float X rear suspension. Plus tubeless-ready wheels and tyres, and a 12-speed drivetrain of cherry-picked Shimano SLX and XT components.

Key Points:
- You'll get a light and playful ride on descents, and just the right amount of assist on the way back up
- Its tiny-but-mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, plus it ramps up power with you for a natural ride feel
- The smart charge port, sleek integrated display and discreet controls keep the bike looking and feeling like a traditional mountain bike
- Its upgraded FOX suspension package offers you 150 mm of front- and 140 mm of rear-suspension for making quick work of technical and rowdy terrain
- You'll be able to add on an optional range extender when you want a little extra fuel in the tank for big days on the bike.

The Fuel EXe 9.7 is a playful trail ride that gives you extra fuel in the tank on climbs, and rides like a traditional bike on descents. It's packed with the space-age technology of a TQ transmission, 150 mm of buttery-smooth travel for soaking up rock gardens, and a cherry-picked drivetrain that gives you upgrades where it matters most.

Please note: This bicycle is pictured with a chain guide fitted. This is part not supplied as standard.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

Important Note: This bicycle is supplied without pedals.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.

Specification

Year	2025
Frame	OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork	Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
Rear Shock	Fox Performance Float X, 2-position damper, 205 mm x 60 mm
Motor	TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Control System
Battery	TQ 360 Wh
Display	TQ LED display with Bluetooth & ANT+ connectivity
Shifters	Shimano SLX M7100, 12-speed
Rear Mech	Shimano XT M8100, long cage
Front Mech
Bottom Bracket
Chainset	Ethirteen Espec Plus, 165 mm length
Cassette	Shimano SLX M7100, 10-51T, 12-speed
Chain	Shimano SLX M7100, 12-speed
Brakes	Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Pedals	Not included
Wheelset	F: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29", R: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
Tyres	Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Handlebar	Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
Grips	Bontrager XR Trail Elite, nylon lock-on
Seatpost	Size: S - TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm. Size: M - TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm. Size: L, XL - TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Saddle	Bontrager Arvada, hollow chromoly rails, 138 mm width
Headset
Extras	TQ 4A charger

We are an authorised Trek dealer and supply this Trek Fuel EXe 9.7 Smoke with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
S	5'0"-5'4"	1.53-1.62
M	5'3"-5'8"	1.61-1.72
ML	5'7"-5'10"	1.70-1.79
L	5'10"-6'2"	1.77-1.88
XL	6'1"-6'5"	1.86-1.96
XXL	6'5"-	1.95-1.03

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	S High	S Low	M High	M Low	L High	L Low	XL High	XL Low
Seat Tube C-T mm A	380	380	410	410	435	435	470	470
Horiz. Top Tube mm B	572	573	599	600	629	630	656	657
Seat Angle C	69.5°	69.0°	70.0°	69.5°	71.0°	70.5°	71.5°	71.0°
Head Angle D	65.5°	65.0°	65.5°	65.0°	65.5°	65.0°	65.5°	65.0°
Head Tube mm E	100	100	110	110	110	110	120	120
Chainstay mm F	438	440	438	440	438	440	438	440
BB Offset mm G	34	41	34	41	34	41	34	41
BB Height mm H	349	342	349	342	349	342	349	342
Standover mm I	746	740	746	740	746	740	766	760
Wheelbase mm J	1185	1186	1215	1215	1245	1245	1274	1275
Reach mm K	436	430	461	455	490	485	515	510
Stack mm L	614	618	623	627	623	627	632	636
Fork Rake mm M	44	44	44	44	44	44	44	44
Fork Trail mm N	126	130	126	130	126	130	126	130
Stem Length mm	40	40	50	50	50	50	50	50
Wheel size	29"	29"	29"	29"	29"	29"	29"	29"
