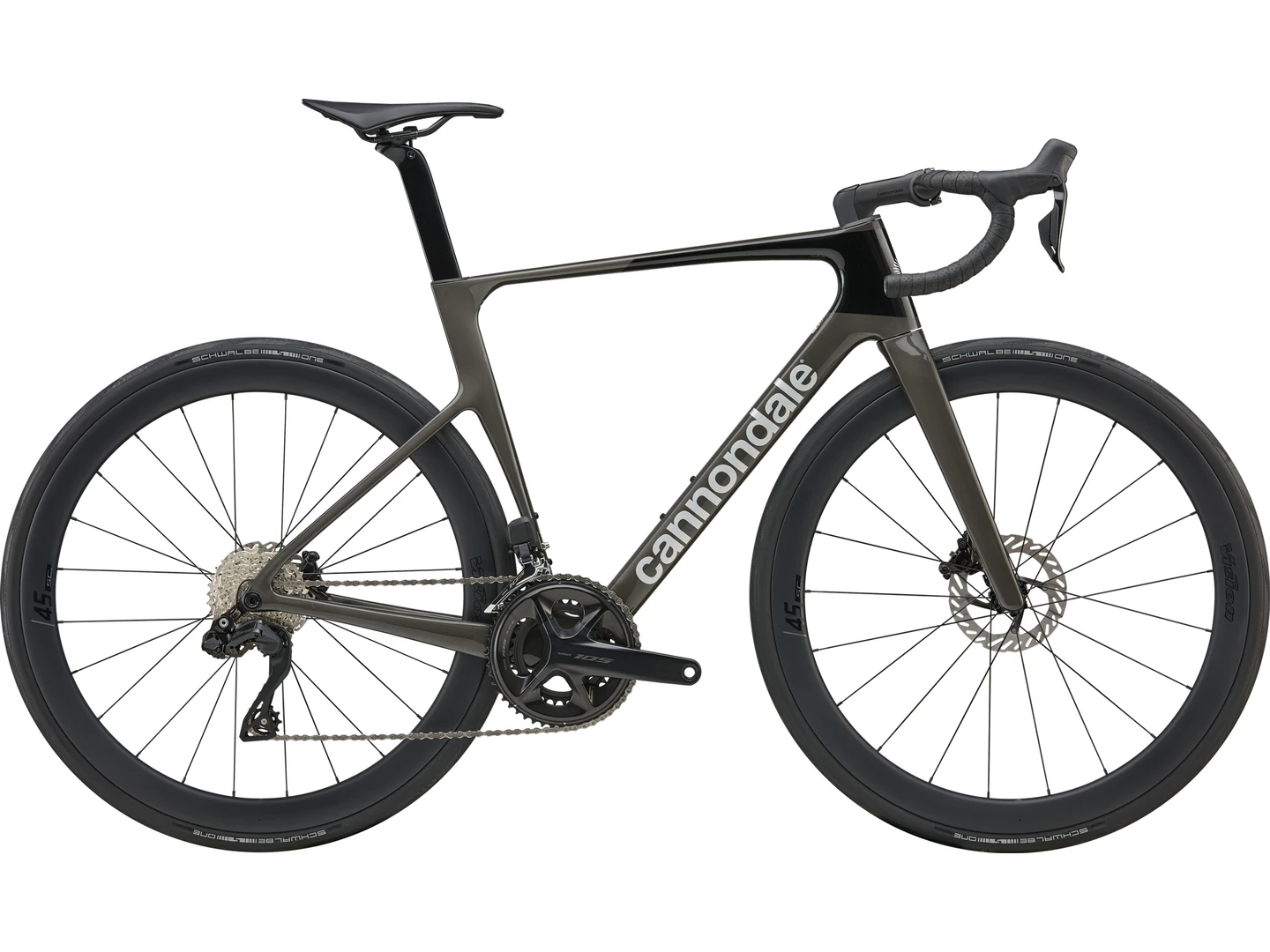

Cannondale SuperSix EVO 5 Raw

Road Race Bicycle

SALE

SRP £4495 Save 20% Web Price: £3,595.00

Select a size:

Stock StatusDelivery

Call for Alternatives

In Stock3-5 Working Days

Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Product video available. Please accept marketing cookies to watch this embedded video.

No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere.

Electronic precision meets proven race geometry. SuperSix EVO 5 combines the lightweight Gen 5 carbon frame with Shimano's 105 Di2 electronic shifting and Vision's racy SC45 carbon wheels. Vision Trimax Aero handlebars with our Conceal stem and Delta steerer keep the front end clean. A composed, stunning, and brilliantly fast platform for riders stepping up their game.

Highlights:
Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset - the ideal blend of speed, handling and comfort
Vision SC45 carbon wheelset - 45mm deep, exceptional performance value
Shimano 105 Di2 12-speed - Shimano's workhorse high-performance electronic shifting road group
Vision Trimax Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
Fizik Vento Antares R7 saddle - ergonomic comfort with pressure relieving cutout

Important Note: This bicycle is supplied without pedals.

Specification

Year	2026
Colour	Raw
Frame	SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
Fork	SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Rear Shock
Shifters	Shimano 105 Di2 R7170, wireless, 2x12-speed
Rear Mech	Shimano 105 Di2 R7150, 12-speed
Front Mech	Shimano 105 Di2 R7170
Bottom Bracket	Shimano BB-RS500, BSA 68
Chainset	Shimano 105 7100, 50/34: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
Cassette	Shimano 105 R7100, 11-34, 12-speed
Chain	Shimano 105, 12-speed
Brakes	Shimano 105 R7170 hydraulic disc, 160/160mm CL700 rotors
Pedals	Not Supplied
Rims	Vision SC45 I23, carbon, 23mm inner width, 45mm depth
Hubs	Vision, centerlock, (F) 12x100mm, (R) Vision, 12x142mm
Spokes	2:1 aero bladed direct pull
Tyres	Schwalbe One TLR, 700x28c, tubeless ready
Max. Tyre Width	32mm
Handlebar	Vision Trimax Aero: 400mm (44-56), 420mm (58-61)
Stem	Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
Grips	Cannondale Bar Tape, 3.5mm
Seatpost	Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
Saddle	Fizik Vento Antares R7, 140mm
Headset	Integrated, 1-1/8" - 1-1/4"
Extras	Tubeless valves, Shimano EC300 charging connector, Conceal Stem accessory mount

We are an authorised Cannondale dealer and supply this Cannondale SuperSix EVO 5 Raw with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
44	4'9"-5'1"	1.44-1.54
48	5'0"-5'4"	1.52-1.62
50	5'2"-5'6"	1.57-1.67
52	5'5"-5'9"	1.65-1.75
54	5'7"-5'11"	1.70-1.80
56	5'10"-6'1"	1.77-1.85
58	6'0"-6'4"	1.82-1.93
61	6'3"-6'7"	1.90-2.00

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	44	48	50	52	54	56	58	61
Seat Tube C-T mm A	400	429	448	467	490	510	532	570
Horiz. Top Tube mm B	510	522	529	536	544	560	577	600
Seat Angle C	74.5°	74.0°	74.0°	74.0°	74.0°	73.5°	73.0°	72.5°
Head Angle D	70.9°	71.2°	71.2°	71.2°	71.2°	73.0°	73.0°	73.0°
Head Tube mm E	89	101	114	130	143	154	178	209
Chainstay mm F	410	410	410	410	410	410	410	410
BB Offset mm G	74	74	74	72	72	72	69	69
BB Height mm H	269	269	269	271	271	271	274	274
Standover mm I	694	717	733	752	770	790	812	846
Wheelbase mm J	980	985	993	1002	1010	995	1007	1024
Reach mm K	373	376	379	383	387	393	398	406
Stack mm L	495	508	520	532	545	565	585	615
Fork Rake mm M	55	55	55	55	55	45	45	45
Fork Trail mm N	60	58	58	58	58	58	58	58
Wheel size	700C	700C	700C	700C	700C	700C	700C	700C
