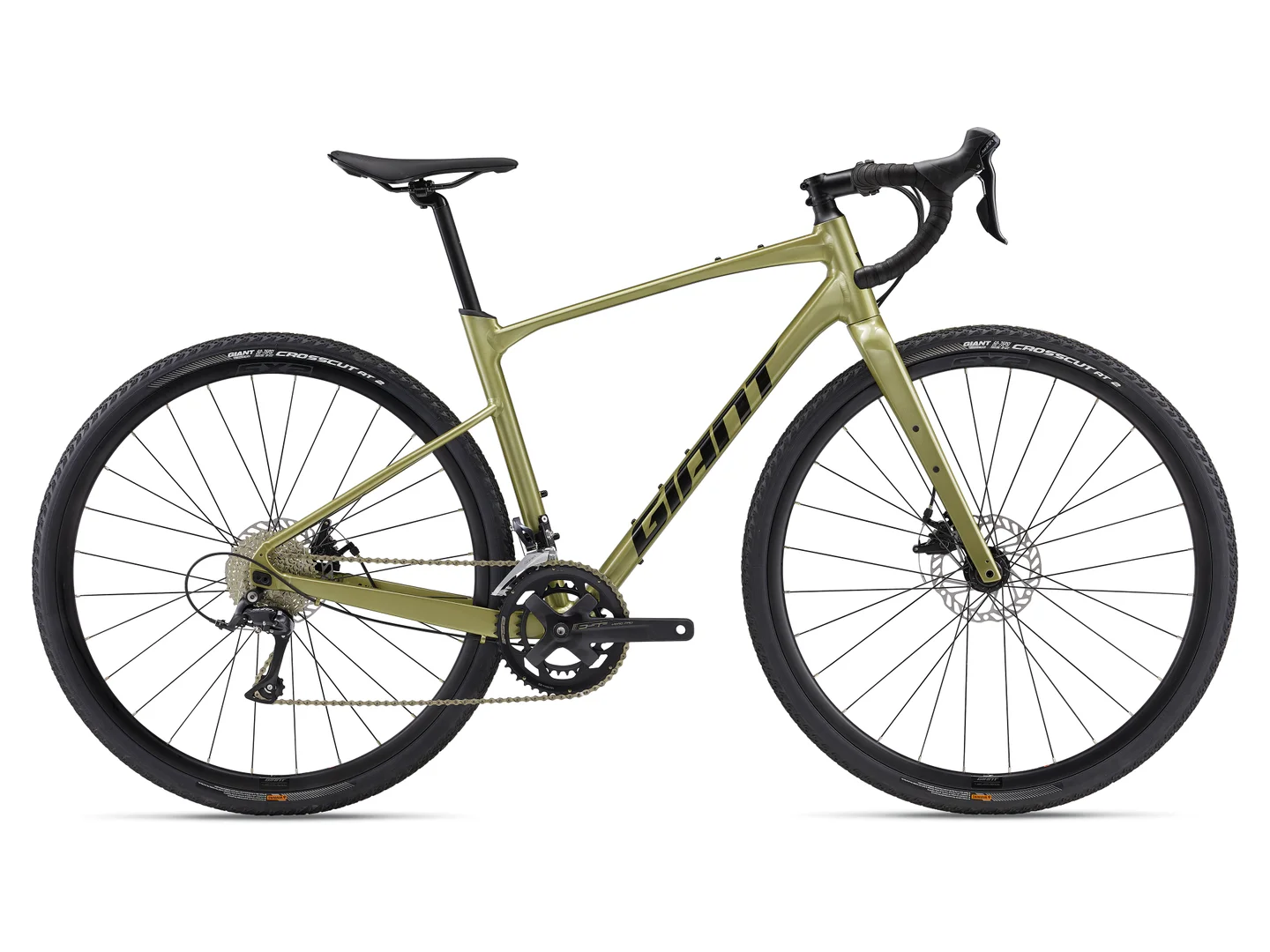

Large Giant Revolt 2 Bay Leaf

Web Price: £1,299.00

26 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Select a size:
Stock StatusDelivery
S
In Stock3-5 Working Days
M
ETA - July
ML
ETA - July
L
ETA - July
XL
Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.


Description

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives It a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

Confident handling - Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance - Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain - A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.


Specification

Year2024
Colour Gloss Bay Leaf/Panther
FrameALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rear ShockN/A
ShiftersShimano Sora, 2x9
Rear MechShimano Sora, long cage
Front MechShimano Sora
Bottom BracketCartridge
ChainsetFSA Vero Pro, 32/48
CassetteShimano HG400, 11x34
ChainKMC X9 with Missing Link
BrakesTektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
PedalsNot Supplied
WheelsetGiant S-X2 Disc wheelset, alloy, 25mm inner rim width
TyresGiant CrossCut AT 2, 700x38c, tubeless
HandlebarGiant Contact XR Ergo-Control, 31.8mm
StemGiant Sport, 8-degree
GripsCork tape with gel
SeatpostGiant D-Fuse, alloy, 14mm offset
SaddleGiant Approach
Headset
ExtrasFactory tubeless set up, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position

We are an authorised Giant dealer and supply this Giant Revolt 2 Bay Leaf with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here


Sizing

SizeRider Height (ft)Rider Height (m)
S5'3"-5'7"1.59-1.71
M5'7"-5'11"1.69-1.81
ML5'9"-6'1"1.74-1.86
L5'11"-6'3"1.79-1.91
XL6'3"-Above1.89-Above
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Geometry key

Geometry - Short Chip Position

Frame SizeSMMLLXL
Seat Tube C-T mm A450470490510530
Seat Tube C-T in17.718.519.320.120.9
Horiz. Top Tube mm B550560575585600
Seat Angle C73.5°73.5°73.0°73.0°73.0°
Head Angle D71.0°71.5°72.0°72.0°72.0°
Head Tube mm E135150165180195
Chainstay mm F430430430430430
BB Offset mm G8080808080
Standover mm I734752769786801
Wheelbase mm J10251030103510451061
Reach mm K381387391397407
Stack mm L570586602616630
Fork Rake mm M5050505050
Fork Trail mm N7268656565
Stem Length mm8090100100110
Bar Width mm420440440460460
Crank length mm170172.5172.5175175
Wheel size700x 42C700x 42C700x 42C700x 42C700x 42C

Geometry - Long Chip Position

Frame SizeSMMLLXL
Seat Tube C-T mm A450470490510530
Seat Tube C-T in17.718.519.320.120.9
Horiz. Top Tube mm B550560575585600
Seat Angle C73.5°73.5°73.0°73.0°73.0°
Head Angle D71.0°71.5°72.0°72.0°72.0°
Head Tube mm E135150165180195
Chainstay mm F440440440440440
BB Offset mm G8181818181
Standover mm I741759776793810
Wheelbase mm J10351040104510551071
Reach mm K381387391397407
Stack mm L570586602616630
Fork Rake mm M5050505050
Fork Trail mm N7572686868
Stem Length mm8090100100110
Bar Width mm420440440460460
Crank length mm170172.5172.5175175
Wheel size700x 50C700x 50C700x 50C700x 50C700x 50C
