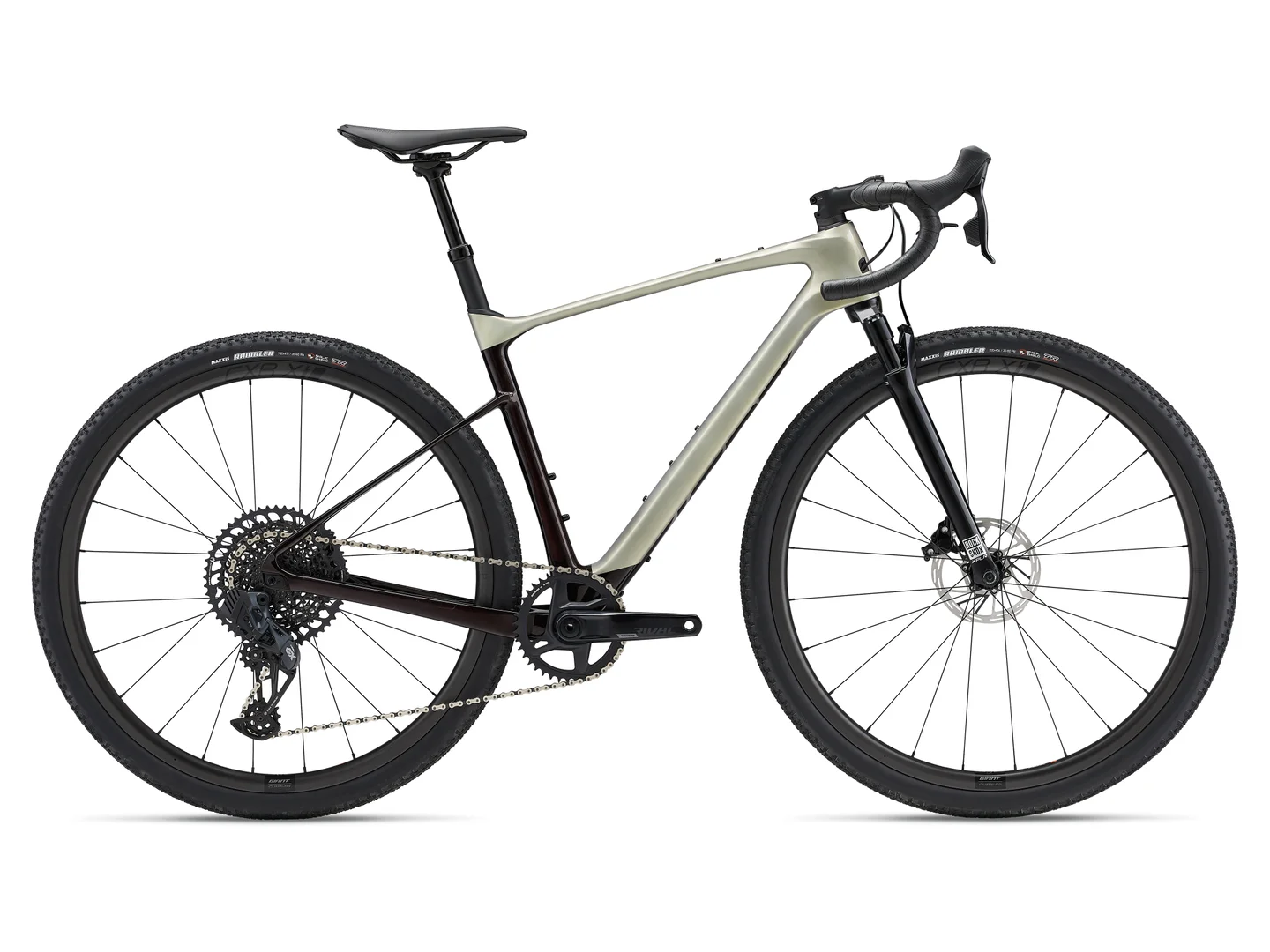

Giant Revolt X Advanced Pro 1

Gravel Bicycle

Web Price: £5,499.00

From 122.2 per month | view details
110 Podium Points™ with this bike
Podium Points Banner

Size Options & Purchase

Select a size:
Collect In Store*Delivery
S
Available*3-5 Working Days
M
Available*3-5 Working Days
ML
Available*3-5 Working Days
L
Available*3-5 Working Days
XL
ETA - JanuaryETA - January

*Collect In Store - if you would like to collect your bike in store, please use our Click & Collect payment method or call 0118 9821021 to reserve and ensure your bike is ready for your arrival.

ETAs are based on manufacturer's latest data.

Important lead time information

Where delivery times are stated as an ETA month this is based on the latest information from the manufacturer. These dates should be treated as a guide and may be subject to change. Due to an increased strain in global supply chains, factory and shipping schedules can be easily disrupted.

Should you place a future order with us we will monitor the bikes ETA and keep you informed of any changes.

For more detailed information please read here.

Description

This Giant Revolt X Advanced Pro 1 2024 is available with our legendary Podium Point free accessory scheme.



Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.

IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.

Specification

Year
Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
Fork
RockShox Rudy Ultimate XPLR, 40mm, Charger Race Day damper 12x100mm thru-axle
Rear Shock
N/A
Shifters
SRAM Rival eTap AXS, 1x12
Rear Mech
SRAM GX Eagle AXS
Front Mech
N/A
Bottom Bracket
SRAM DUB, press fit
Chainset
SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Cassette
SRAM XG-1275, 12-speed, 10x52
Chain
SRAM GX Eagle
Brakes
SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Pedals
Not Supplied
Wheelset
Giant CXR 1 X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
Tyres
Maxxis Rambler, 700x45c, tubeless
Handlebar
Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
Stem
Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
Grips
Stratus Lite 3.0
Seatpost
Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop
Saddle
Giant Approach SL
Headset
Extras
tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position

Warranty

We are an authorised Giant dealer and supply this Giant Revolt X Advanced Pro 1 with a LIFETIME manufacturer's warranty. Read Warranty Terms

Geometry

Frame SizeS
SHORT | LONG
M
SHORT | LONG
M/L
SHORT | LONG
L
SHORT | LONG
XL
SHORT | LONG
Seat Tube C-T mm450470490510530
Horiz. Top Tube mm553560575585600
Seat Angle73.5| 73.473.5| 73.473 | 72.973 | 72.973 | 72.9
Head Angle71| 70.971.5| 71.472 | 71.972 | 71.972 | 71.9
Head Tube mm100115130145160
Chainstay mm425 | 435425 | 435425 | 435425 | 435425 | 435
BB Offset mm68 | 6968 | 6968 | 6968 | 6968 | 69
Standover mm736 | 743755 | 761772 | 778790 | 796808 | 814
Wheelbase mm1024 | 10341026 | 10361031 | 10411041| 10511057 | 1067
Reach mm387389393399410
Stack mm560576592607621
Fork Rake mm4545454545
Fork Trail mm76.9 | 80.373.5 | 76.870.1 | 73.470.1 | 73.470.1 | 73.4
Stem Length mm6070808080
Bar Width mm440460460480480
Crank length mm170172.5172.5175175
Wheel size700c700c700c700c700c
