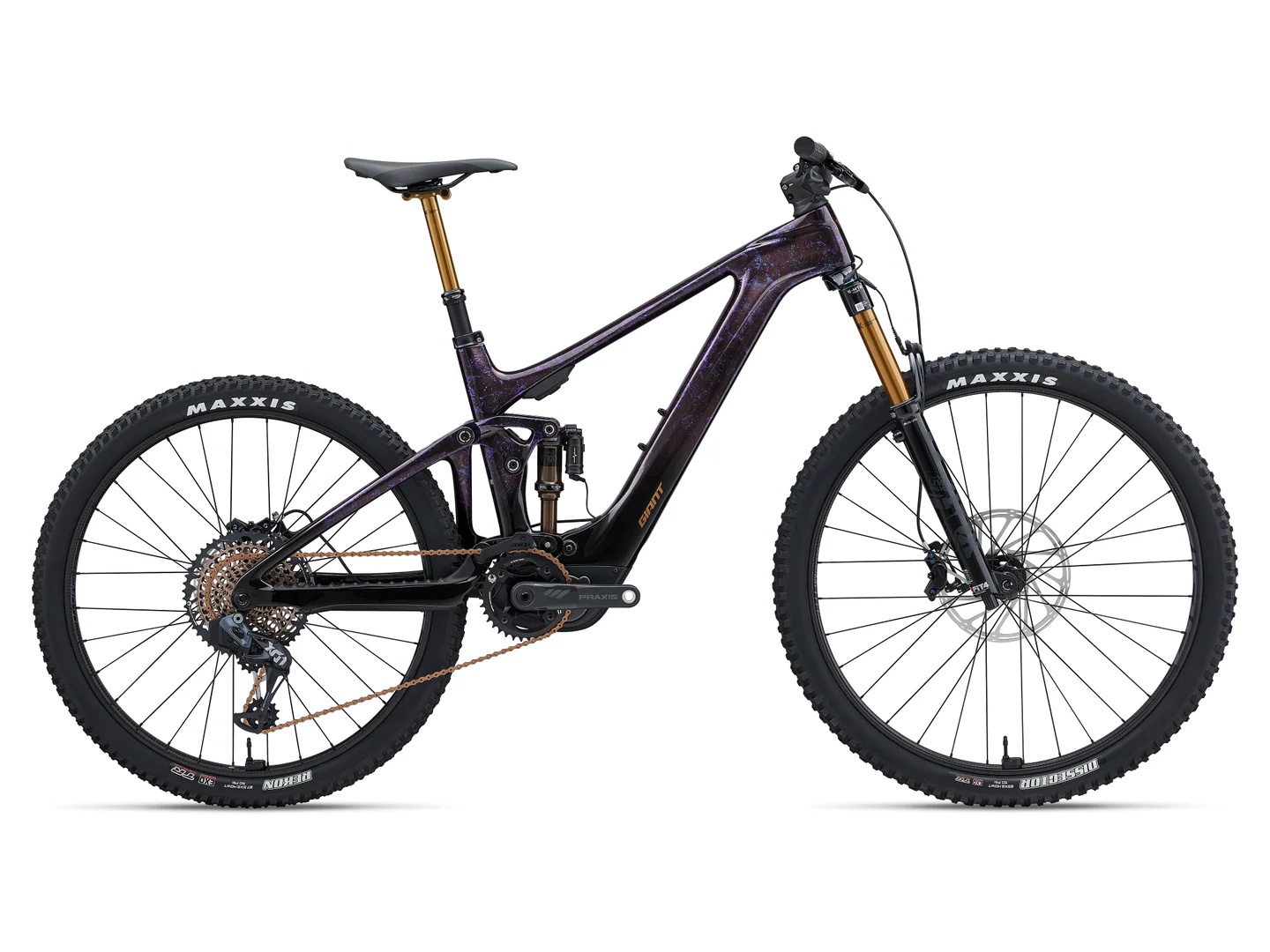

Large Giant Trance X Advanced E+ Elite 0

SRP £12999 Save 30% Web Price: £9,099.00


Select a size:
Stock StatusDelivery
S
Call for Alternatives
M
Sold Out
L
Sold Out
XL
Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.


Description

Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-suspension E-MTB. A new ultra-slim battery minimises weight so you can ride technical trails with all the agility of a traditional MTB but still have the pedal assistance when it's required.

Lighter weight - New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that's cleanly integrated with the composite frameset. This concept is designed for the rider who wants pedal assistance for the toughest sections but who wants to retain the lightweight feel and manoeuvrability of a traditional trail bike.

Advanced cockpit control - RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

More power - New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.

With an all-new composite frame features adjustable geometry with a new flip chip feature. A 27.5-inch rear wheel and 29-inch front wheel setup offers the best of both worlds: the stability and roll-over capabilities of a larger-diameter front wheel and the quick handling qualities of a shorter rear end.

The all-new Trance X Advanced E+ Elite is an eMTB for the discerning trail rider.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

Important Note: This bicycle is supplied without pedals.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.


Specification

Year2023
FrameAdvanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
ForkFox 36 Factory Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, e-bike integrated
Rear ShockFox Float Factory Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
MotorGiant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology"
Control SystemGiant RideControl Ergo3, grip integrated remote
BatteryGiant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
DisplayGiant RideControl GO, frame integrated LED console Optional wireless ANT+ display
ShiftersSRAM AXS Rocker Paddle, wireless electronic shifting
Rear MechSRAM XO1 Eagle AXS
Front MechMRP HD2 co-moulded chain guide
Bottom Bracketn/a
ChainsetPraxis Performance Carbon e-crank arms, (S:160,M/L:165, XL:170) SRAM X-SYNC Eagle 36T chain ring
CassetteSRAM XG-1299, 10-52T, 12-speed
ChainSRAM XX1 Eagle Powerlink
BrakesSRAM Code RSC, 4-piston, hydraulic disc,220mm[F] / 200mm[R]
PedalsNot Supplied
WheelsetZipp 3MOTO 29" [F] /27.5" [R], Carbon, with Quarq Tyrewiz
TyresMaxxis Dissector 29X2.40"" Foldable, TLR, EXO [F] Maxxis Rekon 27.5x2.4"" Foldable, TLR, EXO+ [R]
HandlebarGiant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm, meets DH test standard
StemGiant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, +3°/0°/-3° Adjust System
GripsGiant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL), Integrated for Ergo3 remote button left or right (optional)
SeatpostFox Transfer Factory (S:125, M:175, L:150, XL:200)
SaddleGiant Romero SL, Neutral
Headset
ExtrasGiant EnergyPak 4A smart charger, 60% in 1:45, Tubeless Setup

We are an authorised Giant dealer and supply this Giant Trance X Advanced E+ Elite 0 with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here


Sizing

SizeRider Height (ft)Rider Height (m)
S5'4"-5'8"1.63-1.72
M5'7"-5'11"1.71-1.80
L5'10"-6'2"1.79-1.88
XL6'2"-Above1.87-Above
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Geometry key
Frame SizeS
L|H
M
L|H
L
L|H
XL
L|H
Seat Tube C-T mm A400425450475
Horiz. Top Tube mm B577 | 575607 | 605636 | 634665 | 663
Seat Angle C77.2° | 78.0°76.0° | 76.7°76.0° | 76.7°76.0° | 76.7°
Head Angle D65.7° | 66.5°65.8° | 66.5°65.8° | 66.5°65.8° | 66.5°
Head Tube mm E95100115130
Chainstay mm F447 | 447447 | 447447 | 447447 | 447
BB Offset mm G10101010
Standover mm I726 | 735733 | 742732 | 741741 | 750
Wheelbase mm J1194 | 11951215 | 12121244 | 12441275 | 1275
Reach mm K439 | 447457 | 462480 | 487505 | 513
Stack mm L607 | 601611 | 605625 | 619639 | 633
Fork Rake mm M44444444
Fork Trail mm N113.1 | 108113.1 | 108113.1 | 108113.1 | 108
Stem Length mm40405050
Bar Width mm780780780780
Crank length mm160165165170
Wheel sizeR27.5" / F29"R27.5" / F29"R27.5" / F29"R27.5" / F29"
