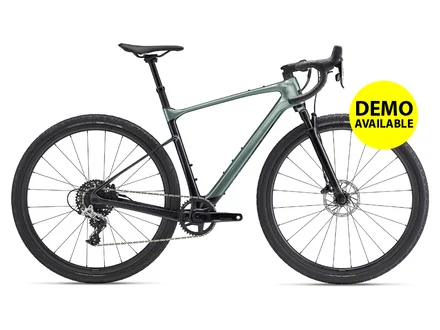

Giant Revolt X Advanced Pro 2

Gravel Bicycle

SRP £4499 Save 50% Web Price: £2,249.00

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

If you're looking for a super capable gravel bike to take on the roughest of terrain then look no further than the Giant Revolt X Advanced Pro. This Advanced composite gravel machine features a Rockshox suspension fork and engineered frame compliance to help you float through all of it with speed and control.

Key components:
Advanced composite frame
RockShox Rudy XPLR suspension fork
SRAM Rival 1x drivetrain
Giant CXR X1 Composite wheel system

The Revolt X Advanced Pro's composite frameset is designed specifically for front suspension. With 40mm of travel, the Rockshox Rudy XPLR suspension fork absorbs bumps, impacts and trail buzz so you can ride smoother and faster over rugged gravel and dirt. At the rear, lowered seatstays with smaller diameter tubes help absorb road shocks and vibrations too. Additional components to help with the ride quality include a flared Contact SL XR D-Fuse handlebar and a dropper seatpost which features 25mm of suspension travel.

The Advanced composite frame also features a flip chip on the rear dropout which adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost if you want a different setup.

The Revolt X Advanced Pro 2 features 45mm tubeless tyres mated to Giant's lightweight CXR X1 composite wheels making this machine both capable and fast.

Equipped with a great componentry specification and its amazing frame, the Revolt X Advanced Pro is ready for the gravel rider who wants an additional level of control and comfort when the going gets rough.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals.

Specification

Year	New
Colour	Gloss Misty Forest/Matte Black Diamond
Frame	Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork	RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
Rear Shock	N/A
Shifters	SRAM Rival 1, 1x11
Rear Mech	SRAM Rival 1
Front Mech	N/A
Bottom Bracket	SRAM DUB, press fit
Chainset	SRAM Rival D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Cassette	SRAM Rival, 11-speed, 11x42
Chain	SRAM PC-1130
Brakes	SRAM Rival 1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Pedals	Not supplied
Wheelset	Giant CXR X1 Carbon Disc WheelSystem
Tyres	Giant CrossCut Grip 1, 700x45c, tubeless
Handlebar	Giant Contact SL XR D-Fuse, 16-degree flare S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
Stem	Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
Grips	Stratus Lite 3.0
Seatpost	Postmodern, dropper, 30.9mm with 25mm of suspension 415mm lerngth / 100mm drop
Saddle	Giant Approach SL
Headset
Extras	Factory tubeless set up, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position

We are an authorised Giant dealer and supply this Giant Revolt X Advanced Pro 2 with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
S	5'3"-5'7"	1.59-1.71
M	5'7"-5'11"	1.69-1.81
ML	5'9"-6'1"	1.74-1.86
L	5'11"-6'3"	1.79-1.91
XL	6'3"-Above	1.89-Above

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	S SHORT \| LONG	M SHORT \| LONG	M/L SHORT \| LONG	L SHORT \| LONG	XL SHORT \| LONG
Seat Tube C-T mm A	450	470	490	510	530
Horiz. Top Tube mm B	553	560	575	585	600
Seat Angle C	73.5\| 73.4	73.5\| 73.4	73 \| 72.9	73 \| 72.9	73 \| 72.9
Head Angle D	71\| 70.9	71.5\| 71.4	72 \| 71.9	72 \| 71.9	72 \| 71.9
Head Tube mm E	100	115	130	145	160
Chainstay mm F	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435
BB Offset mm G	68 \| 69	68 \| 69	68 \| 69	68 \| 69	68 \| 69
Standover mm I	736 \| 743	755 \| 761	772 \| 778	790 \| 796	808 \| 814
Wheelbase mm J	1024 \| 1034	1026 \| 1036	1031 \| 1041	1041\| 1051	1057 \| 1067
Reach mm K	387	389	393	399	410
Stack mm L	560	576	592	607	621
Fork Rake mm M	45	45	45	45	45
Fork Trail mm N	76.9 \| 80.3	73.5 \| 76.8	70.1 \| 73.4	70.1 \| 73.4	70.1 \| 73.4
Stem Length mm	60	70	80	80	80
Bar Width mm	440	460	460	480	480
Crank length mm	170	172.5	172.5	175	175
Wheel size	700c	700c	700c	700c	700c
