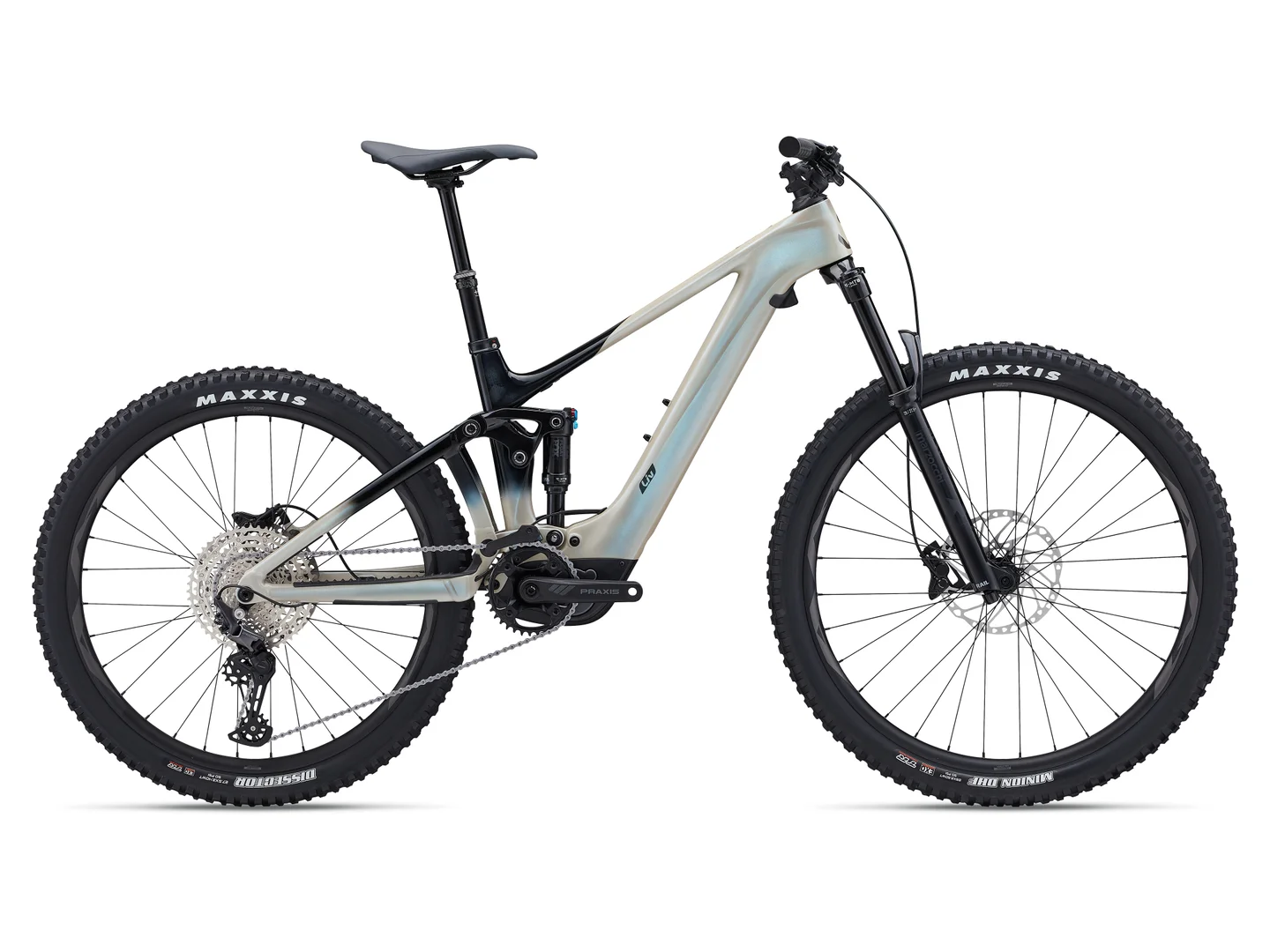

Liv Intrigue X Advanced E+ Elite 3

Trail Electric Bicycle

Web Price: £5,499.00

From £122.2 per month | view details
110 Podium Points™ with this bike
Podium Points Banner

Size Options & Purchase

Select a size:
In Store*Delivery
XS
ETA - AprilETA - April
S
Available*3-5 Working Days
M
Available*3-5 Working Days

*In Store - Not all In Stock bikes are on display. If you would like to collect or view a bike in store, please use our Click & Collect payment method or call 0118 9821021 to reserve and ensure your bike is ready for your visit.

ETAs are based on manufacturer's latest data.

Please note that we are unable to ship this Liv Intrigue X Advanced E+ Elite 3 outside of the UK.

Important lead time information

Where delivery times are stated as an ETA month this is based on the latest information from the manufacturer. These dates should be treated as a guide and may be subject to change. Due to an increased strain in global supply chains, factory and shipping schedules can be easily disrupted.

Should you place a future order with us we will monitor the bike’s ETA and keep you informed of any changes.

For more detailed information please read here.

Description

This Liv Intrigue X Advanced E+ Elite 3 2024 is available with our legendary Podium Point free accessory scheme.

Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-suspension E-MTB. An ultra-slim battery minimises weight so you can ride technical trails with all the agility of a traditional MTB but still have the pedal assistance when it's required.

Lighter weight - EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that's cleanly integrated with the composite frameset. This concept is designed for the rider who wants pedal assistance for the toughest sections but who wants to retain the lightweight feel and manoeuvrability of a traditional trail bike.

Advanced cockpit control - RideControl Ergo 3 remote can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

More power - SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.

Tne Intrigue X Advanced's composite frame features adjustable geometry with a new flip chip feature. A 27.5-inch rear wheel and 29-inch front wheel setup offers the best of both worlds: the stability and roll-over capabilities of a larger-diameter front wheel and the quick handling qualities of a shorter rear end.

The Intrigue X Advanced's composite frame features adjustable geometry with a new flip chip feature. A 27.5-inch rear wheel and 29-inch front wheel setup offers the best of both worlds: the stability and roll-over capabilities of a larger-diameter front wheel and the quick handling qualities of a shorter rear end.

The all-new Intrigue X Advanced E+ Elite is an eMTB for the discerning trail rider.






Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.

IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.

Specification

Year
2024
Frame
Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork
Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
Rear Shock
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned
Motor
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
Control System
Giant E+ System, Giant RideControl Ergo3, grip integrated remote, Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
Battery
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Display
Giant RideControl GO, frame integrated LED console
Shifters
Shimano Deore 1x12
Rear Mech
Shimano Deore
Front Mech
MRP HD2 co-moulded chain guide
Bottom Bracket
N/A
Chainset
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks
Cassette
Shimano CS-M6100-12, 10-51T
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Brakes
Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
Pedals
Not supplied
Wheelset
Rims: Giant AM 29 [F] / 27.5 [R], Tubeless ready 30mm inner width, Hubs: Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
Tyres
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Handlebar
Giant Contact 35 Trail
Stem
Giant Contact SL 35
Grips
Liv Tactal Pro-E Single Lock-On Grips
Seatpost
Tranz-X Rad+ dropper, 30.9mm, 30mm travel adjustable , (XS/S:90-125mm, M:120-150mm)
Saddle
Liv Sylvia E+
Headset
Extras
Giant EnergyPak 4A smart charger, 60% in 1:45 ,Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied

Warranty

We are an authorised Liv dealer and supply this Liv Intrigue X Advanced E+ Elite 3 with a LIFETIME manufacturer's warranty. Read Warranty Terms

Sizing

Size
Rider Height (ft)
Rider Height (m)
XS
5'0"-5'4"
1.52-1.63
S
5'2"-5'7"
1.58-1.69
M
5'5"-5'9"
1.64-1.75

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.

Geometry

Frame SizeXS
L|H
S
L|H
M
L|H
Seat Tube C-T mm380400425
Horiz. Top Tube mm557 | 555572 | 570597 | 595
Seat Angle77.2° | 78.0°77.2° | 78.0°76.0° | 76.7°
Head Angle65.7° | 66.5°65.7° | 66.5°65.8° | 66.5°
Head Tube mm9595100
Chainstay mm447 | 447447 | 447447 | 447
BB Offset mm30 | 2030 | 2030 | 20
Standover mm722 | 730726 | 735717 | 726
Wheelbase mm1174 | 11751188 | 11901200 | 1201
Reach mm419 | 427434 | 442444 | 452
Stack mm606 | 601606 | 601611 | 605
Fork Rake mm444444
Fork Trail mm113 | 108113 | 108113 | 108
Stem Length mm404040
Bar Width mm760760800
Crank length mm160160165
Wheel sizeR27.5" / F29"R27.5" / F29"R27.5" / F29"
