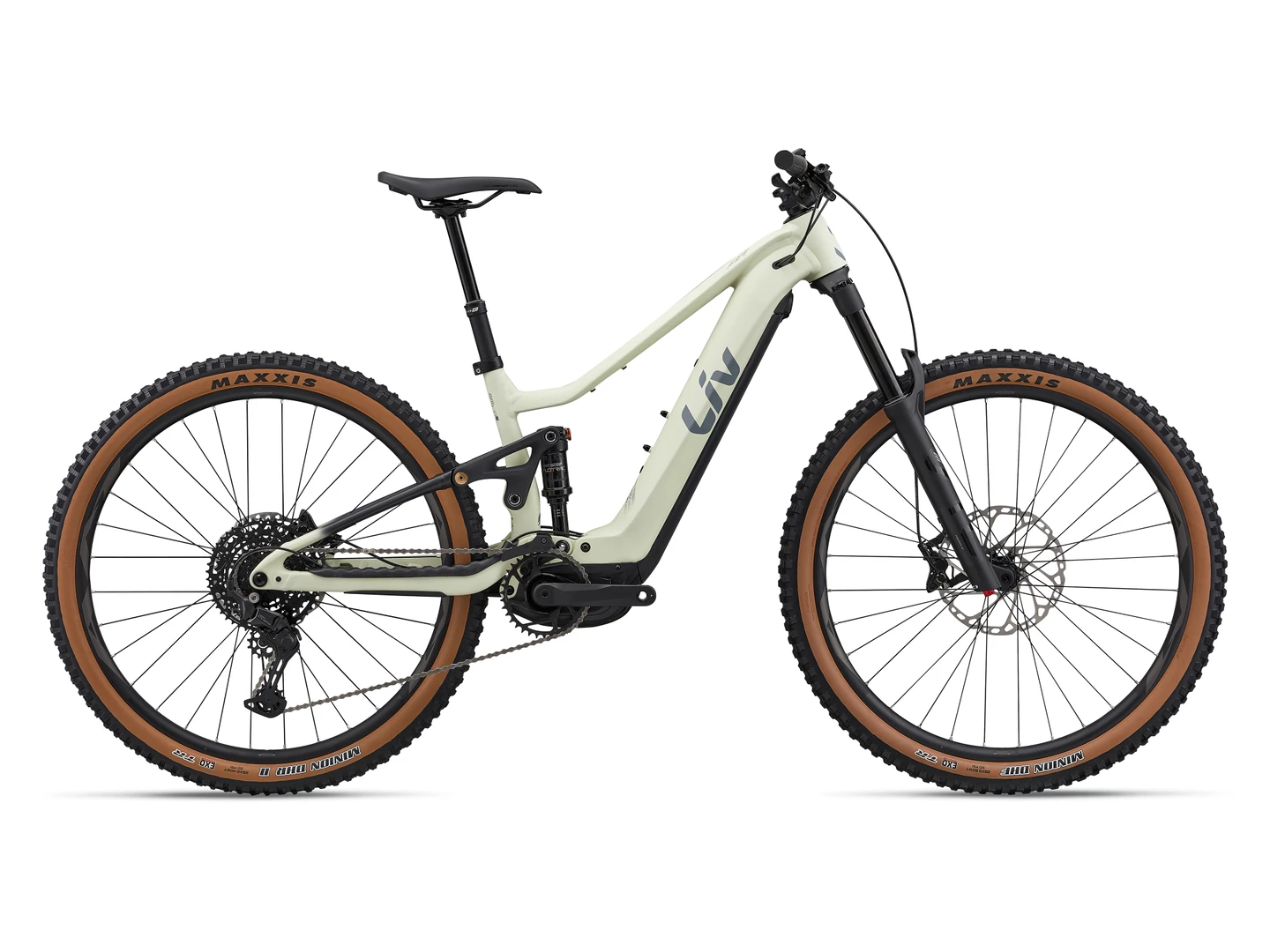

Large Liv Embolden E+ 1

Liv Embolden E+ 1

Trail Electric Bicycle
Liv Embolden E+ 1
Click to Enlarge Image

Web Price: £3,999.00

80 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Select a size:
Stock StatusDelivery
XS
In Stock3-5 Working Days
S
In Supplier Warehouse5-7 Working Days
M
In Stock3-5 Working Days
L
In Supplier Warehouse5-7 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.


Description

The Embolden E+ makes mountain biking feel easier and a lot more fun. From the very first ride, Embolden E+ invites you to try more - longer loops, new lines, and trails that once felt out of reach. Not because it asks you to push harder, but because it makes riding feel better.

With 150mm of front travel and 140mm at the rear, the suspension system is designed and tuned specifically for the Embolden E+ to deliver stability, traction, and predictable handling when trails get rough.

Through the RideControl Dash 2 and RideControl app, riders can personalize how the bike responds and which ride data they see, making it easy to fine-tune support modes and power delivery to match terrain, fitness, and riding style.

Smart Assist, an automatic adaptive support mode, maximizes efficiency by delivering the right amount of power you need, exactly when you need it. Built-in intelligence responds instantly to your movements and environment, enhancing your connection with the bike.

EnergyPak Smart batteries give you long-lasting range and smart charging technology. They provide exceptional durability with up to 2300 full charge cycles and allow you to recharge rapidly, reaching 80% battery capacity in less than four hours so you're always ready to go.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.


Specification

Year2027
ColourPale Moss
FrameALUXX SL-grade aluminum, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDHTM Universal Derailleur hanger, KSA40 compatible, 185X52.5mm shock, 1.5~1.8" headset (ZS62/ZS72)
ForkGiant STL 36 Air, 150mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible
Rear ShockGiant Crest FloTrac, 3-position lever, e-bike optimized, 185x52.5mm, Sag recommendation: 30% (15.75mm)
MotorGiant SyncDrive Pro 3X 100Nm, PedalPlus 6-Sensor technology
Control SystemGiant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
BatteryGiant EnergyPak 800Wh
DisplayGiant RideControl Dash 2, full color LCD display
ChargerGiant EnergyPak 4A smart charger
ShiftersShimano Cues LinkGlide
Rear MechShimano Cues LinkGlide, 10-speed, Shadow+
Front MechN/A
Bottom BracketN/A
ChainsetDirect-mount steel 36T (maximum: 38T), Forged aluminum crank arms
CassetteShimano Cues LinkGlide, 10-speed, 11-48T
ChainShimano LinkGlide
BrakesShimano Deore, BR-M420, hydraulic disc, 4-piston, 220mm [F], 203mm [R]
PedalsLarge platform pedal, 28-pins, PP cage, steel axle
RimsGiant AM30, tubeless ready, 30mm inner width
HubsShimano TC500 Boost, center-lock, 15x110mm [F], 12x148mm [R]
SpokesStainless steel
TyresMaxxis Minion DHF 27x2.5" (XS), 29x2.50" (S, M, L) foldable, TLR EXO [F}, Maxxis Dissector 27.5x2.4" (XS), 29x2.40" (S, M, L) foldable WT, TLR, EXO [R]
HandlebarGiant Connect TR35, 20mm rise, 35x750mm [XS, S], 35X780mm [M, L]
StemRetrieving data. Wait a few seconds and try to cut or copy again.
Grips
SeatpostGiant Contact Switch AT travel adjust dropper seatpost (XS, S: 110-140mm, M:140-170mm, L: 170-200mm)
SaddleLiv Contact Ergo Trail
Headset
ExtrasTubeless kit (liquid, valves, levers, manual, tool)

We are an authorised Liv dealer and supply this Liv Embolden E+ 1 with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here


Sizing

SizeRider Height (ft)Rider Height (m)
XS5'0"-5'4"1.50-1.63
S5'2"-5'7"1.58-1.69
M5'5"-5'9"1.64-1.75
L5'7"-6'0"1.70-1.83
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Geometry key
Frame SizeXSSML
Seat Tube C-T mm A380395425455
Horiz. Top Tube mm B555575595615
Seat Angle C77.5°76.5°76.5°76.5°
Head Angle D64.5°64.5°64.5°64.5°
Head Tube mm E105105115125
Chainstay mm F468468468468
BB Offset mm G20404040
Standover mm I689710726736
Wheelbase mm J1217122612481270
Reach mm K417426444462
Stack mm L619619628637
Fork Rake mm M44444444
Fork Trail mm N119129129129
Stem Length mm40404040
Bar Width mm750750780780
Crank length mm165165165165
Wheel size27.529"29"29"
