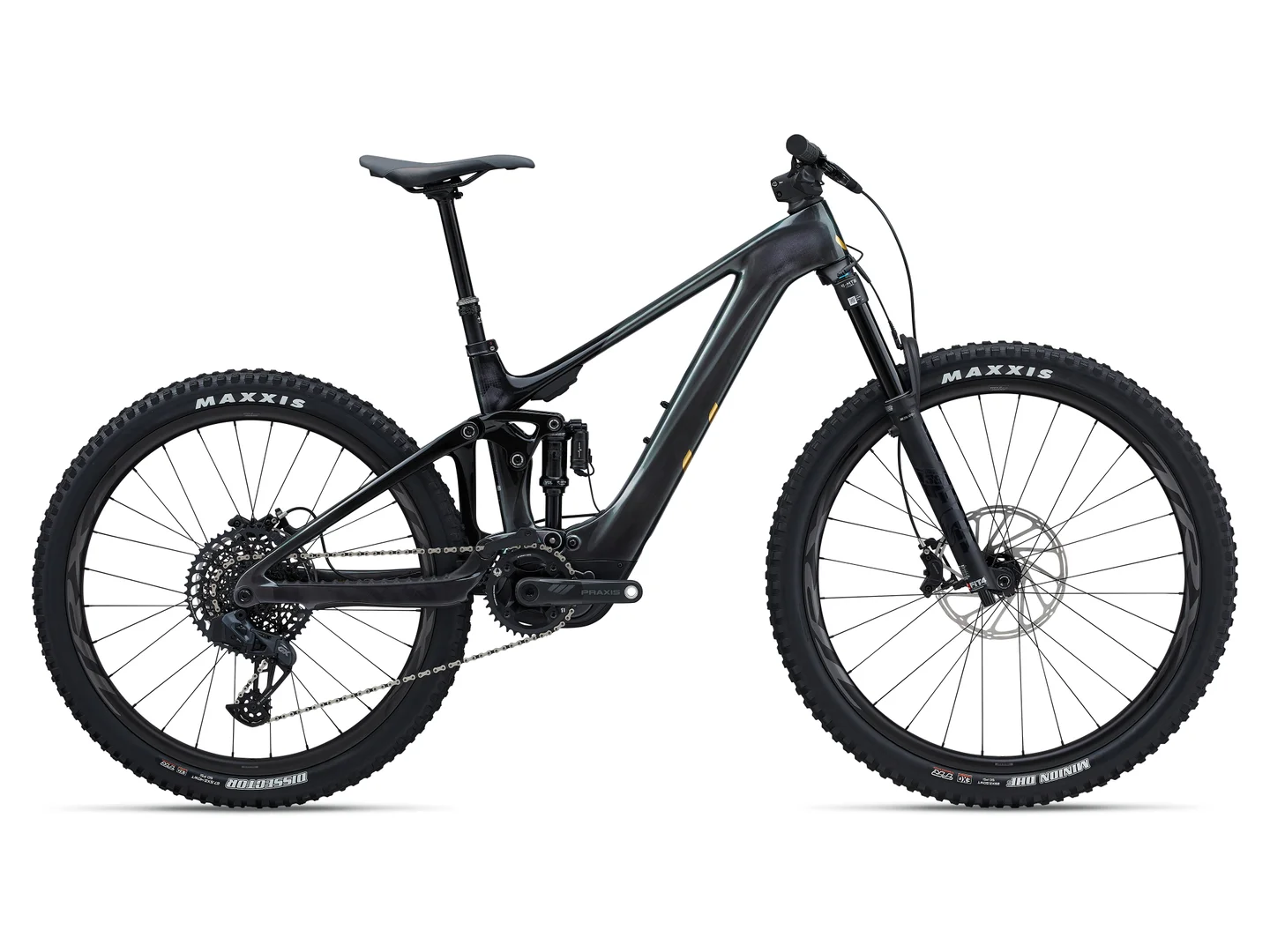

Liv Intrigue X Advanced E+ Elite 1

Trail Electric Bicycle

SALE

SRP £8999 Save 30% Web Price: £6,299.00

Select a size:

Stock StatusDelivery

Sold Out

Call for Alternatives

In Supplier Warehouse5-7 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

Important Note: This bicycle is supplied without pedals.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.

Specification

Year	2023
Frame	Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system MX (front 29", rear 27.5")
Fork	Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated, e-bike integrated
Rear Shock	Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
Motor	SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Control System	RideControl Ergo3, grip integrated remote
Battery	EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, EnergyPak Plus 200 range extender compatible
Display	RideControl GO, frame integrated LED console Optional wireless ANT+ display
Shifters	SRAM AXS Rocker Paddle, wireless electronic shifting
Rear Mech	SRAM GX Eagle AXS
Front Mech	MRP 1X HD2 custom co-molded chain guide
Bottom Bracket	n/a
Chainset	Praxis Performance Carbon e-crank arms (XS/S:160, M:165) SRAM X-SYNC Eagle 36T chain ring
Cassette	SRAM XG-1275, 10-52T, 12-speed
Chain	SRAM GX Eagle PowerLock
Brakes	SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]
Pedals	Not Supplied
Wheelset	TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width
Tyres	Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Handlebar	Giant Contact SLR Trail, carbon, 760mm (XS-S), 800mm (M)
Stem	Giant Contact SLR Trail, integrated, 40/45/50mm Reach, 7/9degree Sweep Adjust System
Grips	Liv Tactal Pro-E Single Lock-On Grips
Seatpost	Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm)
Saddle	Liv Sylvia E+
Headset
Extras	EnergyPak 4A smart charger, 60% in 1:45, Tubeless Setup

We are an authorised Liv dealer and supply this Liv Intrigue X Advanced E+ Elite 1 with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
XS	5'0"-5'4"	1.52-1.63
S	5'2"-5'7"	1.58-1.69
M	5'5"-5'9"	1.64-1.75

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	XS L\|H	S L\|H	M L\|H
Seat Tube C-T mm A	380	400	425
Horiz. Top Tube mm B	557 \| 555	572 \| 570	597 \| 595
Seat Angle C	77.2° \| 78.0°	77.2° \| 78.0°	76.0° \| 76.7°
Head Angle D	65.7° \| 66.5°	65.7° \| 66.5°	65.8° \| 66.5°
Head Tube mm E	95	95	100
Chainstay mm F	447 \| 447	447 \| 447	447 \| 447
BB Offset mm G	30 \| 20	30 \| 20	30 \| 20
Standover mm I	722 \| 730	726 \| 735	717 \| 726
Wheelbase mm J	1174 \| 1175	1188 \| 1190	1200 \| 1201
Reach mm K	419 \| 427	434 \| 442	444 \| 452
Stack mm L	606 \| 601	606 \| 601	611 \| 605
Fork Rake mm M	44	44	44
Fork Trail mm N	113 \| 108	113 \| 108	113 \| 108
Stem Length mm	40	40	40
Bar Width mm	760	760	800
Crank length mm	160	160	165
Wheel size	R27.5" / F29"	R27.5" / F29"	R27.5" / F29"
