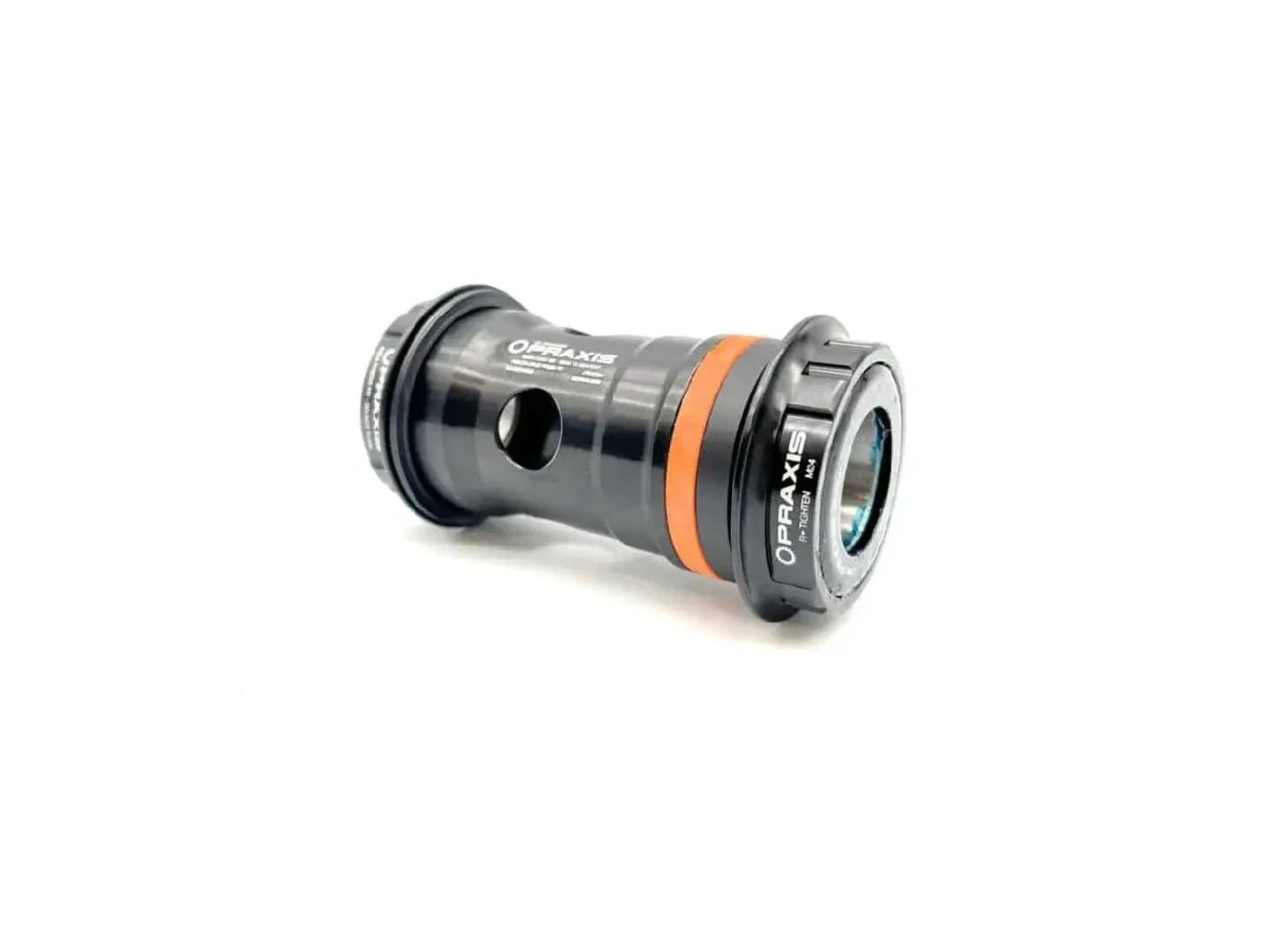

Large Praxis BB30/PF30 to M24/GXP (22/24mm spindle) Converter

SRP £75 Save 10% Web Price: £67.50


Our Ref.Status
PR-68-3201RIn Stock

Collect In Store - To collect in store please add to cart and select the Click & Collect method at checkout. This will reserve your selection for store collection. Payment will be required upon collection.


Description

This Praxis BB converter is designed to be a proper bottom bracket for installing Praxis M24/SRAM GXP cranks in either BB30 or PF30 road frames. Our patent pending design keeps the cartridge bearings outboard of the frame right on SRAM spec for greater rigidity and free of frame/c-clip tolerance issues that other conversion bb systems deal with.

24mm Drive bearing / 22mm Non-Drive bearing.
Patent Pending Outboard Bearing Design.
“Collet” style non-drive cup expansion for wiggle-free press.
Non-Drive O-Ring compensates for frame width discrepancies.
Not for BBRight, 386EVO or Cannondale BB30A/PF30A frames.
Frame shell cannot have any inner shell obstructions (like cable guides/screws) that prevent BB from installing.
