Description
This Scott Lumen eRide 910 is available with our legendary Podium Point free accessory scheme.

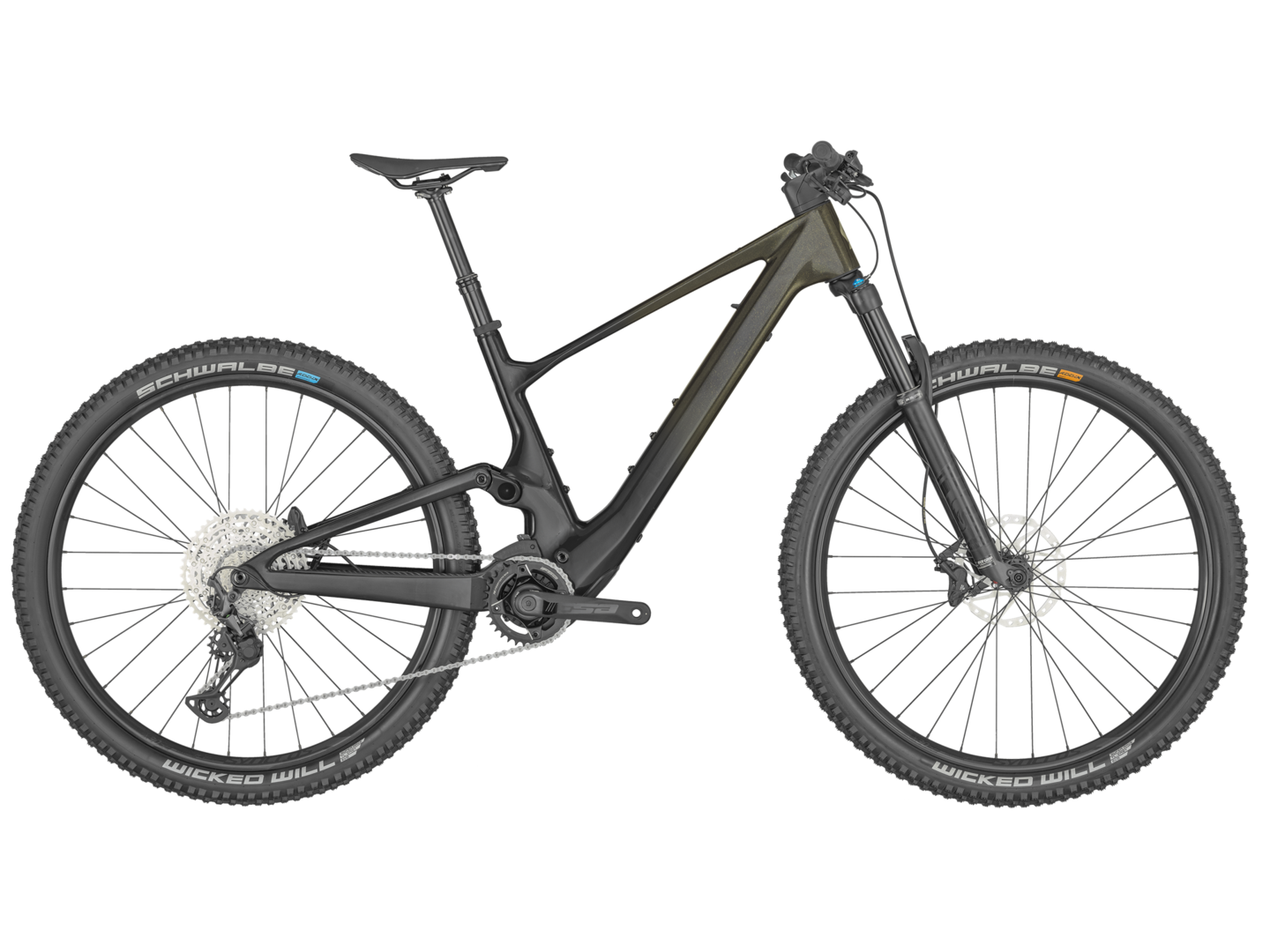

The SCOTT Lumen takes the world's fastest XC/Trail frame platform and adds completely silent and powerful electric assistance all while maintaining SCOTT's legendary lightweight DNA.
The ride feel is just like a regular bike: no need to think about a longer braking distance, pedal drag or weight, as it's even possible to ride the bike with the assistance switched off. This is an E-Bike for a mountain biker, with all the benefits of a regular bike, now with added assistance to get you up those hills faster to enjoy riding further and for even longer.
Taking inspiration from the Spark, the objective for the Lumen was a riding position that feels just like a regular bike. Scott wanted the ability to descend like a trail bike without sacrificing anything when you need to put the hammer down, and a trail bike that can fly up the hill to do it all again on the next descent.
If you prefer a more aggressive ride, the head angle of the Lumen can be easily adjusted through one of 3 positions. The geometry chart is based around the head angle of 65.5 degrees. The Lumen's adjustable headset cups allow for a steeper or slacker angle by .6 degrees in either direction.
The Lumen uses the same suspension layout as featured in the SCOTT Spark, now a double World Championship winning bike. Scott's integrated suspension technology also helps them to engineer frames with a lower shock placement which lowers centre of gravity. Why integrated you ask? Well for one, it looks fantastic. But also keeps the shock fully protected from any foreign elements. Rainy wintry ride? No problem, your shock will continue to perform at its best regardless.
The Lumen features Scott's Twinloc Suspension System. With the remote, the user has the ability to choose from three ride modes; descend, traction control and lockout, effectively changing the bikes geometry, suspension damping and spring curve simultaneously. Scott's lever also features the dropper post actuation below the bar. This ergonomic solution puts all of the bike's controls in one place making them easily accessible on the fly.
COMPACT POWERFUL ASSISTANCE
TQ is a German company founded in 1994 who specialize in electric components across a range of industries. The HPR50 delivers an unprecedented weight/power ratio of 1.8 kg for 50Nm. With a diameter of 8 cm, TQ has innovated by using a harmonic gear system. This results in a lighter bike, better integration, while reducing backlash for a more natural pedalling sensation. This technology also allows for the reduction in system noise for a truly natural experience. After all, you are in the outdoors to, well, enjoy the outdoors.
The system can be controlled via a minimalistic handlebar remote paired to the integrated top tube display. The modes are easy to switch through, and, thanks to the ergonomic placement on the handlebar, can be easily controlled whilst riding, as well as when using Walk Mode.
To maintain a clean cockpit, the TQ system puts the focus on a minimalistic display located in the top tube paired to a discrete shifter on the handlebar. The LED display provides all the essential info, such as the battery level %, remaining KM range and even Watts, thanks to an integrated power meter. Want more? Link up your phone and dive deep using the TQ E-Bike app. Utilizing the built in ANT+, the system easily connects with a bike computer such as a Garmin, Hammerhead or Wahoo unit.
The TQ app offers real benefit and is easy to use. It's easy to connect, customize and control your TQ-powered e-bike with the TQ E-Bike app. The bike comes with a suggested SCOTT motor tune, with the app you can further tune your drive unit to either save battery life or maximise the power output. You can also customize the display, altering the order and number of screens available, turn on and off control sounds etc.
Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).
IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
2023
Frame
Lumen eRIDE Carbon HMX, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline. SCOTT TwinLoc Suspension System, 3 modes front and rear / integ. Grip clamp
Fork
FOX 34 Float Rhythm Air Grip, 3-Modes / Kabolt 15x110mm axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 130mm travel
Rear Shock
FOX NUDE 5T EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Custom large Air volume / DPS / Reb. Adj., Travel 130-90-Lockout / T165X45mm
Motor
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Control System
TQ HPR
Battery
TQ Internal 360Wh
Display
TQ HPR, Bluetooth / ANT+ / Dedicated Smartphone app
Shifters
Shimano Deore SL-M6100-IR / Rapidfire Plus
Rear Mech
Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed
Front Mech
Bottom Bracket
Chainset
FSA Alloy crankset / 175mm / 34T
Cassette
Shimano CS-M6100 / 10-51 T
Chain
Shimano CN-M6100
Brakes
Shimano Deore M6120 4 Piston Disc
Pedals
Wheelset
Rims: Syncros X-30SE / 32H / 30mm Tubeless ready, Hub F: Formula CL-811 / 15x110mm, Hub R: Formula CL-148M / 12x148mm / Micro Spline
Tyres
Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft
Handlebar
Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm
Stem
Syncros DC 2.0
Grips
Syncros Performance XC lock-on grips
Seatpost
Syncros Duncan Dropper Post 2.0 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
Saddle
Syncros Tofino 1.5 Regular, Titanium rails
Headset
Syncros - Acros Angle adjust & Cable Routing HS System
Extras
TQ 100-240V-4A Charger
Warranty
We are an authorised Scott dealer and supply this Scott Lumen eRide 910 with up to a 5 Year manufacturer's warranty. Note: Rider weight limits may apply. Read Warranty Terms
