Trek Top Fuel 9.8 GX AXS Matte Dark Web

Down Country Bicycle

Web Price: £6,500.00

130 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Select a size:

Stock StatusDelivery

Call for Alternatives

ETA - June

Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Product video available. Please accept marketing cookies to watch this embedded video.

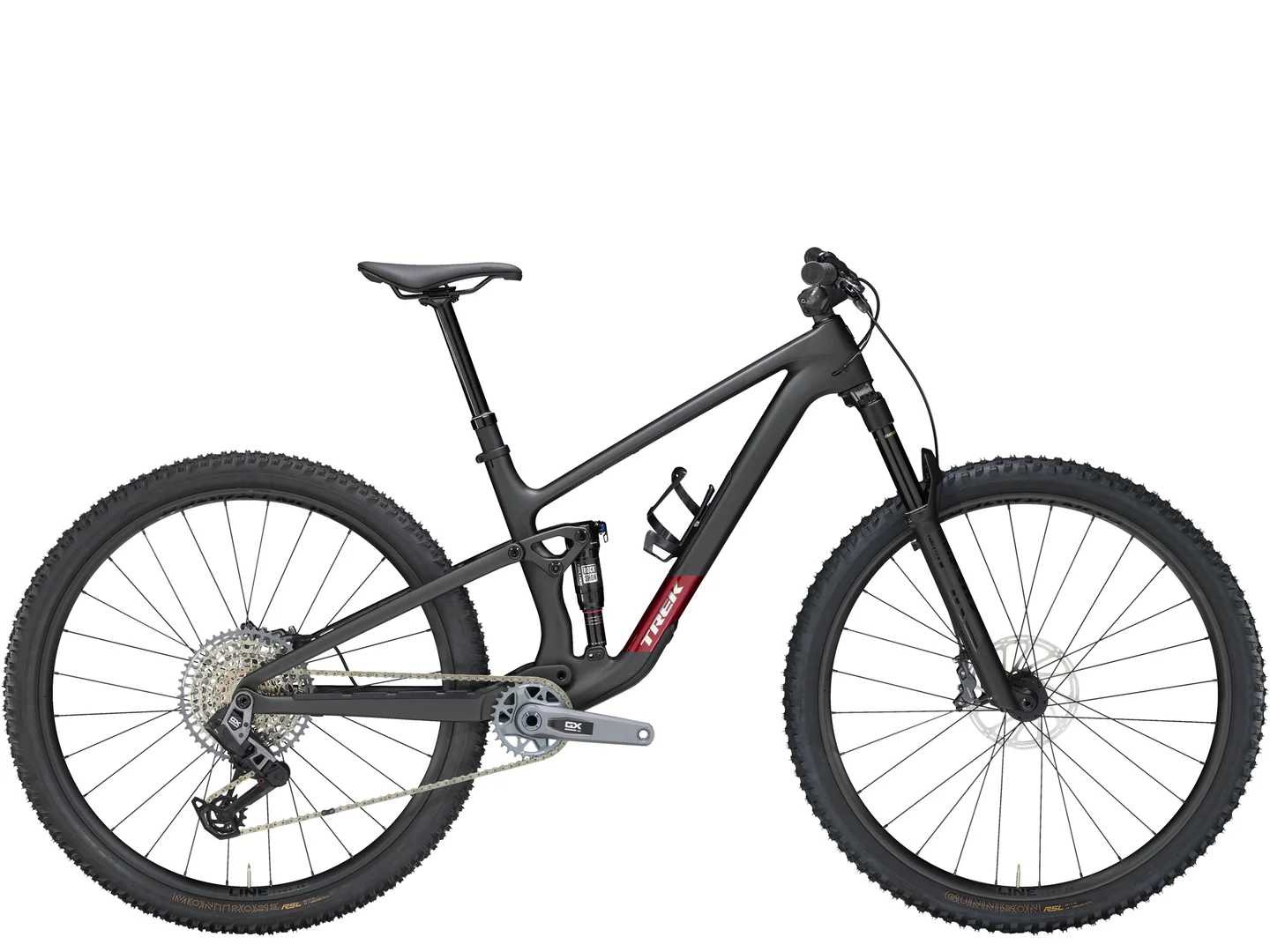

The Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120 mm/130 mm RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you can shift easy even under load with a SRAM GX Eagle AXS wireless transmission.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.

Specification

Year	Generation 4
Colour	Matte Dark Web
Frame	OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, OCLV Next rocker link, Mino 4 link, ABP, Boost148, 120 mm travel
Fork	RockShox
Rear Shock	RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
Shifters	SRAM AXS POD
Rear Mech	SRAM GX Eagle AXS, T-Type
Front Mech
Bottom Bracket	SRAM DUB MTB Wide, 73 m, BSA threaded
Chainset	SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
Cassette	SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
Chain	SRAM GX Eagle, T-Type, 12-speed
Brakes	SRAM Level Bronze 4-piston hydraulic disc // SRAM Level Bronze 4-piston hydraulic disc
Pedals	Not Supplied
Wheelset	Bontrager Line Comp 30 29" (27.5" on Size Small)
Tyres	Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40" (27.5x2.4" on Small)
Handlebar	Size: S - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length Size: M, ML, L, XL - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Stem
Grips	Bontrager XR Trail Elite, nylon lock-on
Seatpost	Size: S - Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length Size: M, ML, L, XL - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
Saddle	Verse Short Comp, steel rails
Headset
Extras

We are an authorised Trek dealer and supply this Trek Top Fuel 9.8 GX AXS Matte Dark Web with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

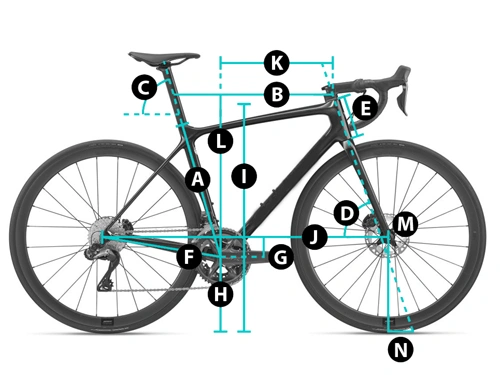

Geometry

Frame Size	S High	S Low	M High	M Low	ML High	ML Low	L High	L Low	XL High	XL Low
Seat Tube C-T mm A	360	360	410	410	420	420	435	435	470	470
Horiz. Top Tube mm B	558	559	587	588	611	612	630	631	672	673
Seat Angle C	76.5°	76.0°	77.3°	76.9°	76.6°	76.2°	76.3°	75.9°	75.6°	75.2°
Head Angle D	65.9°	65.5°	65.9°	65.5°	65.9°	65.5°	65.9°	65.5°	65.9°	65.5°
Head Tube mm E	105	105	105	105	110	110	115	115	135	135
Chainstay mm F	434	435	434	435	439	440	439	440	444	445
BB Offset mm G	10	16	26	32	26	32	26	32	26	32
Standover mm I	705	700	755	750	755	750	760	755	765	760
Wheelbase mm J	1150	1151	1188	1188	1210	1210	1227	1227	1270	1271
Reach mm K	422	417	452	447	467	462	482	477	512	507
Stack mm L	566	570	599	603	604	607	608	612	626	630
Fork Rake mm M	43	43	43	43	43	43	43	43	43	43
Fork Trail mm N	111	115	121	125	121	125	121	125	121	125
Stem Length mm	27.5"	27.5"	29"	29"	29"	29"	29"	29"	29"	29"
