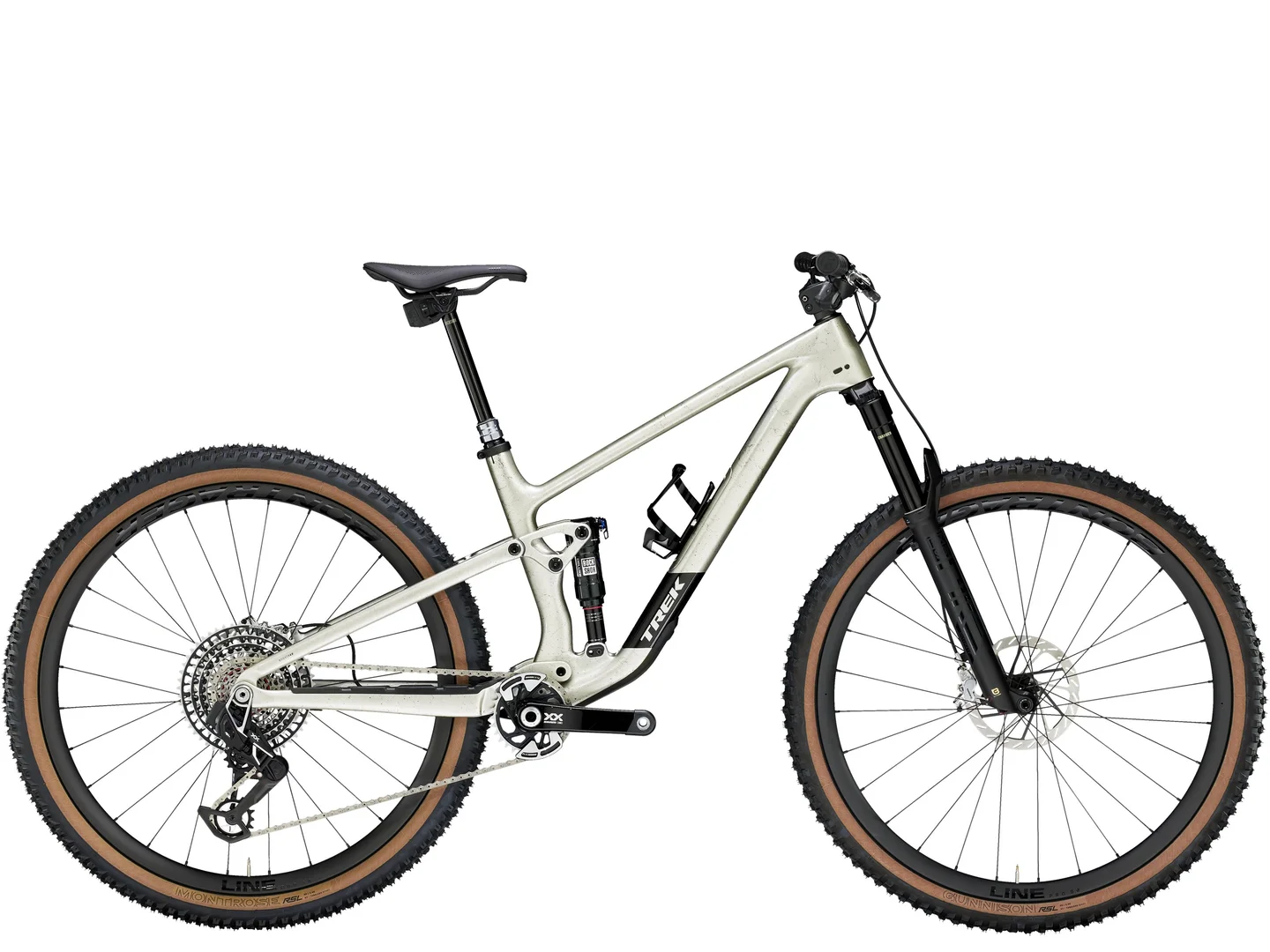

Trek Top Fuel 9.9 XX AXS Lunar Silver

Down Country Bicycle

Web Price: £10,000.00

Select a size:

Stock StatusDelivery

In Supplier Warehouse5-7 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Product video available. Please accept marketing cookies to watch this embedded video.

The Top Fuel 9.9 XX AXS Gen 4 is an ultra-light and capable carbon trail bike that's built for soaring up climbs and rallying over miles of singletrack. This top-level build delivers the performance you want, with a RockShox Ultimate suspension package (120 mm/130 mm) and SRAM's lightest wireless XX AXS transmission that shifts smooth and easy, especially under load. It's topped off with carbon wheels to keep your ride light from top to bottom.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.

Specification

Year	Generation 4
Colour	Lunar Silver
Frame	OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, OCLV Next rocker link, Mino 4 link, ABP, Boost148, 120 mm travel
Fork	Trek
Rear Shock	RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
Shifters	SRAM AXS POD
Rear Mech	SRAM XX SL Eagle AXS, T-Type
Front Mech
Bottom Bracket	SRAM DUB MTB Wide, 73 m, BSA threaded
Chainset	SRAM XX Eagle, DUB, 30T, T-Type, 55 mm chainline, 170 mm length
Cassette	SRAM Eagle XS-1299, T-Type, 10-52, 12-speed
Chain	SRAM XX Eagle, T-Type, 12-speed
Brakes	SRAM Level Ultimate 4-piston hydraulic disc
Pedals	Not Supplied
Wheelset	Bontrager Line Pro 30 29" (27.5" on Size Small)
Tyres	Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40" (27.5x2.4" on Small)
Handlebar	Size: S - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length Size: M, ML, L, XL - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Stem
Grips	Bontrager XR Trail Elite, nylon lock-on
Seatpost	Size: S - RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length Size: M, ML, L, XL - RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
Saddle	Verse Short Pro, carbon rails
Headset
Extras

We are an authorised Trek dealer and supply this Trek Top Fuel 9.9 XX AXS Lunar Silver with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)	Inseam (m)
S	5'1"-5'5"	1.55-1.65	0.74-0.78
M	5'5"-5'9"	1.65-1.76	0.79-0.83
ML	5'8"-5'11"	1.73-1.80	0.81-0.86
L	5'10"-6'2"	1.77-1.88	0.84-0.89
XL	6'2"-6'5"	1.88-1.95	0.89-0.91

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	S High	S Low	M High	M Low	ML High	ML Low	L High	L Low	XL High	XL Low
Seat Tube C-T mm A	360	360	410	410	420	420	435	435	470	470
Horiz. Top Tube mm B	558	559	587	588	611	612	630	631	672	673
Seat Angle C	76.5°	76.0°	77.3°	76.9°	76.6°	76.2°	76.3°	75.9°	75.6°	75.2°
Head Angle D	65.9°	65.5°	65.9°	65.5°	65.9°	65.5°	65.9°	65.5°	65.9°	65.5°
Head Tube mm E	105	105	105	105	110	110	115	115	135	135
Chainstay mm F	434	435	434	435	439	440	439	440	444	445
BB Offset mm G	10	16	26	32	26	32	26	32	26	32
Standover mm I	705	700	755	750	755	750	760	755	765	760
Wheelbase mm J	1150	1151	1188	1188	1210	1210	1227	1227	1270	1271
Reach mm K	422	417	452	447	467	462	482	477	512	507
Stack mm L	566	570	599	603	604	607	608	612	626	630
Fork Rake mm M	43	43	43	43	43	43	43	43	43	43
Fork Trail mm N	111	115	121	125	121	125	121	125	121	125
Stem Length mm	27.5"	27.5"	29"	29"	29"	29"	29"	29"	29"	29"
