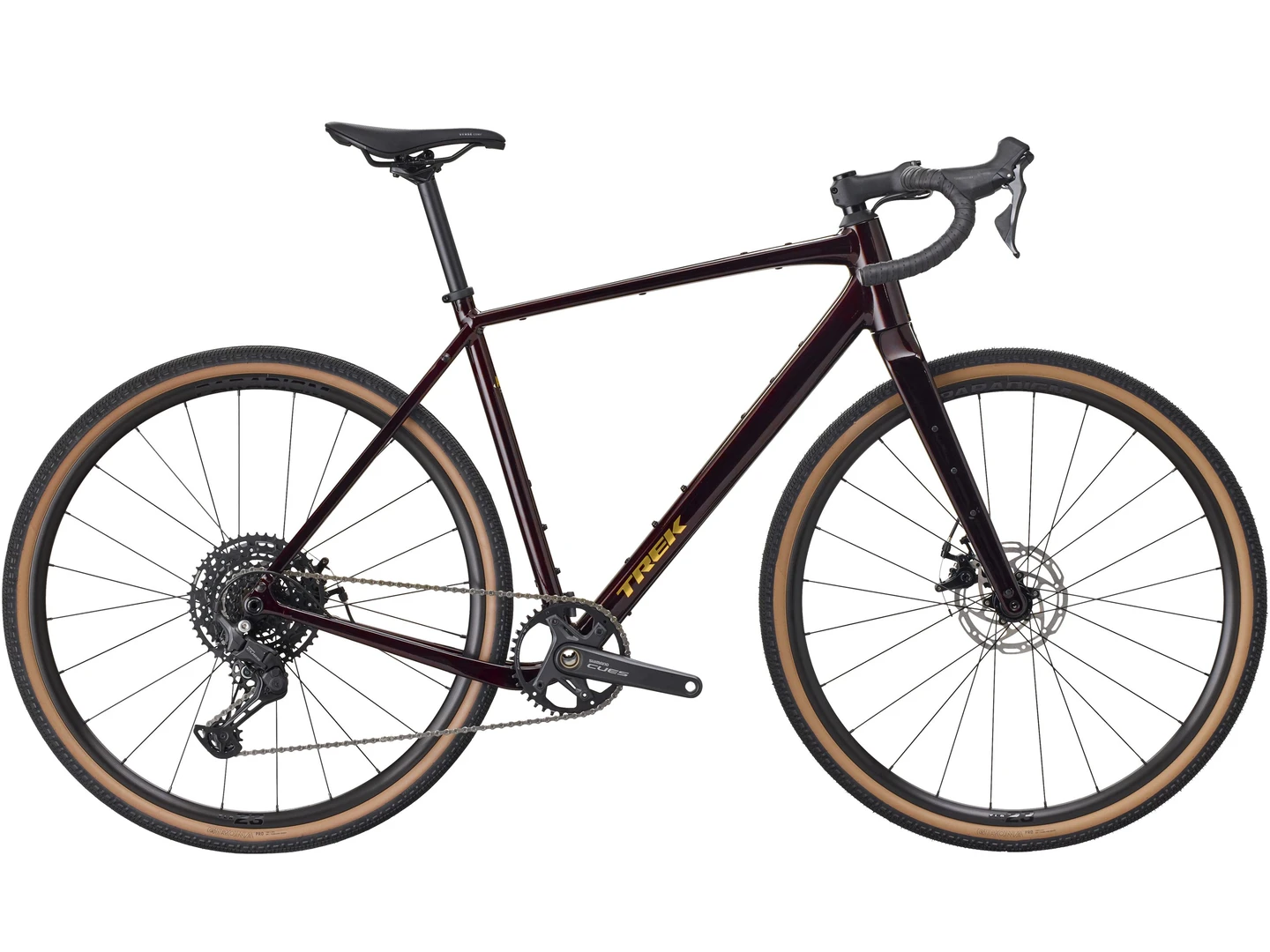

Trek Checkpoint ALR 3 Carmine

Gravel Bicycle

Web Price: £1,200.00

24 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Product video available. Please accept marketing cookies to watch this embedded video.

The Checkpoint ALR 3 is an adventure-ready alumin’um gravel bike built for exploring anywhere. Its modern endurance geometry keeps you comfortable over gravel roads or potholes, while a carbon fork helps cut down the road vibrations. It's spec'd to go anywhere without breaking the bank, with Bontrager Paradigm wheels, clearance for 50 mm tyres,10-speed Shimano CUES 6000 shifting, mechanical disc brakes and loads of mounts for bags and accessories.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.

Specification

Year	Generation 3
Colour	Dark Carmine
Frame	300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle
Fork	Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Rear Shock	N/A
Shifters	Shimano CUES 10 Speed
Rear Mech	Shimano CUES U6000 GS
Front Mech
Bottom Bracket	Praxis, T47 threaded, internal bearing
Chainset	Size: S, XS - Shimano CUES FCU60301 , 40T ring, 165mm length Size: M, ML - Shimano CUES FCU60301 , 40T ring, 170mm length Size: XL, L - Shimano CUES FCU60301 , 40T ring, 172.5mm length
Cassette	Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain	Shimano LG500
Brakes	Tektro C550 mechanical disc brake, dual piston
Pedals	Not Supplied
Rims	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Hubs	14 g stainless steel, black
Spokes	F: Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle R:Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Tyres	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Max. Tyre Width	50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Handlebar	Size: S, XS - Bontrager Elite Gravel, alloy, 40 cm width Size: M, ML - Bontrager Elite Gravel, alloy, 42 cm width Size: L - Bontrager Elite Gravel, alloy, 44 cm width Size: XL - Bontrager Elite Gravel, alloy, 46 cm width
Stem	Size: XS - Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: S, M - Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size: L, ML - Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length Size: XL - Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Grips	Bontrager Supertack Perf tape
Seatpost	Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Saddle	Verse Short Comp, steel rails, 145 mm width
Headset
Extras

We are an authorised Trek dealer and supply this Trek Checkpoint ALR 3 Carmine with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (m)	Rider Inseam (m)
XS	1.43-1.58	0.67-0.74
S	1.58-1.64	0.74-0.77
M	1.64-1.77	0.77-0.83
ML	1.77-1.88	0.83-0.88
L	1.88-1.94	0.88-0.91
XL	1.94-2.03	0.91-0.95

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	XS	S	M	ML	L	XL
Seat Tube C-T mm A	490	520	540	560	580	610
Horiz. Top Tube mm B	536	548	568	580	592	604
Seat Angle C	74.1°	73.7°	73.2°	72.8°	72.5°	72.1°
Head Angle D	71.2°	71.6°	71.8°	72.2°	72.3°	72.6°
Head Tube mm E	96	117	140	162	181	201
Chainstay mm F	435	435	435	435	435	435
BB Offset mm G	78	78	76	76	74	74
Standover mm I	735	765	789	809	829	859
Wheelbase mm J	1025	1033	1041	1048	1058	1070
Reach mm K	380	385	391	397	402	408
Stack mm L	545	566	589	611	630	650
Fork Rake mm M	49	49	49	49	49	49
Fork Trail mm N	74	71	70	67	66	65
Wheel size	700C	700C	700C	700C	700C	700C
