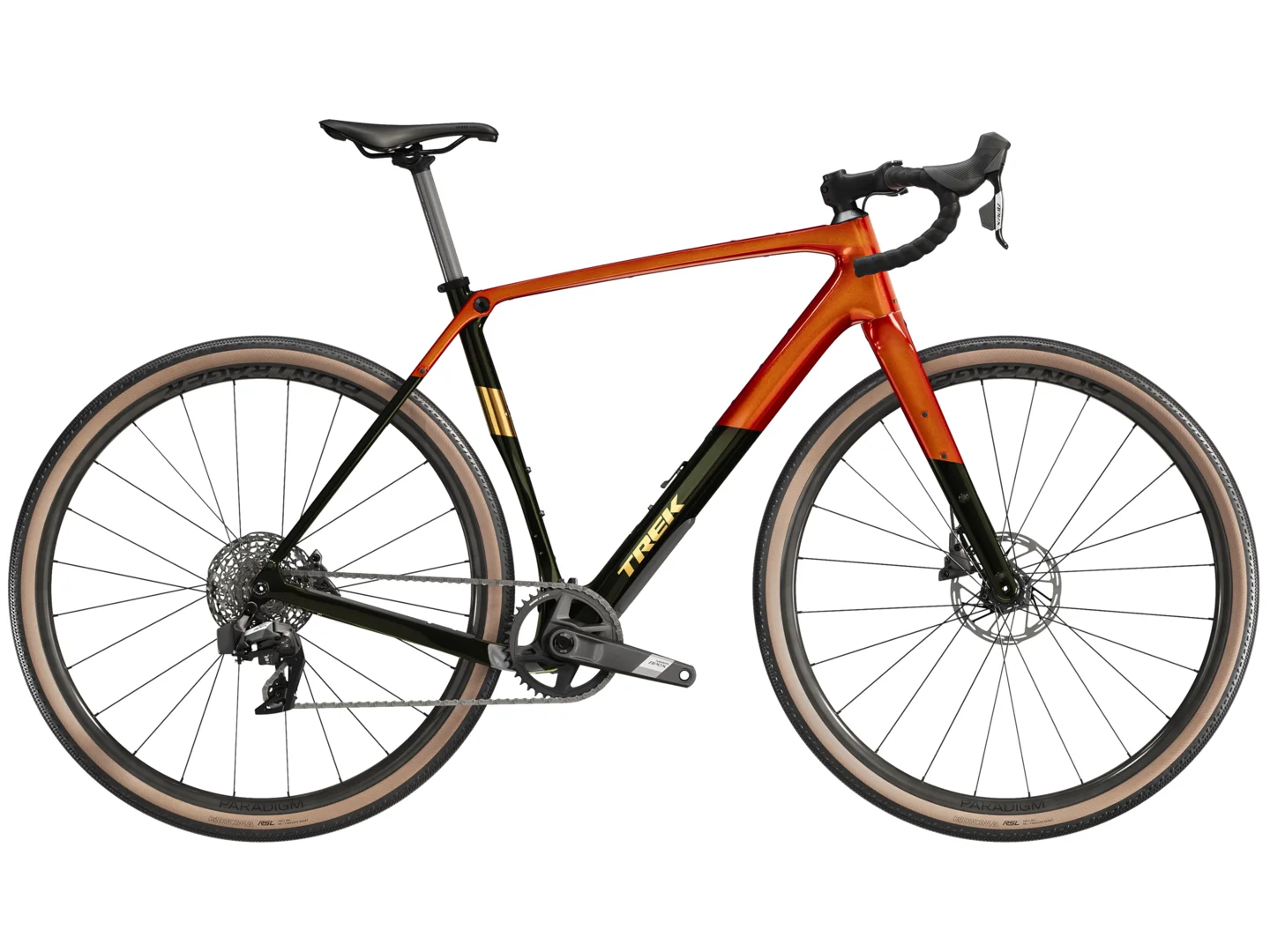

Trek Checkpoint SL 5 AXS Gen 3 Lava

gravel Bicycle

SALE

SRP £3700 Save 18% Web Price: £2,999.00

Select a size:

Stock StatusDelivery

Call for Alternatives

In Stock3-5 Working Days

Call for Alternatives

In Stock3-5 Working Days

Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon. Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, helping you float over chatter and potholes. It comes equipped with a wireless 12-speed SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.

The Checkpoint SL 5 is right for you if you want a carbon gravel bike for exploring the beyond, and want to save on parts you can upgrade over time. You want the gravel-smoothing benefits of IsoSpeed tech that soaks up chatter from below so you can ride stronger for longer and plenty of mounts to carry all your gear and hydration.

Checkpoint SL 5 features a 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50 mm tyres (as measured). A 12-speed 1x SRAM Apex XPLR AXS fully wireless drivetrain, hydraulic disc brakes, carbon seat post, and Tubeless Ready Bontrager Paradigm SL wheels with 42 mm tyres.

When you're ready to explore the road less travelled, reach for the Checkpoint SL 5 AXS Gen 3. This capable and comfortable gravel bike balances price and performance with a blend of components that deliver reliably and a frame that's packed with road-smoothing features.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals.

Specification

Year	Generation 3
Colour	Lava/Black Olive
Frame	500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
Fork	Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Rear Shock	N/A
Shifters	SRAM Apex XPLR eTap AXS
Rear Mech	SRAM Apex XPLR eTap AXS, 44T max cog
Front Mech	N/A
Bottom Bracket	SRAM DUB, T47 threaded, internal bearing
Chainset	SRAM Apex 1, 40T, DUB Wide
Cassette	SRAM XPLR PG-1231, 11-44, 12-speed
Chain	SRAM Apex 12 Speed
Brakes	SRAM Apex AXS hydraulic disc, 160 mm
Pedals	Not Supplied
Wheelset	Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width
Tyres	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Handlebar	Bontrager Elite Gravel
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Grips	Bontrager Supertack Perf tape
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Saddle	Verse Short Comp, steel rails
Headset
Extras

We are an authorised Trek dealer and supply this Trek Checkpoint SL 5 AXS Gen 3 Lava with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (m)	Rider Inseam (m)
XS	1.43-1.58	0.67-0.74
S	1.58-1.62	0.74-0.76
M	1.62-1.73	0.76-0.81
ML	1.73-1.79	0.81-0.84
L	1.79-1.88	0.84-0.88
XL	1.88-2.13	0.88-1.00

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	XS	S	M	ML	L	XL
Seat Tube C-T mm A	445	480	505	530	550	575
Horiz. Top Tube mm B	536	547	566	578	589	601
Seat Angle C	74.0°	74.0°	73.3°	73.3°	73.3°	73.3°
Head Angle D	71.0°	71.4°	71.6°	72.0°	72.1°	72.4°
Head Tube mm E	86	106	130	151	171	191
Chainstay mm F	430	430	430	430	430	430
BB Offset mm G	76	76	76	76	76	76
Standover mm I	746	776	802	813	837	861
Wheelbase mm J	1013	1022	1034	1042	1052	1062
Reach mm K	380	386	391	397	402	408
Stack mm L	535	556	579	601	620	640
Fork Rake mm M	49	49	49	49	49	49
Fork Trail mm N	71	68	68	64	64	62
Stem Length mm	60	70	80	80	90	100
Bar Width mm	400	420	420	440	440	460
Crank length mm	165	165	170	172.5	172.5	175
Wheel size	700c	700c	700c	700c	700c	700c
