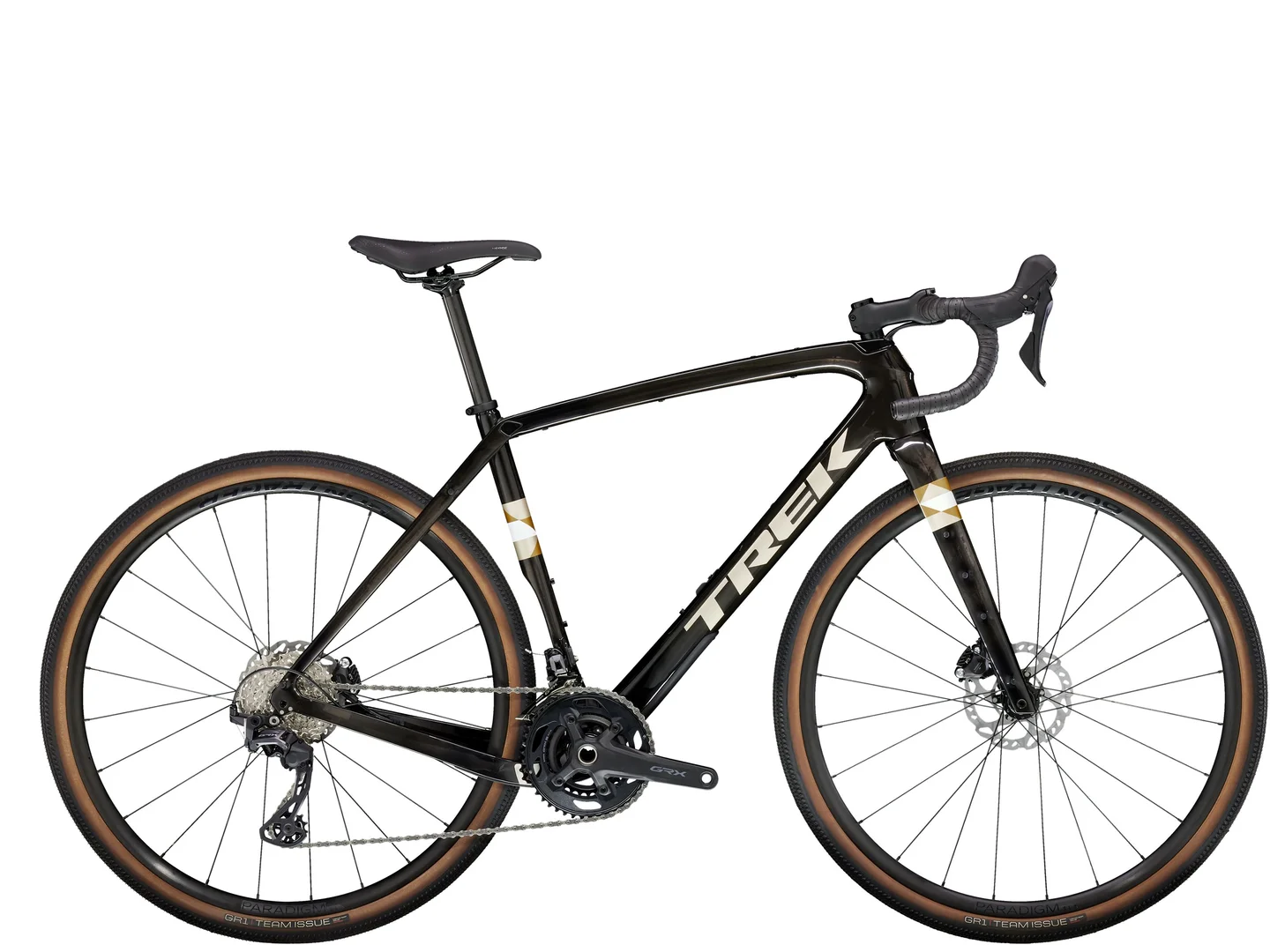

Trek Checkpoint SL 5 Deep Smoke

Gravel Bicycle

SRP £3500 Save 34% Web Price: £2,299.00

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals.

Specification

Year	2024
Frame	500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
Fork	Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Rear Shock
Shifters	Shimano GRX RX610, 12-speed // Shimano GRX RX610, 12-speed
Rear Mech	Shimano GRX RX820, 36T max cog
Front Mech	Shimano GRX RX820, braze-on, down swing
Bottom Bracket	Praxis, T47 threaded, internal bearing
Chainset	Shimano GRX RX610, 46/30
Cassette	Shimano 105 7100, 11-36, 12-speed
Chain	Shimano SLX M7100, 12-speed
Brakes	Shimano RX410 hydraulic disc, flat mount
Pedals	Not Supplied
Wheelset	Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width
Tyres	Bontrager GR1 700x40 Tubeless Ready
Handlebar	Bontrager Elite Gravel
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Grips
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset
Saddle	Bontrager Verse Comp, steel rails
Headset
Extras

We are an authorised Trek dealer and supply this Trek Checkpoint SL 5 Deep Smoke with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Geometry

Frame Size	49 cm	52 cm	54 cm	56 cm	58 cm	61 cm
Seat Tube C-T mm A	490	520	540	560	580	610
Seat Tube C-T in	19.3	20.5	21.3	22	22.8	24
Horiz. Top Tube mm B	541	555	570	584	597	617
Seat Angle C	74.1°	73.7°	73.2°	72.8°	72.5°	72.1°
Head Angle D	71.2°	71.6°	71.8°	72.2°	72.3°	72.6°
Head Tube mm E	90	105	125	145	165	195
Chainstay mm F	435	435	435	435	435	435
BB Offset mm G	78	78	76	76	74	74
Standover mm I	735	765	789	809	829	859
Wheelbase mm J	1025	1033	1041	1048	1058	1070
Reach mm K	393	399	403	407	411	417
Stack mm L	538	553	571	592	609	639
Fork Rake mm M	45	45	45	45	45	45
Fork Trail mm N	74	71	70	67	66	65
Stem Length mm	70	80	80	90	90	100
Bar Width mm	380	400	420	420	440	440
Crank length mm	165	170	172.5	172.5	175	175
Wheel size	700c	700c	700c	700c	700c	700c
