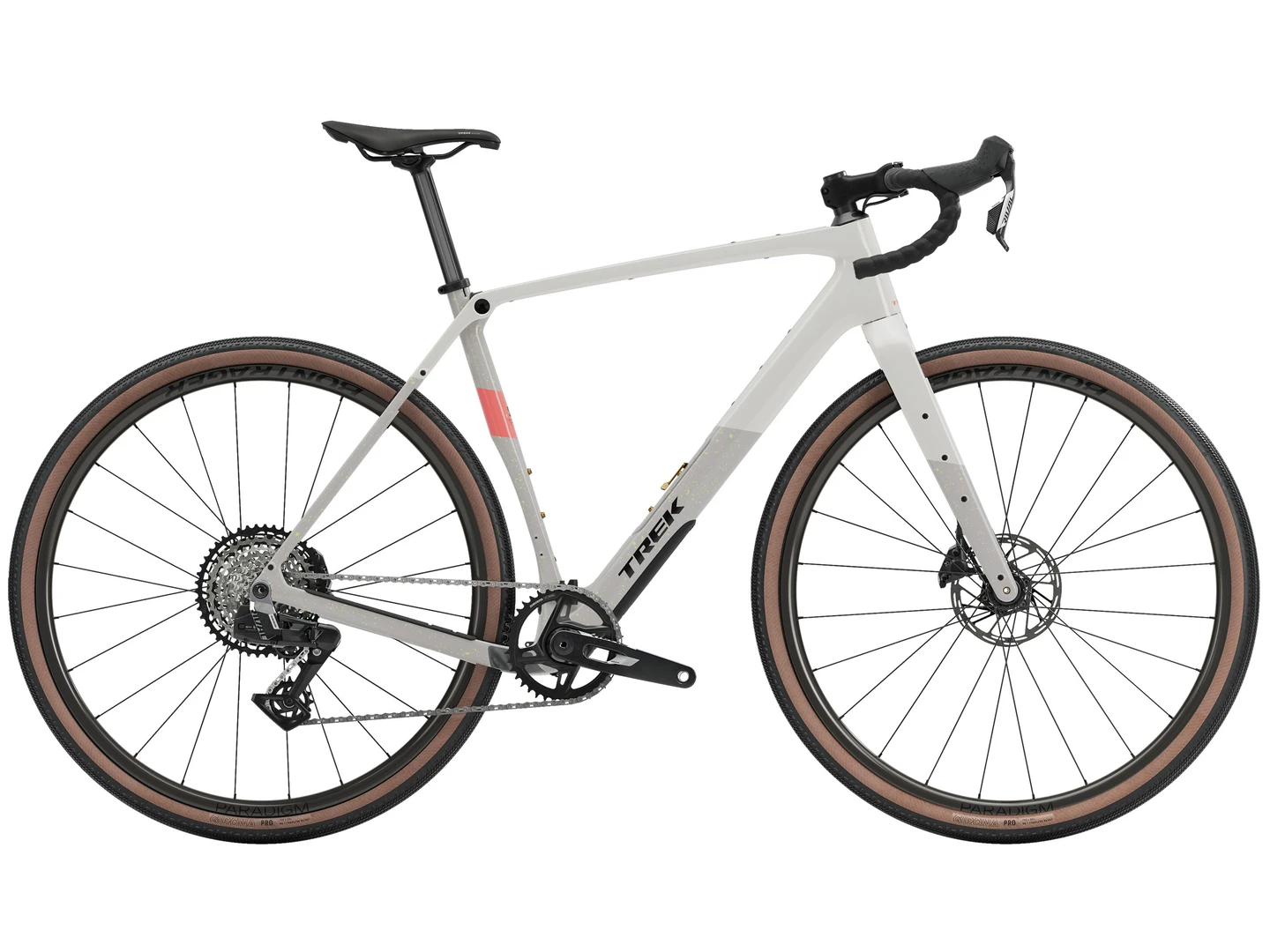

Trek Checkpoint SL 6 AXS White

Gravel Bicycle

Web Price: £3,400.00

68 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Product video available. Please accept marketing cookies to watch this embedded video.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.

Specification

Year	Generation 3
Colour	Era White/Buff Beige
Frame	500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
Fork	Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Rear Shock	N/A
Shifters	SRAM Rival AXS, 13-speed
Rear Mech	SRAM Rival XPLR AXS, 46T max cog
Front Mech	N/A
Bottom Bracket	SRAM DUB Wide, T47 threaded, internal bearing
Chainset	Size: S, XS - SRAM Rival XPLR, 40T, DUB Wide, 165 mm length Size: M - SRAM Rival XPLR, 40T, DUB Wide, 170 mm length Size: L, ML - SRAM Rival XPLR, 40T, DUB Wide, 172.5 mm length Size: XL - SRAM Rival XPLR, 40T, DUB Wide, 175 mm length
Cassette	SRAM Rival XPLR XG-1351, 10-46, 13-speed
Chain	SRAM Flat top
Brakes	SRAM Rival
Pedals	Not Supplied
Wheelset	Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, thru axle
Tyres	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Max. Tyre Width	50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Handlebar	Size: S, XS - Bontrager Elite Gravel, alloy, 40 cm width Size: M, ML - Bontrager Elite Gravel, alloy, 42 cm width Size: L - Bontrager Elite Gravel, alloy, 44 cm width Size: XL - Bontrager Elite Gravel, alloy, 46 cm width
Stem	Size: XS - Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: S, M - Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length Size: L, ML - Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length Size: XL - Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Grips	Bontrager Supertack Perf tape
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Saddle	Verse Short Comp, steel rails, 145 mm width
Headset
Extras

We are an authorised Trek dealer and supply this Trek Checkpoint SL 6 AXS White with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (m)	Rider Inseam (m)
XS	1.43-1.58	0.67-0.74
S	1.58-1.64	0.74-0.77
M	1.64-1.77	0.77-0.83
ML	1.77-1.88	0.83-0.88
L	1.88-1.94	0.88-0.91
XL	1.94-2.03	0.91-0.95

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	XS	S	M	ML	L	XL
Seat Tube C-T mm A	445	480	505	530	550	575
Horiz. Top Tube mm B	536	547	566	578	589	601
Seat Angle C	74.0°	74.0°	73.3°	73.3°	73.3°	73.3°
Head Angle D	71.0°	71.4°	71.6°	72.0°	72.1°	72.4°
Head Tube mm E	86	106	130	151	171	191
Chainstay mm F	430	430	430	430	430	430
BB Offset mm G	76	76	76	76	76	76
Standover mm I	746	776	802	813	837	861
Wheelbase mm J	1013	1022	1034	1042	1052	1062
Reach mm K	380	386	391	397	402	408
Stack mm L	535	556	579	601	620	640
Fork Rake mm M	49	49	49	49	49	49
Fork Trail mm N	71	68	68	64	64	62
Stem Length mm	60	70	80	80	90	100
Bar Width mm	400	420	420	440	440	460
Crank length mm	165	165	170	172.5	172.5	175
Wheel size	700c	700c	700c	700c	700c	700c
