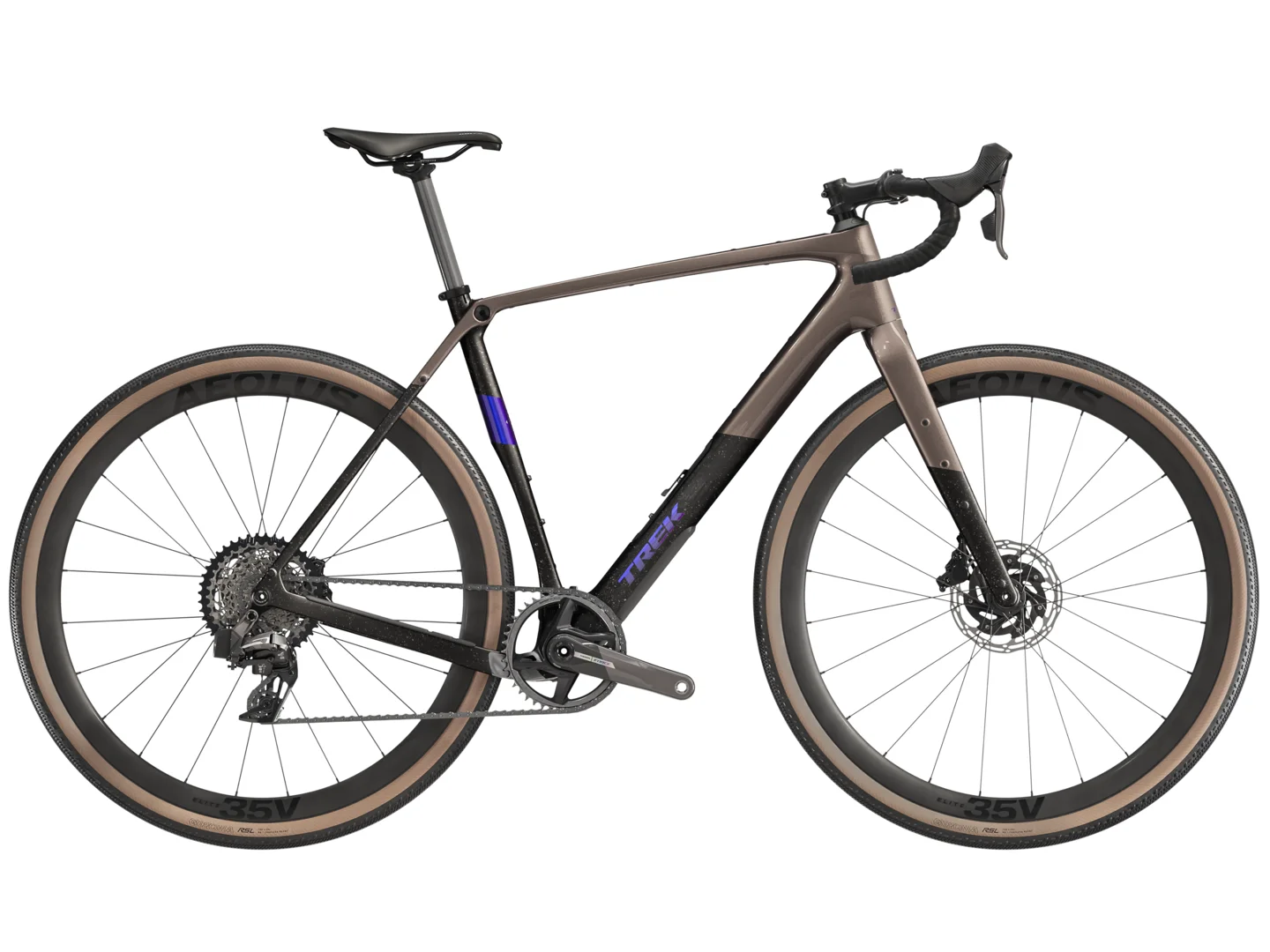

Large Trek Checkpoint SL 7 AXS Gen 3 Bronze Age

SRP £6350 Save 11% Web Price: £5,599.00


Select a size:
Stock StatusDelivery
XS
Call for Alternatives
S
Call for Alternatives
M
In Stock3-5 Working Days
ML
Call for Alternatives
L
Call for Alternatives
XL
Sold Out

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.


Description

The Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond. Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts and clearance for up to 50 mm tyres (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations to help you float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS D2 drivetrain.

Checkpoint SL7 is perfect for you if you're ready to ride further and explore more, and want a gravel bike that's up to the task - and more. You want the road-smoothing benefits of IsoSpeed, plus upgrades that matter, like carbon wheels and SRAM's Force AXS D2 wireless drivetrain.

The Checkpoint SL7 features a 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, clearance for 50 mm tyres (as measured), and frame and fork mounts. A 12-speed 1x SRAM Force XPLR AXS fully wireless drivetrain, hydraulic disc brakes, carbon seat post, and Tubeless Ready Bontrager Aeolus Elite 35V wheels with 42 mm tyres.

Looking for a bike built to go far? Reach for the Checkpoint SL 7 AXS Gen 3. This adventure-tuned gravel rig is purpose-built with chatter-smoothing IsoSpeed and Gravel Endurance geometry, tons of mounts for gear, plus an upgraded drivetrain for clean shifts and carbon wheels to keep things light.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals.


Specification

YearGeneration 3
ColourBronze Age/Carbon Smoke
Frame500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
ForkCheckpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Rear ShockN/A
ShiftersSRAM Force AXS D2, 12-speed
Rear MechSRAM Force XPLR AXS D2, 44T max cog
Front MechN/A
Bottom BracketSRAM DUB, T47 threaded, internal bearing
ChainsetSRAM Force 1 D2, 40T, DUB
CassetteSRAM XG-1271, 10-44, 12-speed
ChainSRAM Force 12 Speed
BrakesSRAM Force AXS hydraulic disc, 160 mm
PedalsNot Supplied
WheelsetBontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth
TyresBontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
HandlebarBontrager Pro Gravel
StemBontrager Pro, 31.8 mm, Blendr-compatible, 7-degree
GripsBontrager Supertack Perf tape
SeatpostBontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
SaddleVerse Short Elite, hollow magnesium rails
Headset
Extras

We are an authorised Trek dealer and supply this Trek Checkpoint SL 7 AXS Gen 3 Bronze Age with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here


Sizing

SizeRider Height (m)Rider Inseam (m)
XS1.43-1.580.67-0.74
S1.58-1.620.74-0.76
M1.62-1.730.76-0.81
ML1.73-1.790.81-0.84
L1.79-1.880.84-0.88
XL1.88-2.130.88-1.00
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Geometry key
Frame SizeXSSMMLLXL
Seat Tube C-T mm A445480505530550575
Horiz. Top Tube mm B536547566578589601
Seat Angle C74.0°74.0°73.3°73.3°73.3°73.3°
Head Angle D71.0°71.4°71.6°72.0°72.1°72.4°
Head Tube mm E86106130151171191
Chainstay mm F430430430430430430
BB Offset mm G767676767676
Standover mm I746776802813837861
Wheelbase mm J101310221034104210521062
Reach mm K380386391397402408
Stack mm L535556579601620640
Fork Rake mm M494949494949
Fork Trail mm N716868646462
Stem Length mm6070808090100
Bar Width mm400420420440440460
Crank length mm165165170172.5172.5175
Wheel size700c700c700c700c700c700c
