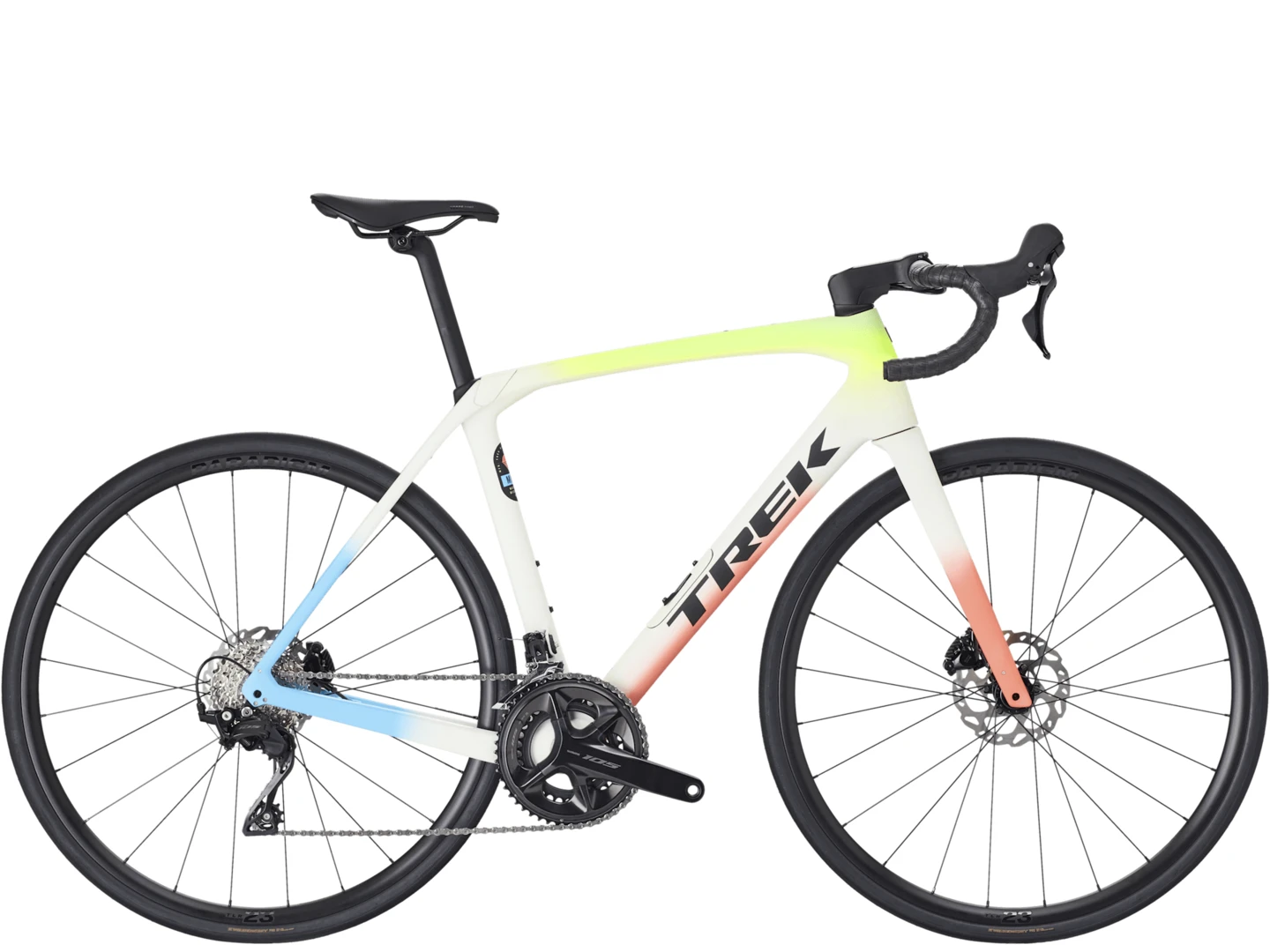

Trek Domane SL 5 Era White

Road Endurance Bicycle

Web Price: £2,800.00

56 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

The all-new, 4th generation, Trek Domane is here.
Key features of the 4th generation Domane over previous generations are:
- Lower weight thanks to a simplified frame, refined rear IsoSpeed and an upgraded carbon frame that shaves weight without sacrificing comfort.
- Newly-refined rear IsoSpeed comfort technology shaves weight and soaks up fatiguing bumps in the road so you can ride stronger longer.
- Updated Kammtail tube shaping and a newly-integrated cockpit improve aerodynamics for Trek's fastest Domane yet.
- Clearance for up to 38c tyres and a stable, comfortable endurance geometry give riders the versatility to ride everything from smooth pavement to light gravel and even the infamous cobbles of Roubaix.
- Internal downtube storage, hidden mudguard mounts and new top tube bag mounts give riders the option to keep their Domane lean and clean or fully accessorised for all-day rides.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.

Specification

Year	Generation 4
Colour	Era White/Glowstick/Coral Fade
Frame	500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
Fork	Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Rear Shock	N/A
Shifters	Shimano 105 R7120, 12-speed
Rear Mech	Shimano 105 R7100, 36T max cog
Front Mech	Shimano 105 R7100, braze-on, down swing
Bottom Bracket	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54Praxis, T47 threaded, internal bearing
Chainset	Size: 44, 47, 50
Cassette	Shimano 105 7101, 11-34, 12-speed
Chain	Shimano SLX M7100, 12-speed
Brakes	Shimano 105
Pedals	Not Supplied
Rims	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Hubs	F: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle R: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Spokes	14 g stainless steel, black
Tyres	TBC
Max. Tyre Width	38 mm without mudguards, 35 mm with mudguards (as measured, see manual for details)
Handlebar	Size: 44, 47 - Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width Size: 50, 52 - Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width Size: 56, 58, 54 - Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width Size: 60, 62 - Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Stem	Size: 44 - Trek RCS Pro, -7-degree, 60 mm length Size: 47 - Trek RCS Pro, -7-degree, 70 mm length Size: 50 - Trek RCS Pro, -7-degree, 80 mm length Size: 52, 54 - Trek RCS Pro, -7-degree, 90 mm length Size: 56, 58 - Trek RCS Pro, -7-degree, 100 mm length Size: 60, 62 - Trek RCS Pro, -7-degree, 110 mm length
Grips	Trek EcoTack
Seatpost	Size: 44, 56, 47, 50, 52, 54 - KVF aero carbon seat post, 20 mm offset, 280 mm length Size: 58, 60, 62 - KVF aero carbon seat post, 20 mm offset, 320 mm length
Saddle	Verse Short Comp, steel rails, 145 mm width
Headset
Extras

We are an authorised Trek dealer and supply this Trek Domane SL 5 Era White with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
50	5'2"-5'5"	1.57-1.64
52	5'4"-5'7"	1.62-1.69
54	5'6"-5'9"	1.67-1.74
56	5'8"-5'11"	1.73-1.80
58	5'10"-6'1"	1.79-1.86
60	6'0"-6'3"	1.84-1.91
62	6'2"-6'5"	1.89-1.96

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	47 cm	50 cm	52 cm	54 cm	56 cm	58 cm	60 cm	62 cm
Seat Tube C-T mm A	420	450	475	500	525	548	567	586
Horiz. Top Tube mm B	509	519	530	542	554	567	579	593
Seat Angle C	74.6°	74.6°	74.2°	73.7°	73.3°	73.0°	72.8°	72.5°
Head Angle D	71.0°	71.1°	71.3°	71.3°	71.9°	72.0°	72.1°	72.1°
Head Tube mm E	110	130	145	160	175	195	220	245
Chainstay mm F	420	420	420	420	420	425	425	425
BB Offset mm G	80	80	80	80	78	78	75	75
Standover mm I	686	716	735	754	776	796	817	835
Wheelbase mm J	986	996	1003	1010	1008	1022	1032	1042
Reach mm K	364	368	371	374	377	380	383	386
Stack mm L	527	546	561	575	591	611	632	656
Fork Rake mm M	53	53	53	53	48	48	48	48
Fork Trail mm N	61	60	59	59	61	60	59	59
Stem Length mm	700	800	900	900	1000	1000	1100	1100
Bar Width mm	3600	3800	4000	4200	4200	4400	4400	4400
Crank length mm	1650	1700	1700	1725	1725	1750	1750	1750
Wheel size	700c	700c	700c	700c	700c	700c	700c	700c
Saddle rail height min (w/stock mast)	555	585	615	640	670	690	710	730
Saddle rail height max (w/stock mast)	620	650	680	705	735	755	775	795
