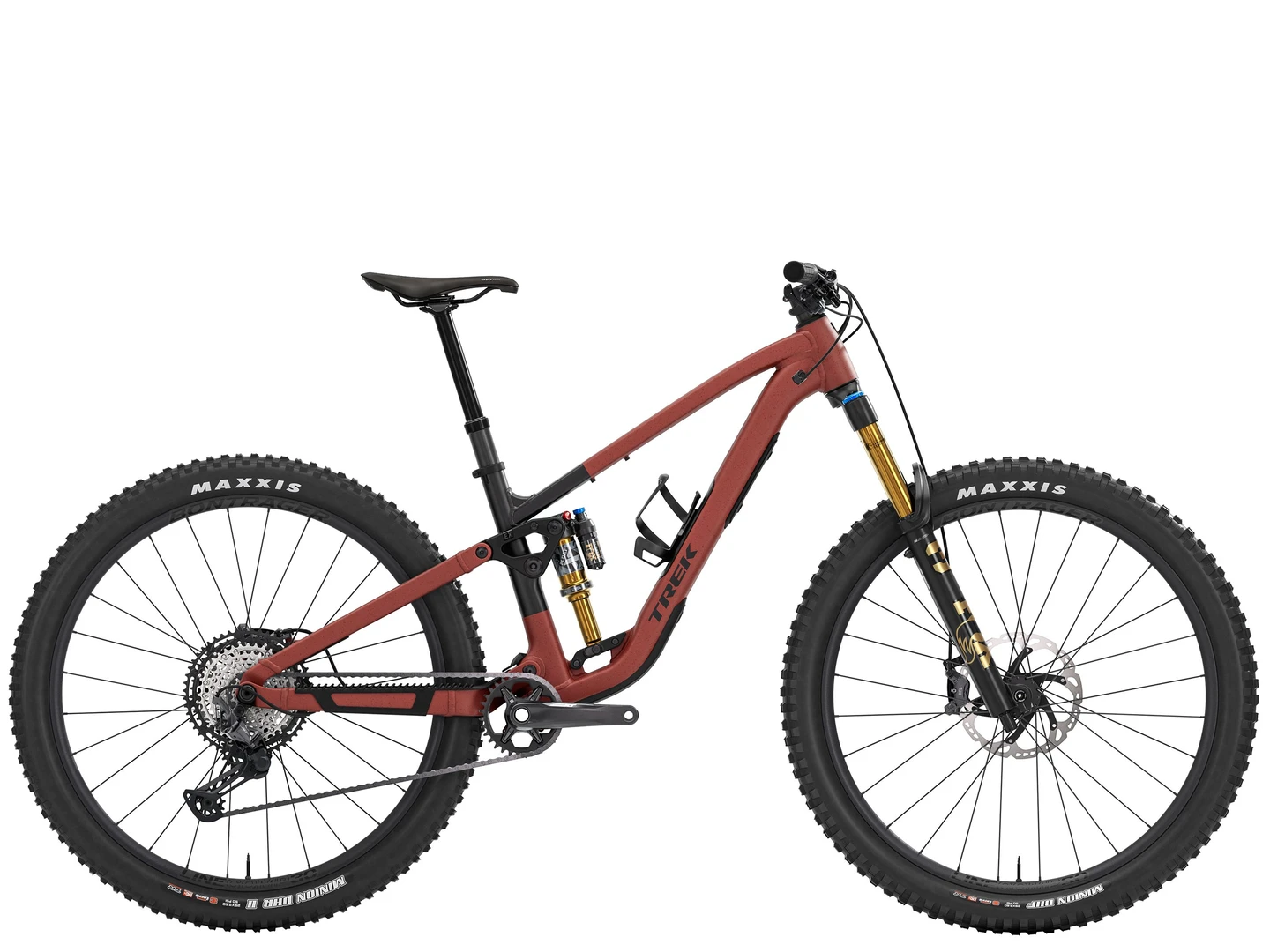

Trek Fuel EX 9 XT Sedona Red

Trail Bicycle

Web Price: £4,925.00

98 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Select a size:

Stock StatusDelivery

ETA - September

In Supplier Warehouse7-11 Working Days

ETA - September

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Product video available. Please accept marketing cookies to watch this embedded video.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Important Note: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.

Specification

Year	Generation 7
Colour	Matte Sedona Red/Pennyflake Splatter
Frame	Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
Fork	Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 150 mm travel
Rear Shock	Fox Factory Float X, 205 mm x 60 mm
Shifters	Shimano XT M8100, 12-speed
Rear Mech	Shimano XT M8100, long cage
Front Mech	N/A
Bottom Bracket	Shimano BB-MT501 BSA
Chainset	Shimano XT M8120, 30T, 55 mm chain line, 170 mm length
Cassette	Shimano XT M8200, 10-51, 12-speed
Chain	Shimano XT M8100, 12-speed
Brakes	Shimano XT M8200 4-piston hydraulic disc
Pedals	Not Supplied
Wheelset	F: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" (27.5" Small) R: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 29" (27.5" Small)
Tyres	Size: S - Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' Size: XL, L, M - Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Handlebar	Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
Stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
Grips	Trek Line Elite, lock-on
Seatpost	Size: S - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length Size: M - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length Size: XL, L - Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Saddle	Verse Short Comp, steel rails, 145 mm width
Headset	FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Extras

We are an authorised Trek dealer and supply this Trek Fuel EX 9 XT Sedona Red with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Year	Generation 7
Colour	Lithium Grey/Trek Black Splatter
Frame	Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
Fork	Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
Rear Shock	X-Fusion Pro 2, 2-position damper, 205 mm x 60mm
Shifters	Shimano Deore M6100, 12-speed
Rear Mech	Shimano Deore M6100, long cage
Front Mech	N/A
Bottom Bracket	Shimano BB-MT501 BSA
Chainset	Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100, 12-speed
Brakes	Shimano hydraulic disc, MT201 lever, MT200 calliper
Pedals	Not Supplied
Rims	Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Hubs	F: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle R: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Spokes
Tyres	Size: S - Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" Size: XL, L, M - Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
Handlebar	Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Stem	Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Grips	Trek Line Comp, nylon lock-on
Seatpost	Size: S - TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm Size: XL, L, M - TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
Saddle	Bontrager Verse Short, stainless steel rails
Headset	FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Extras

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	S	M	L	XL
Seat Tube C-T mm A	370	400	420	455
Seat Tube C-T in A	15.5"	17.5"	19.5"	21.5"
Horiz. Top Tube mm B	548	583	617	651
Seat Angle C	72.7°	72.6°	72.6°	72.6°
Head Angle D	64.6°	64.5°	64.5°	64.5°
Head Tube mm E	95	110	125	140
Chainstay mm F	437	437	442	447
BB Offset mm G	34	35	35	35
BB Height mm H	340	339	339	339
Standover mm I	748	744	747	758
Wheelbase mm J	1187	1225	1262	1298
Reach mm K	431	460	485	510
Stack mm L	610	624	638	651
Fork Rake mm M	44	44	44	44
Fork Trail mm N	129	129	129	129
Wheel size	29"	29"	29"	29"
