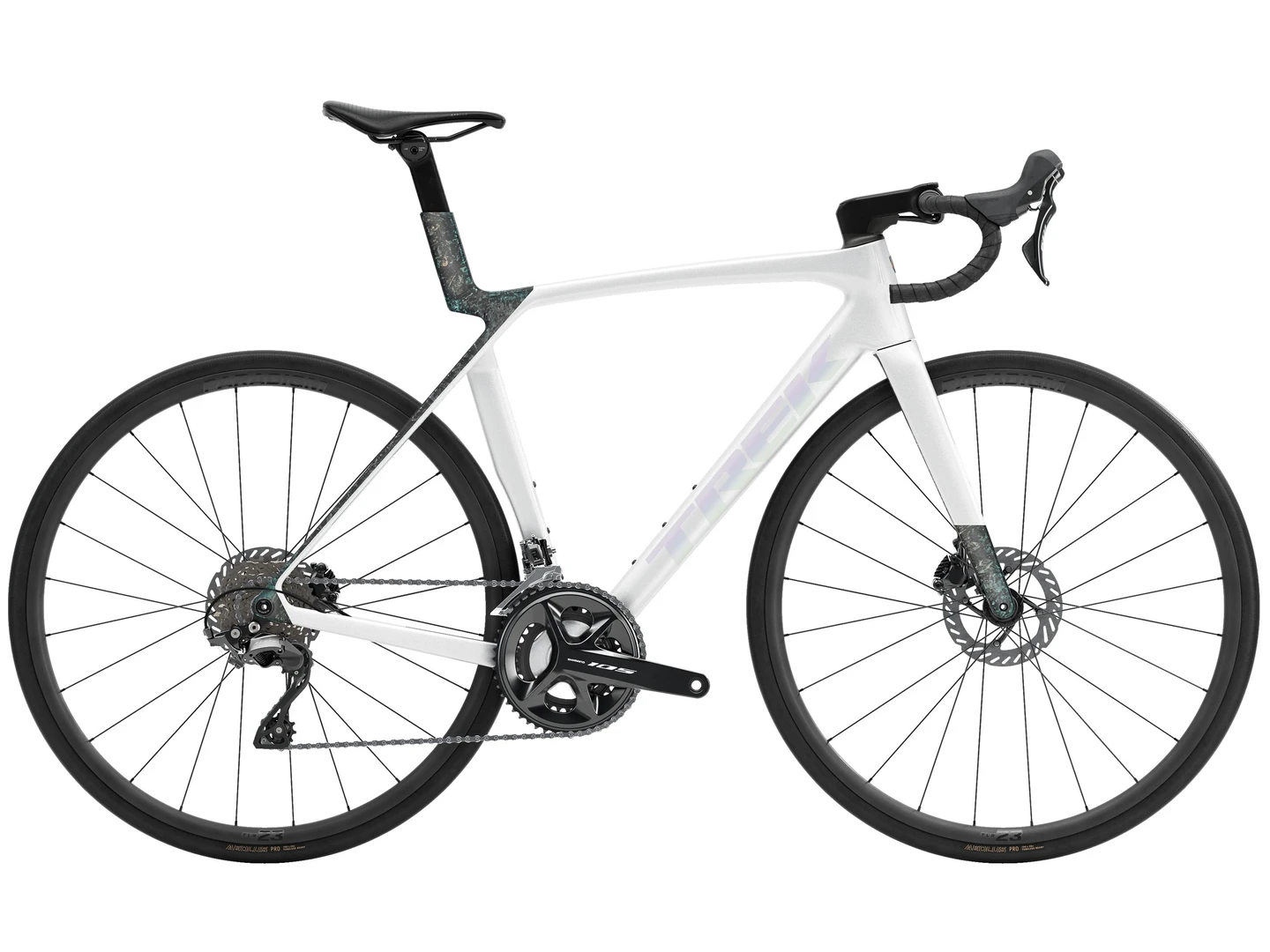

Trek Madone SL 5 Crystal White

Road Race Bicycle

Web Price: £2,900.00

58 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Product video available. Please accept marketing cookies to watch this embedded video.

The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a great price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents. A Shimano 105 group set keeps the price down while still delivering clean mechanical shifting you can trust.

The Madone SL 5 is right for you if you want a featherweight road race bike without top-end race pricing. You're up for racing, club rides or solo spins, and don't want to compromise between climbing efficiency and aerodynamics.

Key technical features of the Madone SL5 are an ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2x12 Shimano 105 group set that delivers clean mechanical shifts without the faff of electronic group sets. Tubeless wheels that help fight punctures while reducing rolling resistance, and hydraulic disc brakes.

The Madone SL 5 Gen 8 is the perfect bike for someone looking for superbike performance at an accessible price point. It offers the same frame tech as its SLR sibling, like aero tube shaping and lightweight IsoFlow comfort tech, but with a more economical build that leaves budget to spare for race entry fees and bike trips.

Important Note: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.

Specification

Year	Generation 8
Colour	Gloss Crystal White/Matte Deep Smoke
Frame	500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
Rear Shock	N/A
Shifters	Shimano 105 R7100 12 Speed
Rear Mech	Shimano 105 R7100, 36T max cog
Front Mech	Shimano 105 R7100, braze-on, down swing
Bottom Bracket	Praxis, T47 threaded, internal bearing
Chainset	Size: S, XS - Shimano 105 R7100, 50/34, 165 mm length Size: M, ML - Shimano 105 R7100, 50/34, 170 mm length Size: XL, L - Shimano 105 R7100, 50/34, 172.5 mm length
Cassette	Shimano 105 7101, 11-34, 12-speed
Chain	Shimano SLX M7100, 12-speed
Brakes	Shimano 105
Pedals	Not Supplied
Rims	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Hubs	F: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Spokes	14 g stainless steel, black
Tyres	Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
Max. Tyre Width	32 mm (as measured, see manual for details)
Handlebar	Size: XS - Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width Size: S, M - Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width Size: L, ML - Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width Size: XL - Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Stem	Size: XS - Trek RCS Pro, -7-degree, 80 mm length Size: S, M - Trek RCS Pro, -7-degree, 90 mm length Size: L, ML -Trek RCS Pro, -7-degree, 100 mm length Size: XL - Trek RCS Pro, -7-degree, 110 mm length
Grips	Trek EcoTack
Seatpost	Madone aero carbon seat post, 0 mm offset, short length
Saddle	Bontrager Aeolus Elite, austenite rails, 145 mm width
Headset
Extras

We are an authorised Trek dealer and supply this Trek Madone SL 5 Crystal White with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (m)	Rider Inseam (m)
XS	1.43-1.58	0.67-0.74
S	1.58-1.62	0.74-0.76
M	1.62-1.73	0.76-0.81
ML	1.73-1.79	0.81-0.84
L	1.79-1.88	0.84-0.88
XL	1.88-2.13	0.88-1.00

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	XS	S	M	ML	L	XL
Seat Tube C-T mm A	404	440	476	512	548	609
Horiz. Top Tube mm B	517	532	545	557	568	584
Seat Angle C	73.8°	73.8°	73.6°	73.4°	73.4°	73.4°
Head Angle D	71.6°	72.2°	72.9°	73.5°	73.8°	73.9°
Head Tube mm E	100	121	136	150	172	201
Chainstay mm F	410	410	410	410	411	412
BB Offset mm G	72	72	70	70	68	68
Standover mm I	709	740	768	794	825	869
Wheelbase mm J	971	976	981	980	990	1007
Reach mm K	370	378	384	389	394	402
Stack mm L	507	530	546	562	582	610
Fork Rake mm M	50	45	45	40	40	40
Fork Trail mm N	61	62	58	59	57	57
Stem Length mm	80	90	90	100	100	110
Bar Width mm	36	38	38	40	40	42
Crank length mm	165	165	170	172.5	172.5	175
Wheel size	700C	700C	700C	700C	700C	700C
Saddle rail height min (w/stock mast)	549	585	621	657	693	754
Saddle rail height max (w/stock mast)	654	690	726	762	798	859
