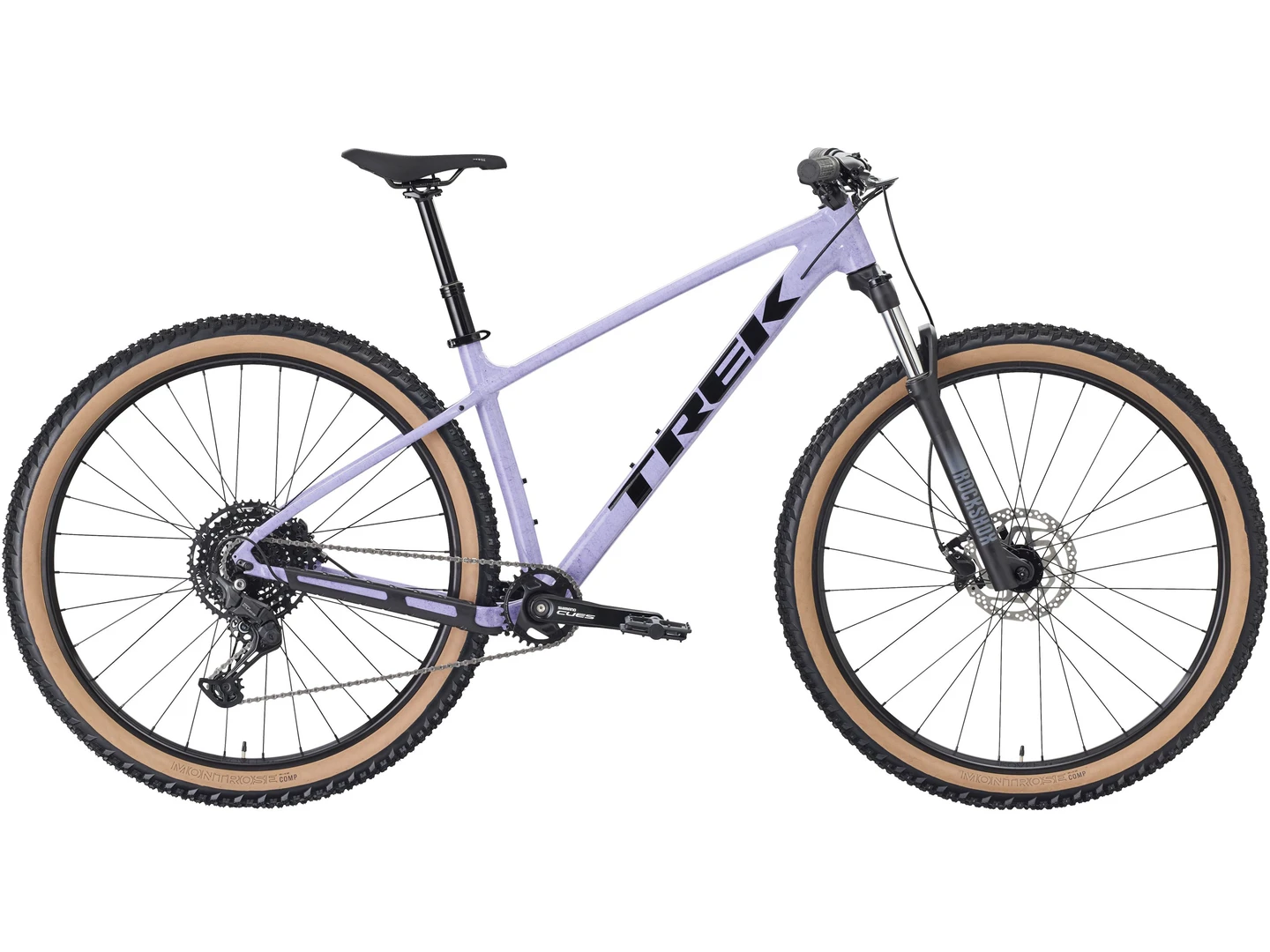

Trek Marlin 6 Lavender Haze

Cross Country Bicycle

Web Price: £850.00

17 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Select a size:

Stock StatusDelivery

In Supplier Warehouse7-11 Working Days

ETA - September

In Supplier Warehouse7-11 Working Days

ETA - October

In Supplier Warehouse7-11 Working Days

XXL

In Supplier Warehouse7-11 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Product video available. Please accept marketing cookies to watch this embedded video.

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

Marlin 6 features a lightweight aluminium frame with modern trail riding geometry and internal routing that keeps cables protected and keeps the bike looking sleek. A 100 mm RockShox Judy front suspension fork that cushions rocks, roots and bumps in the trail, 10-speed fuss-free Shimano CUES shifting and the serious stopping power of hydraulic disc brakes.

The Marlin 6 is an ideal trail bike for riders who want to progress on the dirt, and want a bike that can keep them rolling off of the trail, too.

Specification

Year	Generation 3
Colour	Gloss Lavender Haze
Frame	Size: XS - Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew Size: ML , M , L , S , XL , XXL - Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork	Size: XS , S - RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel Size: ML , M , L , XL , XXL - RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Rear Shock	N/A
Shifters	Shimano U6000, 10-speed
Rear Mech	Shimano CUES U6000 GS
Front Mech
Bottom Bracket	Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Chainset	Size: ML , M , XS , S - Shimano U4000, 30T chainring, 170 mm length Size: L , XL , XXL - Shimano U4000, 30T chainring, 175 mm length
Cassette	Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain	Shimano LG500
Brakes	Shimano MT200 hydraulic disc
Pedals	VP-536 nylon platform
Rims	Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Hubs	F: Formula DC-20, alloy, 6-bolt, 100 mm R: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Spokes
Tyres	Size: XS , S - Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35'' Size: ML , M , L , XL , XXL - Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35"
Handlebar	Size: XS - Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size: S - Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width Size: ML , M , L , XL , XXL - Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Stem	Trek Line Comp, nylon lock-on
Grips	Size: XS , S - Bontrager Comp, 31.8 mm, 7-degree, 35 mm length Size: ML , M , L - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size: XL - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length Size: XXL - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Seatpost	Size: XS , S - TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm, 350 mm length Size: M - TranzX JD-YSI34, 125 mm travel, internal routing, 34.9 mm, 405 mm length Size: ML , L , XL - TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, 456 mm length Size: XXL - TranzX JD-YSI34, 170 mm travel, internal routing, 34.9 mm, 500 mm length
Saddle	Bontrager Verse Short, stainless steel rails
Headset
Extras

We are an authorised Trek dealer and supply this Trek Marlin 6 Lavender Haze with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
XXS	4'5"-4'9"	1.35-1.45
XS	4'9"-5'1"	1.45-1.55
S	5'1"-5'5"	1.55-1.65
M	5'5"-5'9"	1.65-1.76
ML	5'8"-5'11"	1.73-1.80
L	5'10"-6'2"	1.77-1.88
XL	6'2"-6'5"	1.88-1.95
XXL	6'5"-6'8"	1.95-2.03

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	XS	S	M	ML	L	XL	XXL
Seat Tube C-T mm A	340	370	419	444	470	521	559
Horiz. Top Tube mm B	551	579	602	618	638	659	673
Seat Angle C	73.8°	73.8°	71.9°	71.9°	71.9°	71.9°	71.9°
Head Angle D	66.5°	66.5°	69.5°	69.5°	69.5°	69.5°	69.5°
Head Tube mm E	90	100	90	90	100	120	120
Chainstay mm F	433	433	438	438	438	438	438
BB Offset mm G	45	45	58	58	58	58	58
BB Height mm H	313	313	310	310	310	310	311
Standover mm I	658	692	748	758	757	769	804
Wheelbase mm J	1092	1121	1100	1116	1137	1159	1173
Reach mm K	390	415	418	434	451	466	480
Stack mm L	563	572	602	602	611	630	630
Fork Rake mm M	42	42	42	42	42	42	42
Fork Trail mm N	110	110	93	93	93	93	93
Wheel size	27.5"	27.5"	29"	29"	29"	29"	29"

Cycle to Work

This Trek Marlin 6 Lavender Haze is available for purchase using vouchers from the Green Commute Initiative, Cyclescheme and Gogeta. We also accept payments from My Benefits World, EnjoyBenefits, Vivup and Cycle Solutions. Please read the information provided on each scheme's webpage to understand the process which needs to be followed to pay by these methods.

Finance

This Trek Marlin 6 Lavender Haze is available with the following finance products. To apply for a finance package simply select it at checkout and you'll be forwarded to Novuna Personal Finance's website to complete your application.

Buy Now Pay Later - Nothing to pay for 12 months other than the initial 10% deposit. Settle your loan within the first 12 months and there's no interest to pay, just a £29 settlement fee. After the initial 12 months payment holiday period you'll repay your loan in 48 monthly instalments which are subject to interest.
Interest Free - A loan free of interest. Pay an inital 10% or 20% deposit and then repay the remaining balance in monthly instalments.

Finance Product	Buy Now Pay Later	12 Months Interest Free
Eligible for Podium Point promotion	Yes	Yes, Deduct 10
APR representative	24.9%	0%
Payment Holiday	12 Months	No
Fee if settled in Holiday	£29	-
Cash Price	£850.00	£850.00
Deposit	£85.00	£85.00
Total Credit	£765.00	£765.00
Repayments	48	12
Monthly Amount	£29.78	£63.75
Total Amount Payable	£1514.22	£850.00
More Details	Full Details	Full Details

Please note the above quotation is an indicative cost and actual monthly payments may vary by +/- 2p per month.

The credit advertised is provided by one credit provider with whom we have a commercial relationship. Credit is provided by Novuna Personal Finance, a trading style of Mitsubishi HC Capital UK PLC, authorised and regulated by the Financial Conduct Authority.
