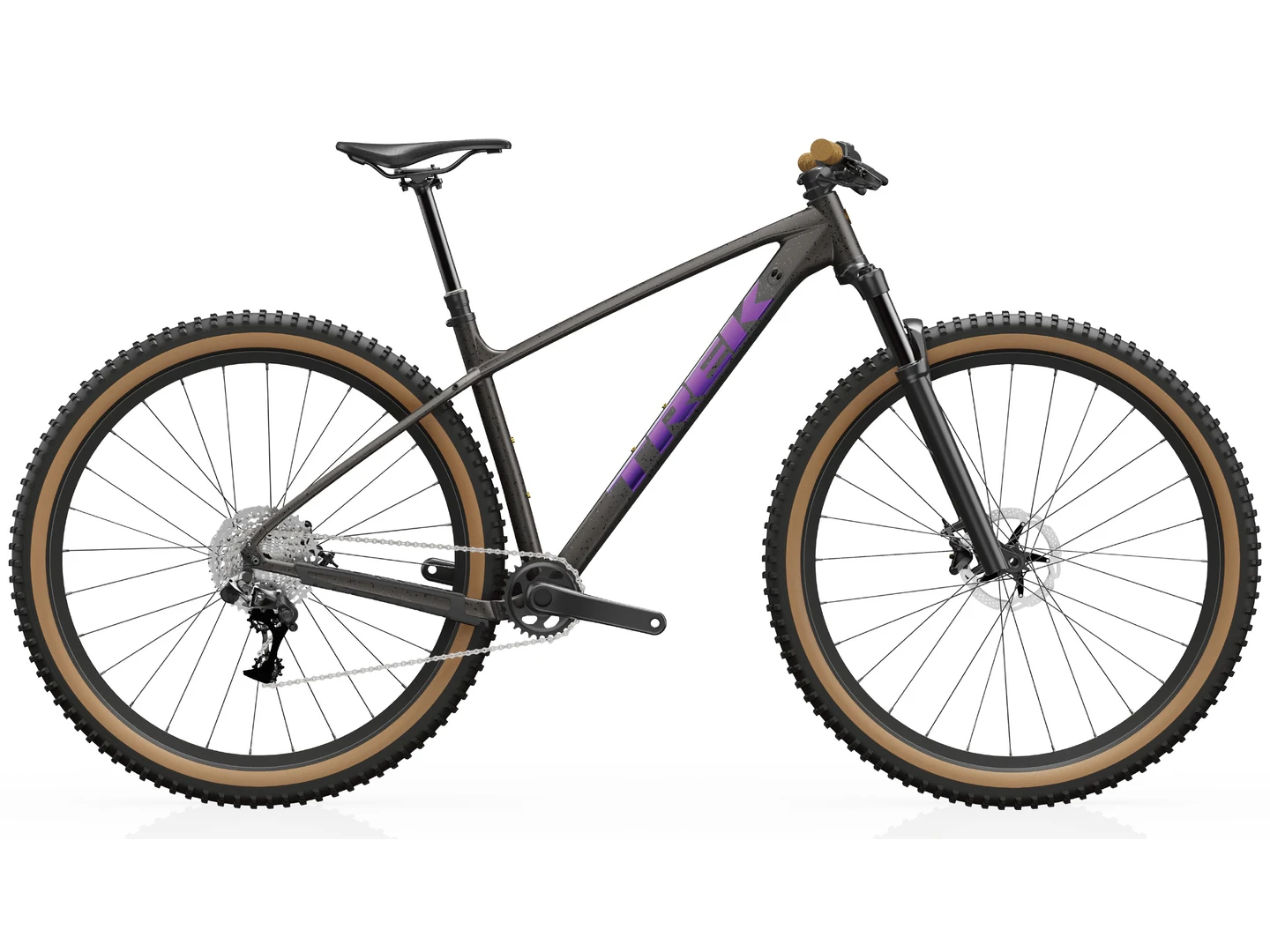

Trek Marlin 7 Dark Web

Cross Country Bicycle

Web Price: £1,000.00

20 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Select a size:

Stock StatusDelivery

In Supplier Warehouse7-11 Working Days

ETA - February

In Supplier Warehouse7-11 Working Days

XXL

In Supplier Warehouse7-11 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Product video available. Please accept marketing cookies to watch this embedded video.

The Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It finds the perfect balance between price and performance with a RockShox suspension fork that makes quick work of rocks and bumps in your path, and loads of gears from the SRAM NX Eagle 12-speed drivetrain.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.

Specification

Year	Generation 3
Colour	Matte Dark Web/Clear Gloss Splatter
Frame	Size: XS - Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew Size: ML , M , L , S , XL , XXL - Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork	Size: XS , S - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel Size: ML , M , L , XL , XXL - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Rear Shock	N/A
Shifters	SRAM SX Eagle, 12-speed
Rear Mech	SRAM NX Eagle, 12-speed
Front Mech
Bottom Bracket	Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Chainset	Size: M , XS , S - SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length Size: ML , L , XL , XXL - SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length
Cassette	SRAM PG-1210 Eagle, 11-50, 12-speed
Chain	SRAM SX Eagle, 12-speed
Brakes	Shimano MT200 hydraulic disc
Pedals	VP-536 nylon platform
Rims	Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Hubs	F: Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR R: Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Spokes
Tyres	Size: XS , S - Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.40'' Size: ML , M , L , XL , XXL - Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40''
Handlebar	Size: XS - Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size: S - Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width Size: ML , M , L , XL , XXL - Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Stem	Trek Line Comp, nylon lock-on
Grips	Size: XS , S - Bontrager Comp, 31.8 mm, 7-degree, 35 mm length Size: ML , M , LBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size: XLBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length Size: XXLBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Seatpost	Size: XS , S - TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm, 350 mm length Size: M - TranzX JD-YSI34, 125 mm travel, internal routing, 34.9 mm, 405 mm length Size: ML , L - TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, 456 mm length Size: XL , XXL - TranzX JD-YSI34, 170 mm travel, internal routing, 34.9 mm, 500 mm length
Saddle	Bontrager Verse Short, stainless steel rails
Headset
Extras

We are an authorised Trek dealer and supply this Trek Marlin 7 Dark Web with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
XXS	4'5"-4'9"	1.35-1.45
XS	4'9"-5'1"	1.45-1.55
S	5'1"-5'5"	1.55-1.65
M	5'5"-5'9"	1.65-1.76
ML	5'8"-5'11"	1.73-1.80
L	5'10"-6'2"	1.77-1.88
XL	6'2"-6'5"	1.88-1.95
XXL	6'5"-6'8"	1.95-2.03

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	XS	S	M	ML	L	XL	XXL
Seat Tube C-T mm A	340	370	419	444	470	521	559
Horiz. Top Tube mm B	551	579	602	618	638	659	673
Seat Angle C	73.8°	73.8°	71.9°	71.9°	71.9°	71.9°	71.9°
Head Angle D	66.5°	66.5°	69.5°	69.5°	69.5°	69.5°	69.5°
Head Tube mm E	90	100	90	90	100	120	120
Chainstay mm F	433	433	438	438	438	438	438
BB Offset mm G	45	45	58	58	58	58	58
BB Height mm H	313	313	310	310	310	310	311
Standover mm I	658	692	748	758	757	769	804
Wheelbase mm J	1092	1121	1100	1116	1137	1159	1173
Reach mm K	390	415	418	434	451	466	480
Stack mm L	563	572	602	602	611	630	630
Fork Rake mm M	42	42	42	42	42	42	42
Fork Trail mm N	110	110	93	93	93	93	93
Wheel size	27.5"	27.5"	29"	29"	29"	29"	29"
