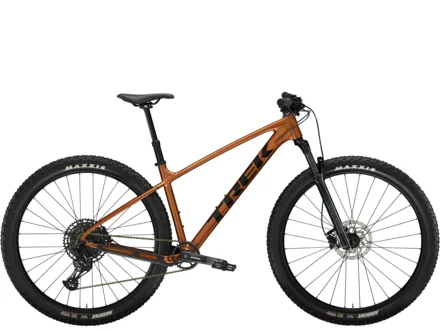

Trek Marlin 7 Pennyflake

Cross Country Bicycle

SALE

SRP £1100 Save 13% Web Price: £950.00

Select a size:

Stock StatusDelivery

XXS

Sold Out

Call for Alternatives

In Stock3-5 Working Days

Call for Alternatives

XXL

Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.

Specification

Year	Generation 3
Frame	Size: XXS , XS - Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew Size: S , M , ML , L , XL , XXL - Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork	Size: XXS - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel Size: XS , S - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel Size: M , ML , L , XL , XXL - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Rear Shock
Shifters	SRAM SX Eagle, 12-speed
Rear Mech	SRAM SX Eagle
Front Mech
Bottom Bracket	Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Chainset	SRAM SX Eagle, 30T steel ring, 49 mm chainline
Cassette	SRAM PG-1210 Eagle, 11-50, 12-speed
Chain	SRAM SX Eagle, 12-speed
Brakes	Shimano MT200 hydraulic disc
Pedals	VP-536 nylon platform
Wheelset	Rim: Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve. Hub F: Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR. Hub R: Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Tyres	Size: XXS - Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35" Size: XS, S - Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35" Size: M,ML,L,XL,XXL - Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35"
Handlebar	Bontrager alloy, 31.8 mm, riser
Stem	Bontrager Comp, 31.8 mm, 7-degree. XXS,XS, S - 35mm. M, ML, L - 50mm. XL - 60mm. XXL - 70mm.
Grips	Bontrager XR Trail Comp, nylon lock-on
Seatpost	TranzX JD-YSP18 dropper, internal routing, 31.6 mm. XXS/XS/S - 100 mm travel, 361 mm length. M - 130 mm travel, 425 mm length. ML/L/XL/XXL - 150 mm travel, 470 mm length.
Saddle	Bontrager Verse Short, stainless steel rails
Headset	Semi-integrated, 1-1/8"
Extras

We are an authorised Trek dealer and supply this Trek Marlin 7 Pennyflake with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)
XXS	4'5"-4'9"	1.35-1.45
XS	4'9"-5'1"	1.45-1.55
S	5'1"-5'5"	1.55-1.65
M	5'5"-5'9"	1.65-1.76
ML	5'8"-5'11"	1.73-1.80
L	5'10"-6'2"	1.77-1.88
XL	6'2"-6'5"	1.88-1.95
XXL	6'5"-6'8"	1.95-2.03

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	XXS	XS	S	M	ML	L	XL	XXL
Horiz. Top Tube mm B	521	551	579	615	631	647	678	707
Seat Angle C	74.0°	74.0°	74.0°	74.0°	74.0°	74.0°	74.0°	74.0°
Head Angle D	66.5°	66.5°	66.5°	66.5°	66.5°	66.5°	66.5°	66.5°
Head Tube mm E	90	90	100	105	110	115	135	150
Chainstay mm F	433	433	433	438	438	438	438	438
BB Offset mm G	38	45	45	60	60	60	60	60
BB Height mm H	302	313	313	308	308	308	308	308
Standover mm I	650	658	692	747	759	771	791	816
Wheelbase mm J	1060	1092	1121	1163	1180	1197	1230	1261
Reach mm K	365	390	415	440	455	470	495	520
Stack mm L	544	563	572	609	614	618	637	651
Fork Rake mm M	10	42	42	46	46	46	46	46
Fork Trail mm N	104	110	110	110	110	110	110	110
Wheel size	26"	27.5"	27.5"	29"	29"	29"	29"	29"

Cycle to Work

This Trek Marlin 7 Pennyflake is available for purchase using vouchers from the Green Commute Initiative, Cyclescheme and Gogeta. We also accept payments from My Benefits World, EnjoyBenefits, Vivup and Cycle Solutions. Please read the information provided on each scheme's webpage to understand the process which needs to be followed to pay by these methods.

Finance

This Trek Marlin 7 Pennyflake is available with the following finance products. To apply for a finance package simply select it at checkout and you'll be forwarded to Novuna Personal Finance's website to complete your application.

Buy Now Pay Later - Nothing to pay for 12 months other than the initial 10% deposit. Settle your loan within the first 12 months and there's no interest to pay, just a £29 settlement fee. After the initial 12 months payment holiday period you'll repay your loan in 48 monthly instalments which are subject to interest.

Finance Product	Buy Now Pay Later
Eligible for Podium Point promotion	No
APR representative	24.9%
Payment Holiday	12 Months
Fee if settled in Holiday	£29
Cash Price	£950.00
Deposit	£95.00
Total Credit	£855.00
Repayments	48
Monthly Amount	£33.28
Total Amount Payable	£1692.36
More Details	Full Details

Please note the above quotation is an indicative cost and actual monthly payments may vary by +/- 2p per month.

The credit advertised is provided by one credit provider with whom we have a commercial relationship. Credit is provided by Novuna Personal Finance, a trading style of Mitsubishi HC Capital UK PLC, authorised and regulated by the Financial Conduct Authority.
