Large Trek Marlin+ 6 Crimson

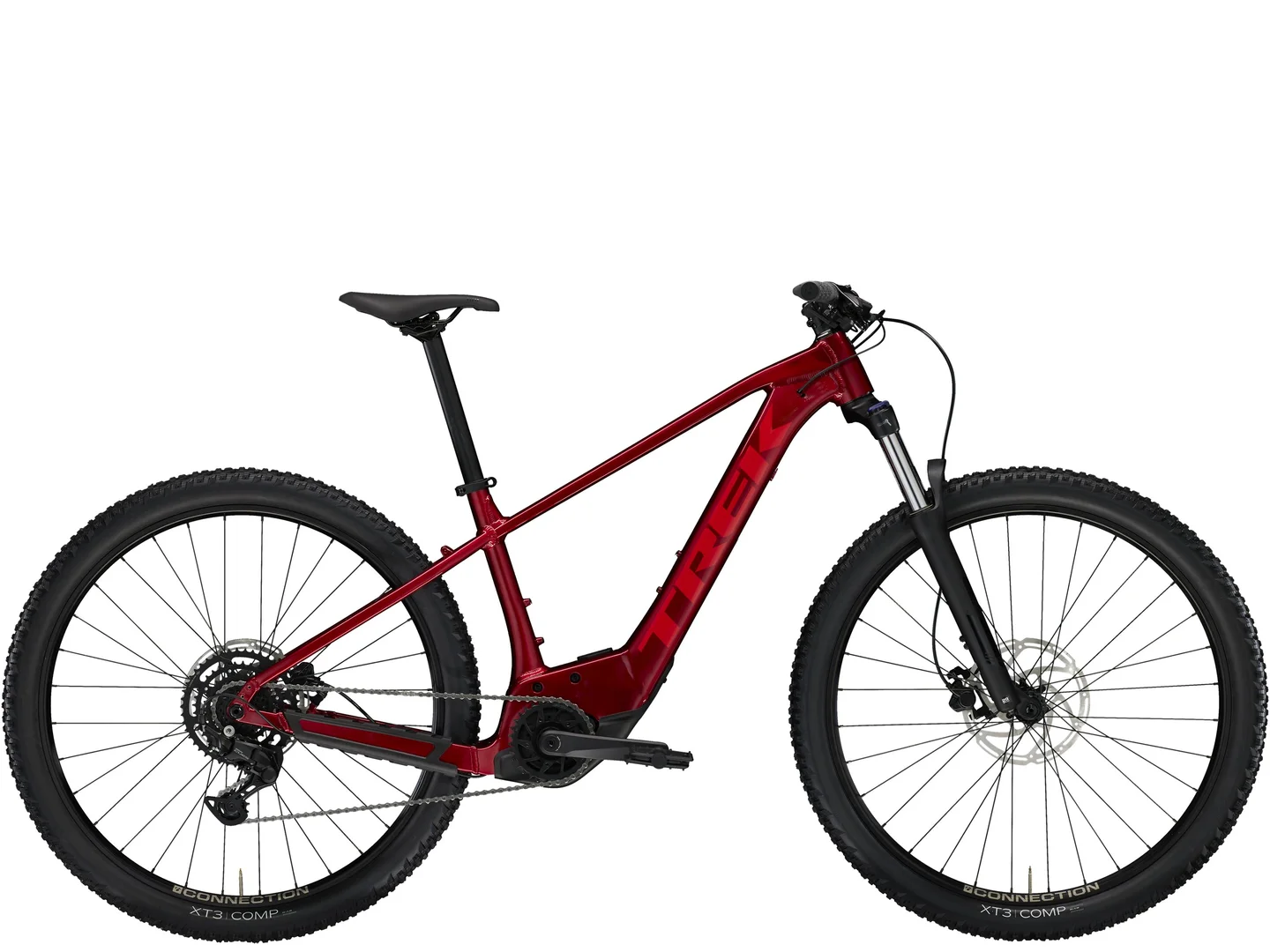

Trek Marlin+ 6 Crimson

Trail Electric Bicycle
Trek Marlin+ 6 Crimson
SALE
Click to Enlarge Image

SRP £2100 Save 10% Web Price: £1,890.00


Select a size:
Stock StatusDelivery
XS
Call for Alternatives
S
Call for Alternatives
M
In Stock3-5 Working Days
L
In Stock3-5 Working Days
XL
Call for Alternatives

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.


Description

The Marlin+ is an affordable e-mountain bike that combines the best features of Trek and Bosch to enhance off-road rides. With the reliable Bosch Active Line Plus mid-drive motor and Trek's renowned bike design, this e-MTB offers seamless pedal-assist for enjoyable extended rides on trails and in urban environments. The Marlin+ doesn’t skimp on performance and reliability, instead blending them together to deliver a premium e-MTB experience at a price that’s accessible to a wide range of riders.

The new Bosch Active Line Plus mid-drive motor delivers the same refined performance and reliability you’ve come to expect from Bosch. It puts out a mid-power 50 Nm of torque which draws less power from the battery and doesn’t overwhelm the rider. It’s also much quieter than high-powered e-bikes.

Bosch CompactTube 400 - A 400-watt-hour battery is fixed inside the downtube. The new battery is more energy dense, which means more power in a lighter, smaller package.

Bosch Purion 200 - The display and remote are now combined into one simple, beautiful piece. The full colour display provides all the information riders need in a compact package.

AUTO mode - In the spirit of keeping things simple and fun, an 'AUTO' mode provides adaptive motor support so riders can hit the trail without worrying about which mode they’re in. If you run into a hilly section or headwind, the motor will increase support accordingly so you can pay attention to the ride instead of fiddling with your bike.

Marlin+ is equipped with fast rolling 29’’ wheels with grippy 2.6’’ tyres for tons of traction and all-sort of off-road versatility. Extra-small and Small frame sizes are equipped with more proportional 27.5’’ wheels.

A 120 mm* travel front suspension fork flattens out roots, rocks and bumps in the trail. A dropper seat post makes it easy to get the saddle out of the way. Front and rear thru-axles add stiffness for precise handling, while a Universal Derailleur Hanger (UDH) makes service easy and future upgrades possible. (*100mm on XS)

The Marlin+ is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and a Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).


Specification

Year2024
FrameAlpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle. Curved Top tube on XS
ForkSR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel. 100mm travel on XS.
Rear ShockN/A
MotorBosch Active Line Plus, 50 Nm
Control SystemBosch Active Line Plus
BatteryBosch CompactTube 400 Wh
DisplayBosch Purion 200
ShiftersShimano U4000, 9-speed
Rear MechShimano CUES U4000
Front MechN/A
Bottom BracketBosch
ChainsetFSA CK-220, 165 mm length
CassetteShimano LINKGLIDE LG300, 11-46, 9-speed
ChainShimano LG500, 9/10/11-speed
BrakesTektro HD-M275 hydraulic disc
PedalsVP-536 nylon platform
WheelsetRim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve. Hubs: Bontrager alloy, sealed bearing, alloy axle
TyresSize: XS , S - Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40". Size: M , L , XL - Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"
HandlebarBontrager alloy, 31.8 mm, 15 mm rise
StemBontrager alloy, 31.8 mm, Blendr-compatible, 7-degree
GripsBontrager XR Endurance Comp, lock-on
SeatpostBontrager alloy, 31.6 mm, 12 mm offset
SaddleBontrager Arvada, steel rails, 138 mm width
HeadsetSemi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
ExtrasBosch standard 2A, 230V, smart system

We are an authorised Trek dealer and supply this Trek Marlin+ 6 Crimson with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here


Geometry

Geometry key
Frame SizeXSSMLXL
Seat Tube C-T mm A340370420450500
Horiz. Top Tube mm B551584620652682
Seat Angle C73.8°73.8°73.8°73.8°73.8°
Head Angle D66.5°66.5°66.5°66.5°66.5°
Head Tube mm E90100105115135
Chainstay mm F470470485485485
BB Offset mm G4545606060
BB Height mm H313313318318318
Standover mm I366398443454458
Wheelbase mm J11291166121812511284
Reach mm K390415440470495
Stack mm L563590626635653
Fork Rake mm M4242464646
Fork Trail mm N110110114114114
Stem Length mm3535505060
Bar Width mm720720750750750
Crank length mm165165165165165
Wheel size27.5"27.5"29"29"29"
