Description

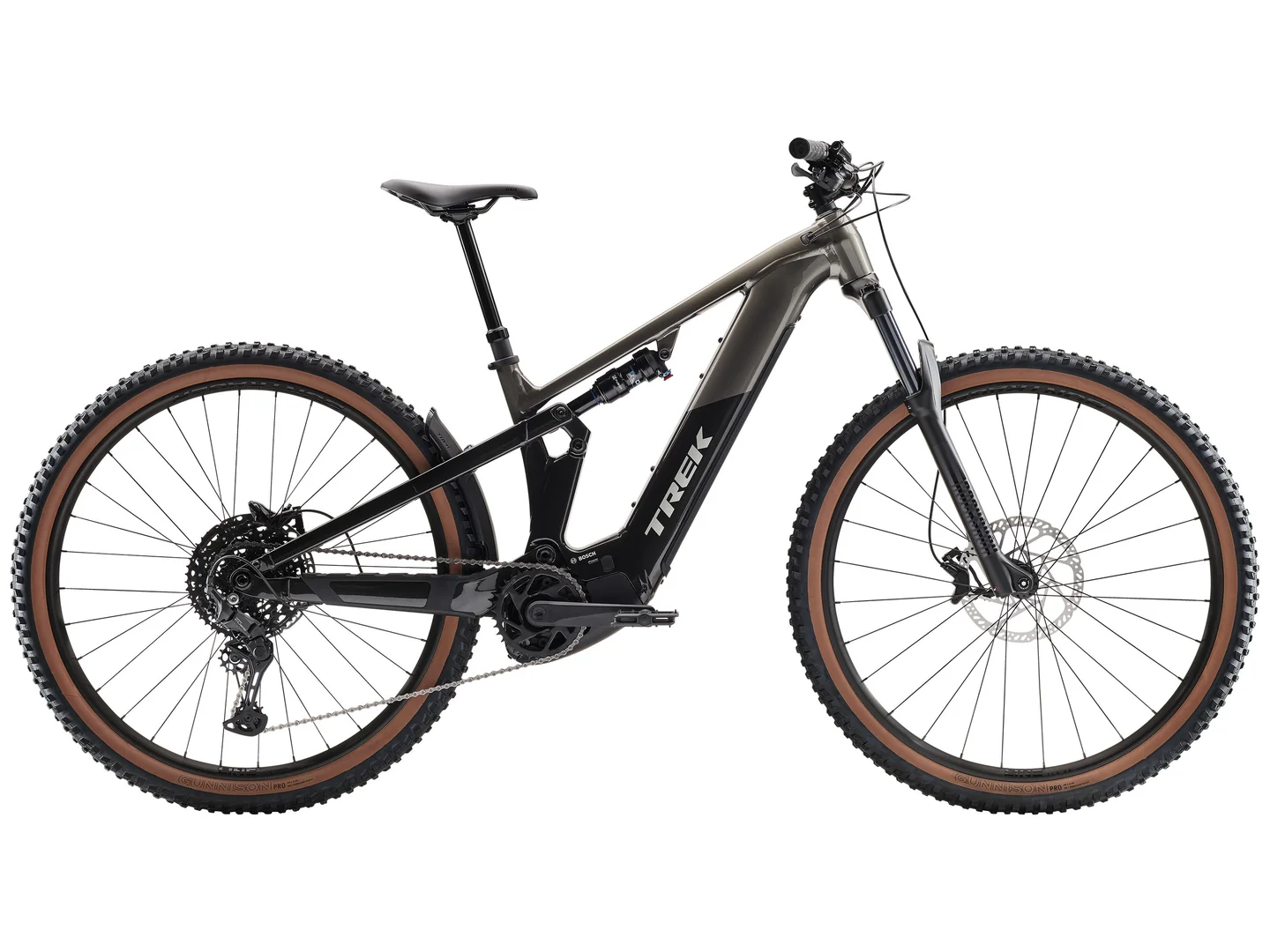

The Trek Powerfly FS+ 4 is a full-power full suspension electric mountain bike for taking on alpine adventures. It features 130 mm of front and 120 mm of rear trail-smoothing travel and a powerful Bosch Performance Line CX motor with a PowerMore compatible Removable Integrated Battery 2.0 (RIB 2.0) for getting far, far out there.
Powerfly FS+ 4 features an Alpha Platinum Aluminium frame with a Bosch Performance Line CX motor (85 Nm, 250 W), a 600 Wh PowerTube RIB 2.0 removable integrated battery and Purion 200 controller. 130 mm front and 120 mm rear suspension from a RockShox Recon Silver RL fork with Solo Air spring and Motion Control damper and a RockShox Deluxe Select shock. Tubeless-ready wheels with puncture-resistant 2.4? tyres, a 10-speed Shimano CUES drivetrain for clean shifts, a Bontrager Line dropper post and hydraulic disc brakes.
Explore the beyond with Powerfly FS+ 4. This capable and powerful e-MTB is ready to keep you soaring up the trail with a grin as big as you have on the downs. Its capable full-suspension set-up smooths rough tracks and boosts confidence while you venture to alpine yurts or just around town.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.
Specification
Year
Generation 5
Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Fork
Size: S - SR Suntour XCR 34, air spring, 2CR damper, hydraulic lockout, tapered steerer, 44 mm offset, Boost 110, 15 mm bolt-on thru axle, 100 mm travel
Size: M , L , XL - SR Suntour XCR 34, air spring, 2CR damper, hydraulic lockout, tapered steerer, 44 mm offset, Boost 110, 15 mm bolt-on thru axle, 120 mm travel
Rear Shock
N/A
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Control System
Bosch Purion 200
Battery
Bosch PowerTube 600 Wh, smart system
Display
Shifters
Shimano U6000, 10-speed
Rear Mech
Shimano CUES U6000 GS
Front Mech
Bottom Bracket
Chainset
FSA Bosch CK-220, 36T ring, 165 mm length
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain
Shimano LG500, 9/10/11-speed
Brakes
Tektro, CentreLock, 203 mm
Pedals
VP-536 nylon platform
Wheelset
Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Hub F: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub R: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Tyres
Size: S - Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , L , XL - Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"
Handlebar
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Stem
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Grips
Bontrager XR Endurance Comp, lock-on
Seatpost
Size: S - Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: M - Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size: L , XL - Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Saddle
Bontrager Commuter Comp
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
Extras
Charger - Bosch standard 2A, 230V, smart system
Warranty
We are an authorised Trek dealer and supply this Trek Powerfly FS+ 4 Gen 4 Mercury with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
S
5'1"-5'5"
1.55-1.65
0.74-0.78
M
5'5"-5'9"
1.65-1.76
0.79-0.83
L
5'10"-6'2"
1.77-1.88
0.84-0.89
XL
6'2"-6'5"
1.88-1.95
0.89-0.91
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
Geometry
