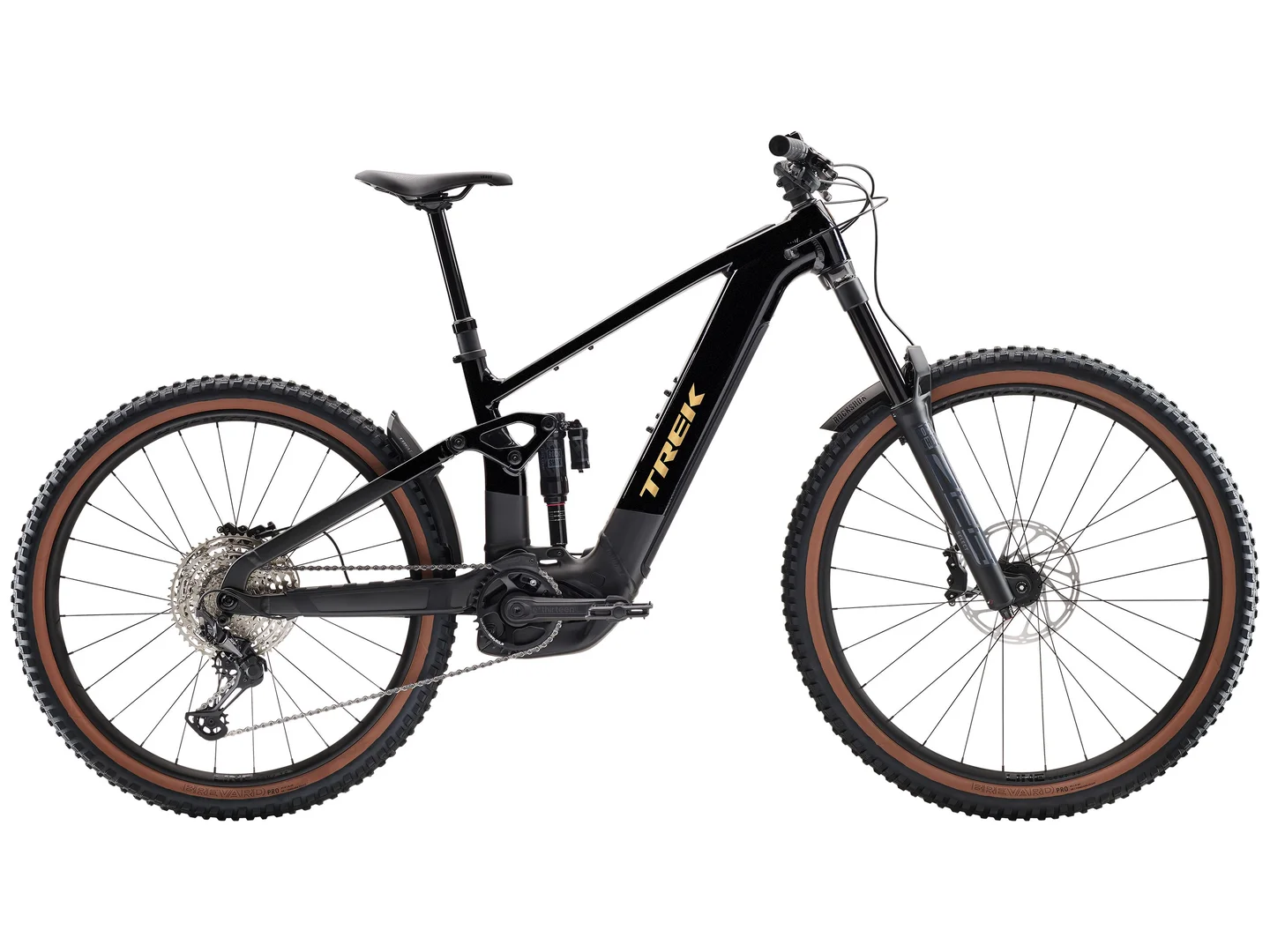

Trek Rail+ 8 Gen 5 Dark Star

Enduro Electric Bicycle

Web Price: £6,000.00

120 Podium Points™ with this bike - Up to 20% of this bike's value in Free Accessories

Select a size:

Stock StatusDelivery

In Supplier Warehouse7-11 Working Days

In Stock3-5 Working Days

In Supplier Warehouse7-11 Working Days

Collect In Store - To collect or view a bicycle in our North Hampshire store please arrange prior to travelling. You can arrange this by calling us on 0118 9821021 or by selecting the Click & Collect method at checkout.

Description

The Rail+ 8 is an alloy enduro e-bike that packs in what you want most for big adventures. It comes equipped with a Bosch Performance CX drive system with full power for crushing laps and big climbs while its massive battery takes you the distance. 160 mm of front and rear travel make Rail+ super capable in the rough and rowdy, and adjustable geometry lets you customise it for how and where you ride.

The Rail+ 8 features an Alpha Platinum Aluminium frame with a Bosch Performance CX system (85 Nm, 250 W) and 800 Wh Removable Integrated Battery 2.0. A 160 mm RockShox ZEB Select fork with DebonAir spring, Motion Control damper and lockout, and a RockShox Deluxe Select+ RT shock. All topped off with a Shimano XT and SLX blended 12-speed drivetrain, dropper post, Bontrager Line Comp 30 Tubeless Ready wheels and 4-piston Shimano hydraulic disc brakes.

The Rail + 8 is an enduro e-MTB dialled for big adventures. It packs in capable, adjustable geometry, a massive battery and a powerful motor to get you wherever you want to go. An upgraded drivetrain balances price and performance for a ride that's ready for anything.

Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.

Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).

Important Note: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.

Important Note: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.

Specification

Year	Generation 5
Frame	Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
Fork	RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel
Rear Shock	RockShox Super Deluxe Select+ RT, 205mm x 65mm
Motor	Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Control System	Bosch System Controller BRC3100, smart system
Battery	Bosch PowerTube 800 Wh, smart system
Display
Shifters	Shimano SLX M7100, 12-speed
Rear Mech	Shimano XT M8100, long cage
Front Mech
Bottom Bracket
Chainset
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano SLX M7100, 12-speed
Brakes	SRAM DB 8 4-piston hydraulic disc
Pedals	0
Wheelset	F: Size: S - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" Size: M, L, XL - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" R: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Tyres	Size: S, M, L, XL - Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" Size: M, L, XL - Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Handlebar	Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
Grips	Bontrager XR Trail Comp, nylon lock-on
Seatpost	Size: S - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length Size: M - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length Size: L, XL - Bontrager Line Dropper, 200 mm travel, internal routing, 34.9 mm, 515 mm length
Saddle	Bontrager Verse P3, steel rails
Headset
Extras	Charger - Bosch standard 4A, 230V, smart system

We are an authorised Trek dealer and supply this Trek Rail+ 8 Gen 5 Dark Star with a lifetime manufacturer's warranty (frame). Find More Detailed Warranty Information Here

Sizing

Size	Rider Height (ft)	Rider Height (m)	Rider Inseam (m)
S	5'1"-5'5"	1.55-1.65	0.74-0.78
M	5'5"-5'9"	1.65-1.76	0.79-0.83
L	5'10"-6'2"	1.77-1.88	0.84-0.89
XL	6'2"-6'5"	1.88-1.95	0.89-0.91

Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you.

Geometry

Frame Size	S High	S Low	M High	M Low	L High	L Low	XL High	XL Low
Seat Tube C-T mm A	380	380	410	410	435	435	470	470
Horiz. Top Tube mm B	562	563	591	592	639	639	670	670
Seat Angle C	77.9°	77.4°	77.7°	77.2°	77.5°	77.0°	77.4°	76.9°
Head Angle D	65.0°	64.5°	65.0°	64.5°	65.0°	64.5°	64.9°	64.5°
Head Tube mm E	100	100	100	100	120	120	145	145
Chainstay mm F	446	448	446	448	446	448	446	448
BB Offset mm G	12	18	18	24	18	24	17	24
BB Height mm H	344	338	345	338	345	338	345	338
Standover mm I	763	758	775	769	775	769	798	779
Wheelbase mm J	1201	1278	1229	1230	1277	1278	1313	1314
Reach mm K	435	430	455	450	495	490	520	515
Stack mm L	598	594	631	627	649	645	672	667
Fork Rake mm M	43	43	43	43	43	43	43	43
Fork Trail mm N	119	122	127	131	127	131	127	131
Wheel size	27.5"	27.5"	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
