Description

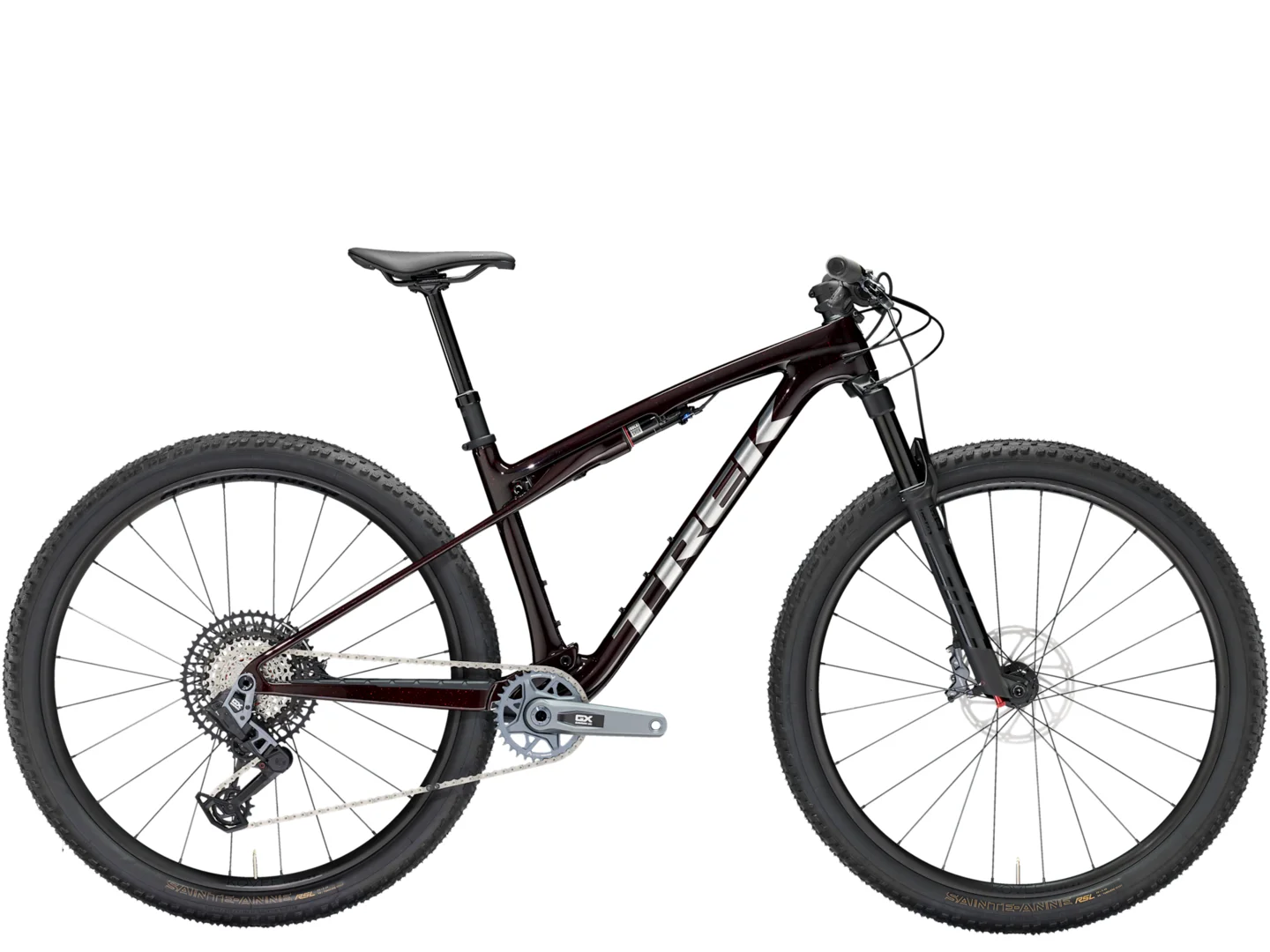

This Trek Supercaliber SL 9.7 GX AXS Red Smoke is available with our legendary Podium Point free accessory scheme.
The Trek Supercaliber SL 9.7 GX AXS is an ultra-light carbon XC mountain bike that's ready to lay down rubber on race day. Its SL Mountain Carbon frame is as light as it is meticulous, giving you all the stiffness you crave with none of the weight. XC courses get rowdier every year, so it's equipped with a 110 mm fork and 80 mm of IsoStrut rear suspension to smooth your roll without kicking pedalling efficiency to the wind. It's all topped off with a carbon cockpit and SRAM's wireless GX AXS Transmission.
If you're ready to race the Supercaliber SL 9.7 is right for you. It's a cross-country steed that sprints up climbs, hammers to the finish and feels good doing it thanks to 80 mm of IsoStrut rear suspension. From wheels to cockpit, supercaliber SL 9.7 features a meticulous carbon lay-up.
Supercaliber SL 9.7 features a super lightweight, SL OCLV Mountain Carbon frame with modern XC geometry. 110 mm of front suspension from a RockShox SID fork with DebonAir spring and Rush RL damper and 80 mm of IsoStrut rear suspension from a RockShox SIDLuxe shock - all with remote lockout. A fully wireless SRAM GX AXS 12-speed electronic transmission, Bontrager Kovee Comp 30 wheels, carbon Bontrager Line Pro carbon bars, Bontrager Line Dropper post and SRAM Level Bronze 4-piston hydraulic disc brakes.
The Supercaliber SL 9.7 GX AXS is bred for racing and comes from a pedigree of champions. You get Trek's World Cup winning XC full-suspension frame dripping with carbon components and a fully-wireless group set that keeps going after the cows come home.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
Generation 2
Frame
SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Fork
RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel
Rear Shock
Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Shifters
SRAM AXS POD
Rear Mech
SRAM GX Eagle AXS, T-Type
Front Mech
N/A
Bottom Bracket
SRAM DUB, 92 mm, PressFit
Chainset
SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line
Cassette
SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
Chain
SRAM GX Eagle, T-Type, 12-speed
Brakes
SRAM Level Bronze 4-piston hydraulic disc
Pedals
Not Supplied
Wheelset
F: Bontrager Kovee Comp 25, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle, 29", R: Bontrager Kovee Comp 25, Tubeless-Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"
Tyres
Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40"
Handlebar
Size: S - Bontrager Kovee Pro, OCLV Carbon, 35 mm, 5 mm rise, 720 mm width
Size: M, ML, L, XL - Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
Stem
Size: S, M - Bontrager Elite, 35 mm, 13-degree, 60 mm length
Size: ML - Bontrager Elite, 35 mm, 13-degree, 70 mm length
Size: L - Bontrager Elite, 35 mm, 13-degree, 80 mm length
Size: XL - Bontrager Elite, 35 mm, 13-degree, 90 mm length
Grips
Seatpost
Size: S - Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
Size: M, ML, L - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
Size: XL - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
Saddle
Verse Short Elite, hollow magnesium rails
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
Extras
Warranty
We are an authorised Trek dealer and supply this Trek Supercaliber SL 9.7 GX AXS Red Smoke with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
S
5'1"-5'5"
1.55-1.65
M
5'5"-5'9"
1.65-1.76
ML
5'8"-5'11"
1.73-1.80
L
5'10"-6'2"
1.77-1.88
XL
6'2"-6'5"
1.88-1.95
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
Geometry
